By Victron Energy

Victron Orion-Tr 48/12-9A (110W) DC-DC Converter

€76,87
€76,87
Tax included.

Clean DC voltage from the 48V on-board power supply: The Orion-Tr 48/12-9A reliably converts 48V to 12V – with galvanic isolation that safely separates the on-board power supply and consumers. With 110W output power and 9A output current, it supplies power-hungry 12V consumers even on boats with modern 48V propulsion systems.

Tip: Mount the device so that the screw terminals point downwards – only then is IP43 protection guaranteed. Connect the remote H/Off input directly to the engine's Run/Stop output to avoid accidental deep discharge of the 12V side.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-ORI481210110
Product group:
category:
electrical system
MaxpowerMAXPOWER Marine Cable, tinned, 1 x 25 mm², black
MAXPOWER Marinekabel

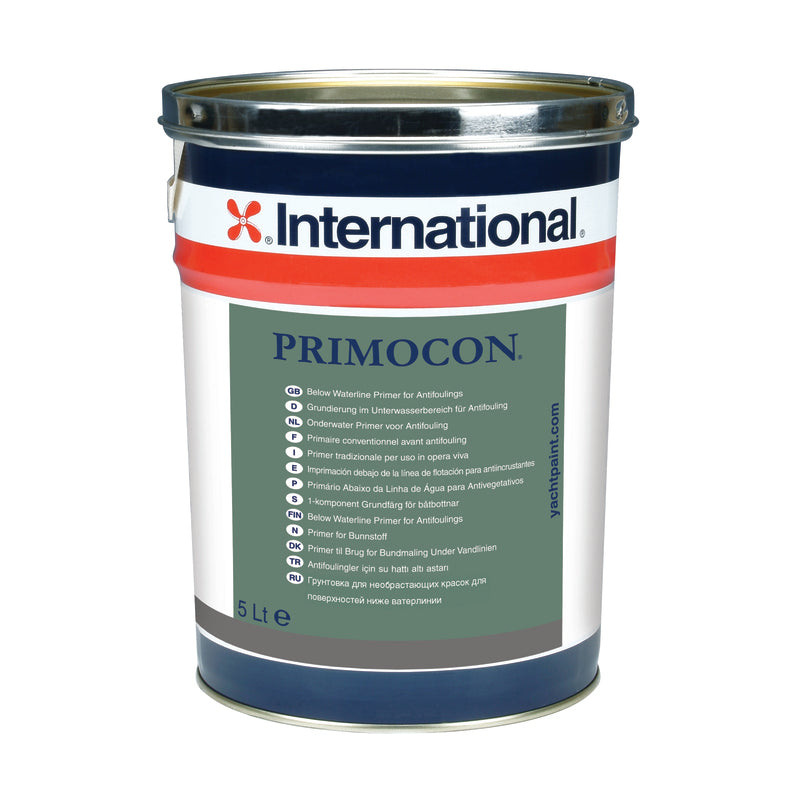

International Primocon Grau 5
International YachtfarbenInternational Primocon Grey 5.0 l
Victron Orion-Tr 48/12-9A (110W) DC-DC Umformer
€76,87
€76,87

  • Galvanic isolation reliably protects both on-board power levels from each other
  • Remote on/off switching – no high-current switch needed in the input wiring
  • Short-circuit proof and parallel connectable – unlimited units can be combined for higher output currents
  • Protection class IP43 with correct installation (screw terminals facing downwards)
  • Screw terminals can be connected without special tools – quick installation on board

Input voltage 48 V
Output voltage 12 V
Output current 9 A
Output power 110 W
Galvanic isolation Yes
Remote on/off Yes (H-off connector)
Short circuit proof Yes
Can be paralleled Yes, unlimited
Protection category IP43 (terminals down)
Input fuse Not with 48V model
Connection Screw terminals

Victron Energy

Gewicht (ca.): 0.58 kg
