By Victron Energy

Victron Orion-Tr 24/12-20 (240W) DC-DC Converter

€50,88
€50,88
Tax included.

Efficiency that pays off: The Orion-Tr 24/12-20 reliably converts your 24V on-board voltage to 12V – with an efficiency of over 95% thanks to synchronous rectification. Whether for supplying 12V consumers on a 24V vessel or for voltage adaptation in vehicle and marine operation: This converter delivers a solid 240W with minimal energy loss.

Tip: Mount the device with the screw terminals facing downwards to achieve the specified IP43 protection class and minimize the ingress of moisture.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-ORI241220200R
Product group:
category:
electrical system
HempelHempel's Light Primer Blue 0.75
Hempel's Light Primer Blue 0

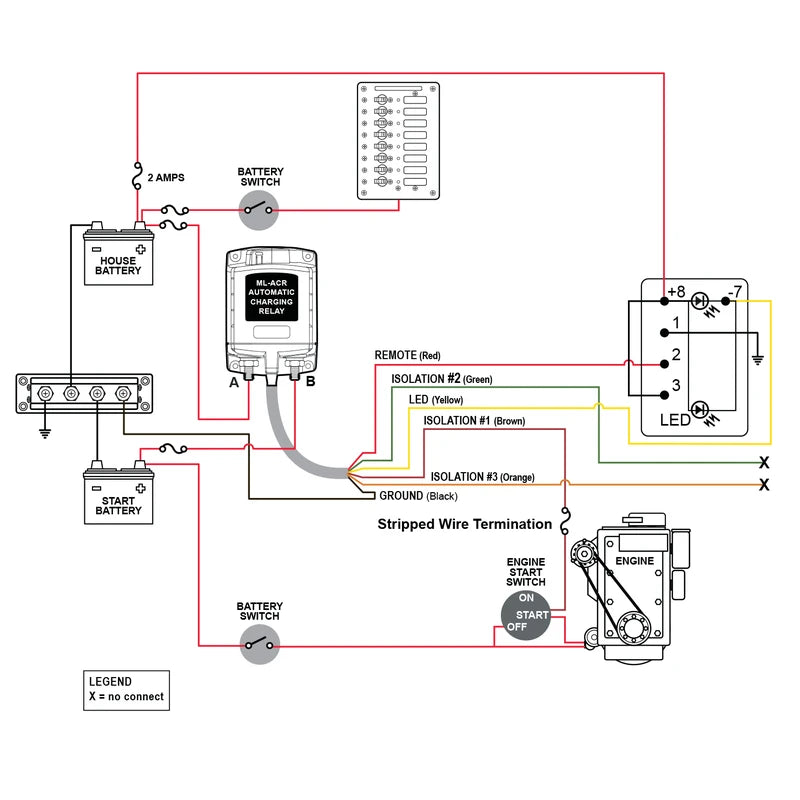

Blue Sea ML-ACR Automatisches Laderelais
Blue SeaBlue Sea ML-ACR Automatic Charging Relay
Victron Orion-Tr 24/12-20 (240W) DC-DC Umformer
€50,88
€50,88

  • Efficiency over 95% due to synchronous rectification – hardly any energy lost as heat
  • 240 W continuous power at an output current of 20 A to 12 V
  • Protection class IP43 with screw terminal side mounted downwards – suitable for damp installation locations
  • Screw terminal connection – no special tools required for installation
  • Compact, non-isolated design for easy integration into existing 24 V systems

Type DC-DC converter, non-isolated
Input voltage 24 V
Output voltage 12 V
Output current 20 A
Output power 240 W
Efficiency > 95 % (synchronous rectification)
Protection class IP43 (terminals mounted downwards)
Connection Screw terminals
Brand Victron Energy
Series Orion-Tr

Victron Energy

Gewicht (ca.): 0.32 kg

Herstellerinformationen gemäß GPSR:

VICTRON ENERGY B.V.
DE PAAL 35
1351 JG ALMERE
NETHERLANDS


Mail:
