By Victron Energy

Victron MultiPlus-II 48/6k5/100-50 GX

€1.313,64
€1.313,64
Tax included.

Power independent of the grid, reliably on board or grid-connected: The MultiPlus-II GX from Victron Energy combines a powerful inverter, battery charger, and device networking in a single enclosure. With 6,000 W continuous power and 48 V system voltage, it is the control center for demanding off-grid, hybrid, and grid-connected installations – controllable directly from your smartphone.

Tip: In parallel operation, several MultiPlus-II GX units can be connected to form a more powerful system. For a three-phase configuration, three units are required – plan your system design early with the Victron Configurator.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-PMP482606000
Product group:
category:
electrical system
PlastimoPLASTIMO Fenders with one eye, white, 18x48 cm
PLASTIMO Langender mit einem Auge

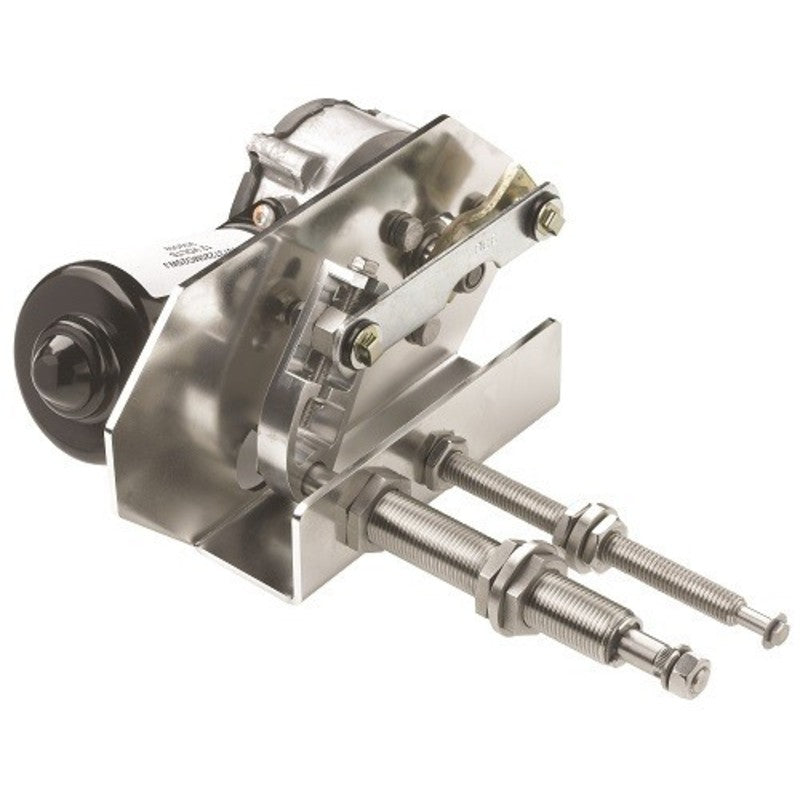

Vetus HD-Scheibenwischermotor
VetusVetus HD Wiper Motor, short shaft, 12V
Victron MultiPlus-II 48/6k5/100-50 GX
€1.313,64
€1.313,64

  • Inverter, charger and GX controller in one unit – saves space and simplifies wiring
  • 6,000 W continuous power at 48 V for energy-intensive consumers on board or on site
  • Integrated GX unit connects solar chargers, batteries and other Victron devices without an additional controller
  • Uninterruptible Power Supply (UPS) – seamless transfer in the event of a power failure
  • Parallel operation of multiple units possible – scalable in terms of power and charging capacity
  • Three-phase operation configurable – for professional installations and larger systems

Model designation MultiPlus-II 48/6000/100-50 GX
System voltage 48 V
Inverter power (continuous) 6,000 W
Charging output 100 A
AC output (pass-through) 50 A
Function Inverter / Charger / GX Controller
Operating modes Grid-tied, off-grid, hybrid
Expandability Parallel operation, three-phase configuration
Special features Integrated UPS function, load limit management, grid current supplementation by battery
Control Smartphone app, remote monitoring via Victron VRM
Communication GX Platform (networking with solar charge controllers, batteries, other Victron devices)

Victron Energy

Gewicht (ca.): 32.5 kg
