By Vetus

Vetus Flexible Coupling BULLFLEX8 for 1 1/2" Shaft

€949,05
€949,05
Tax included.

More driving comfort through reduced vibrations: The Vetus Bullflex 1 is a specially developed flexible coupling that efficiently dampens torsional vibrations between the engine and the propeller shaft. The super elastic, pre-tensioned rubber element ensures a play-free, silent connection – even at low speeds and changing engine loads.

Tip: Vetus supplies suitable mounting material for attachment to the gearbox separately – ask for the appropriate accessories when ordering. The centering ring can be removed if necessary to facilitate installation in confined spaces.
brand: Vetus
Availability: Low stock
SKU: OB-BB-BULFL0812
Product group:
category:
Engine technology

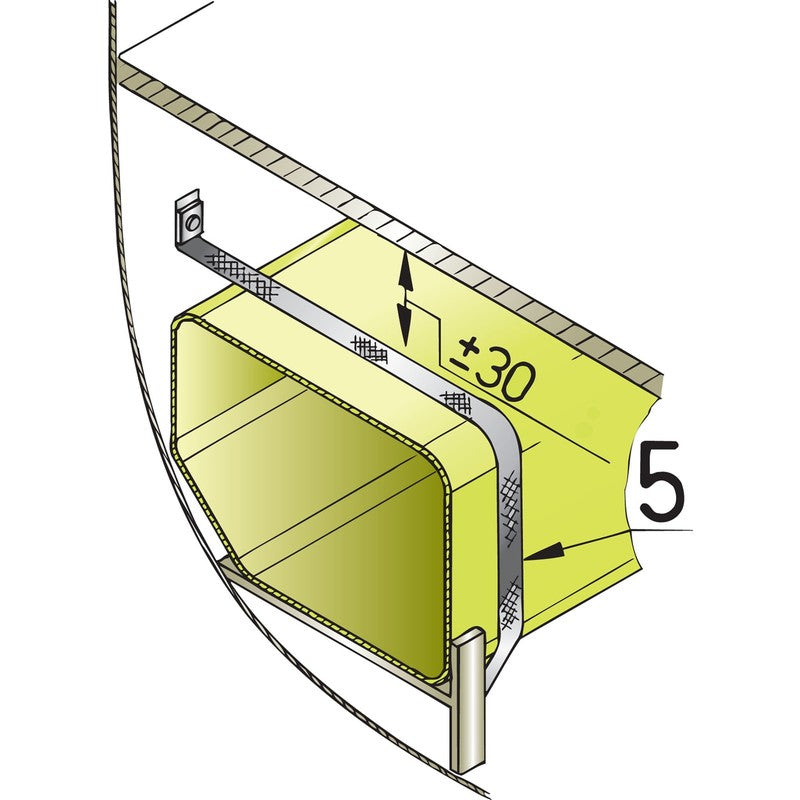

VetusVetus Water Tank Connection Kit
Ausrüstung
Plastimo Faltklapp-Anker verzinkt 8 KG
PlastimoPlastimo Folding Anchor Galvanized 8 KG
Vetus Flexible Kupplung BULLFLEX8 für 1 1/2' Welle
€949,05
€949,05

  • Super-elastic rubber element efficiently dampens torsional vibrations – for noticeably quieter engine operation
  • Backlash-free connection between engine and shaft ensures low-noise running
  • Axial and radial fail-safes protect the connection even in case of overload
  • Angular deviation up to 2° permissible – shaft remains centered even with deviation and in reverse operation
  • Built-in thrust bearing and no conical clamping hub for easy assembly and disassembly
  • 4" connection (models 1, 2 and 4) – suitable for common gearboxes

Model Bullflex 1
Shaft Diameter 25 mm
Connection Flange 4"
Permissible Angular Misalignment 2°
Thrust Protection axial and radial
Thrust Bearing built-in
Clamping Hub no tapered clamping hub
Suitable for V-drives No
Suitable Gearboxes (Model 32) Hurth, Velvet, TD, ZF, P.R.M.
Brand Vetus

Vetus

Gewicht (ca.): 10.74 kg
