By Vetus

Vetus Flexible Coupling BULLFLEX2 for 1" Shaft

€462,94
€462,94
Tax included.

More driving comfort through reduced vibrations: The Vetus Bullflex 1 is a specially developed flexible coupling that efficiently dampens torsional vibrations between the engine and the propeller shaft. The super-elastic, pre-tensioned rubber element ensures a play-free, silent connection – even at low speeds and varying engine loads.

Tip: Vetus supplies suitable mounting material for attachment to the gearbox separately – ask for the appropriate accessories when ordering. The centering ring can be removed if necessary to facilitate installation in confined spaces.
brand: Vetus
Availability: Low stock
SKU: OB-BB-BULFL021
Product group:
category:
Engine technology
VetusVetus Rubber Bearing with Plastic Housing 35mm
Vetus Gummilager mit Kunststoffmantel 35mm

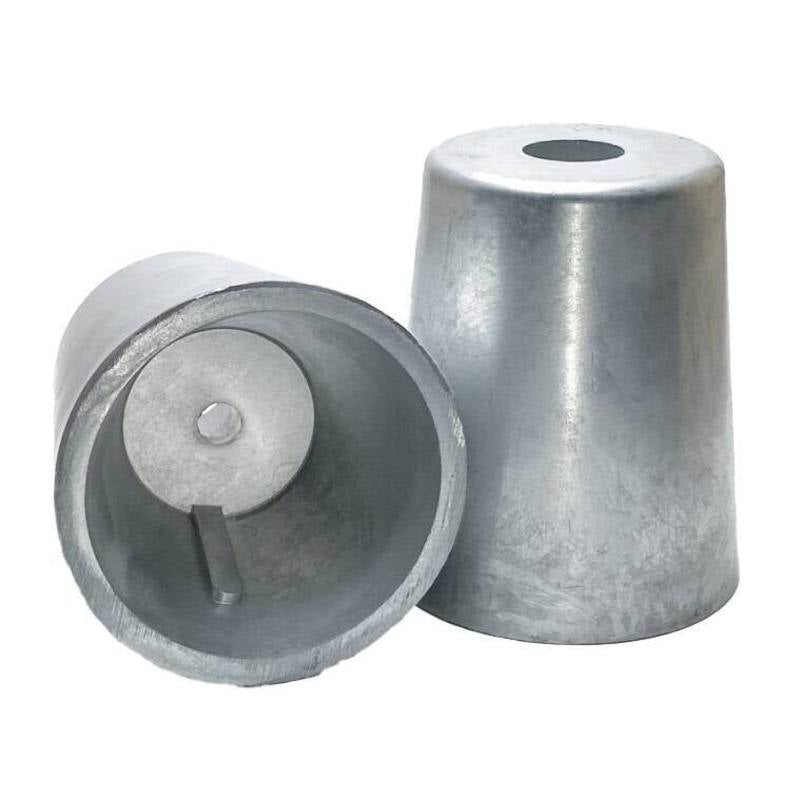

Crosseven Zink-Anode ø35 – verpackt
CrossevenCrosseven Zinc Anode ø35 – packaged
Vetus Flexible Kupplung BULLFLEX2 für 1' Welle
€462,94
€462,94

  • Super-elastic rubber element efficiently dampens torsional vibrations – for noticeably smoother engine operation
  • Backlash-free connection between engine and shaft ensures quiet running
  • Axial and radial fail-safe devices protect the connection even in case of overload
  • Angular misalignment of up to 2° permissible – shaft remains centered even with misalignment and in reverse operation
  • Built-in thrust bearing and no conical clamping hub for easy assembly and disassembly
  • 4" connection (models 1, 2 and 4) – suitable for common gearboxes

Model Bullflex 1
Shaft diameter 25 mm
Connection flange 4"
Permissible angular misalignment 2°
Fail-safe device axial and radial
Thrust bearing built-in
Clamping hub no tapered clamping hub
Suitable for V-drives No
Suitable gearboxes (Model 32) Hurth, Velvet, TD, ZF, P.R.M.
Brand Vetus

Vetus

Gewicht (ca.): 4.24 kg
