By Vetus

Vetus Bow Thruster Panel with Joystick, 12/24V

€278,10
€278,10
Tax included.

Precise control over your thruster – directly at the helm: The Vetus bow thruster panel with joystick (type BP) enables quick, intuitive operation of electric bow and stern thrusters. Thanks to its standard cutout of 52 mm diameter, it can be installed in almost any control panel and easily complements existing Vetus instruments.

Tip: The integrated output switch (max. 3 A) can be used to simultaneously switch another device – such as a navigation light or signal system – when activating the panel.
brand: Vetus
Availability: In stock
SKU: OB-BB-BPJR
Product group:
category:
Engine Technology,Equipment

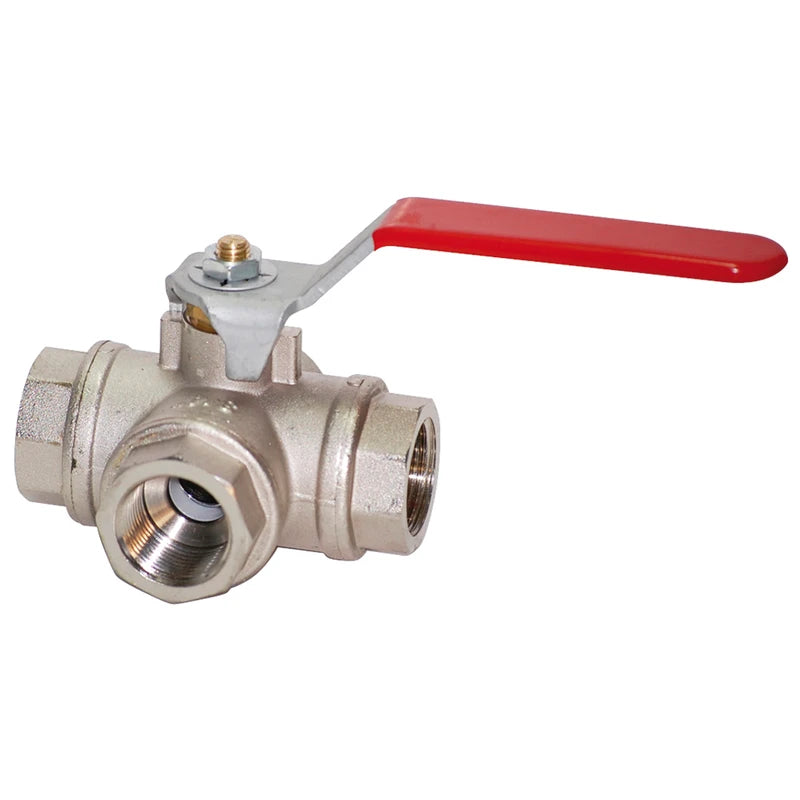

GuidiGuidi 3-Way Ball Valve 'L' - G 1 1/2''
Guidi 3-Wege-Kugelhahn 'L' - G 1''1/2

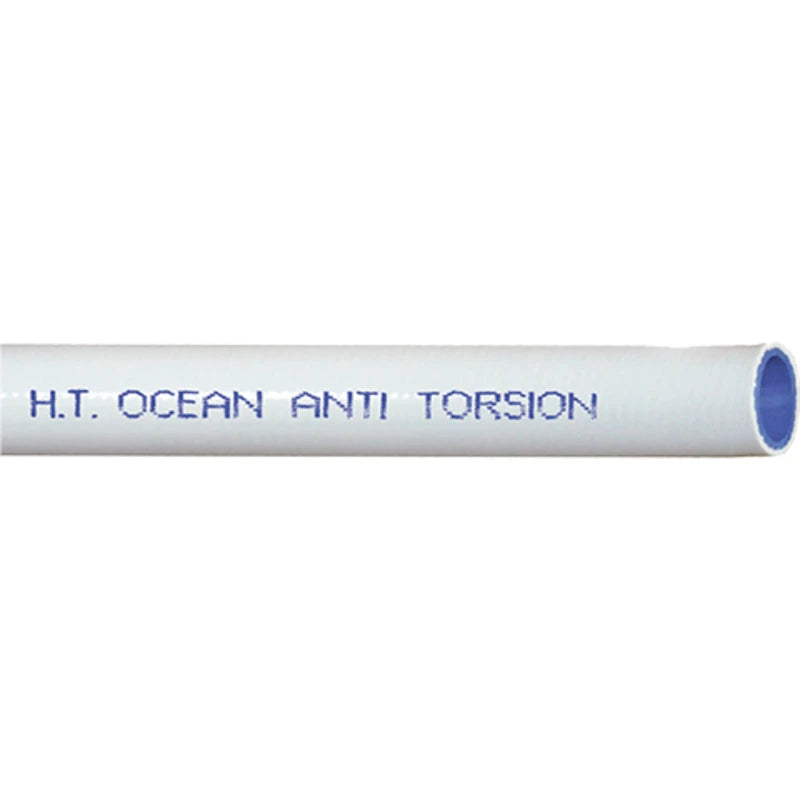

Crosseven Lavtub/Ocean - Ø 19mm
CrossevenCrosseven Lavtub/Ocean - Ø 19mm, 25 m length
Vetus Bugschraubenpanel mit Joystick
€278,10
€278,10

  • Joystick control for precise, direct control of the thruster
  • Fits in standard 52 mm diameter cutout – quick, uncomplicated installation
  • Time delay for thrust reversal protects the drive from abrupt load changes
  • Automatic safety shutdown after 30 minutes of inactivity or 2 minutes of continuous operation
  • Integrated child safety lock prevents unintentional activation
  • Waterproof and with integrated output switch (max. 3 A) for external devices

Type BPJR (round, with joystick)
Voltage 12/24 V
Front ring Ø 63 mm
Mounting cut-out Ø 52 mm
Mounting depth 90 mm
Output switch max. 3 A
Protection Waterproof
Thrust reversal With time delay
Automatic shutdown inactivity After 30 minutes
Automatic shutdown continuous operation After 2 minutes, reset after 5 seconds
Child lock Yes
Compatibility Retroactively compatible with other Vetus bow thruster panels and onboard instruments

Vetus

Gewicht (ca.): 0.3 kg
