By Vetus

Vetus Extraction Fan TWINLINEB, 12V, AD:102mm

€66,13
€66,13
Tax included.

Heat and fuel vapours out of the engine room – reliably and safely: The Vetus TWINLINEB is an ignition-protected extraction fan, specially developed for use on board. After the engine is switched off, it specifically dissipates heat and ensures that no fuel vapours accumulate in the engine room.

Tip: Vetus expressly recommends not to use the TWINLINEB as a fresh air supply for the running engine – it is designed exclusively for extraction.
brand: Vetus
Availability: Low stock
SKU: OB-BB-TWINLINEB
Product group:
category:
Equipment, Hatches & Vents

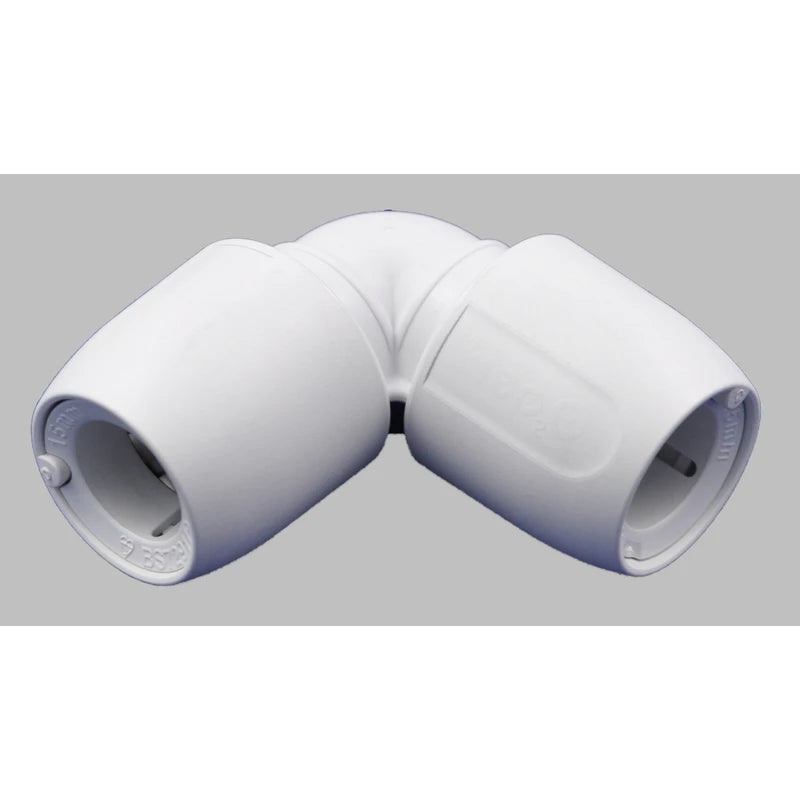

WebastoWebasto Hep2O® Elbow 90 15
Webasto Hep2O® Winkelstück 90 15

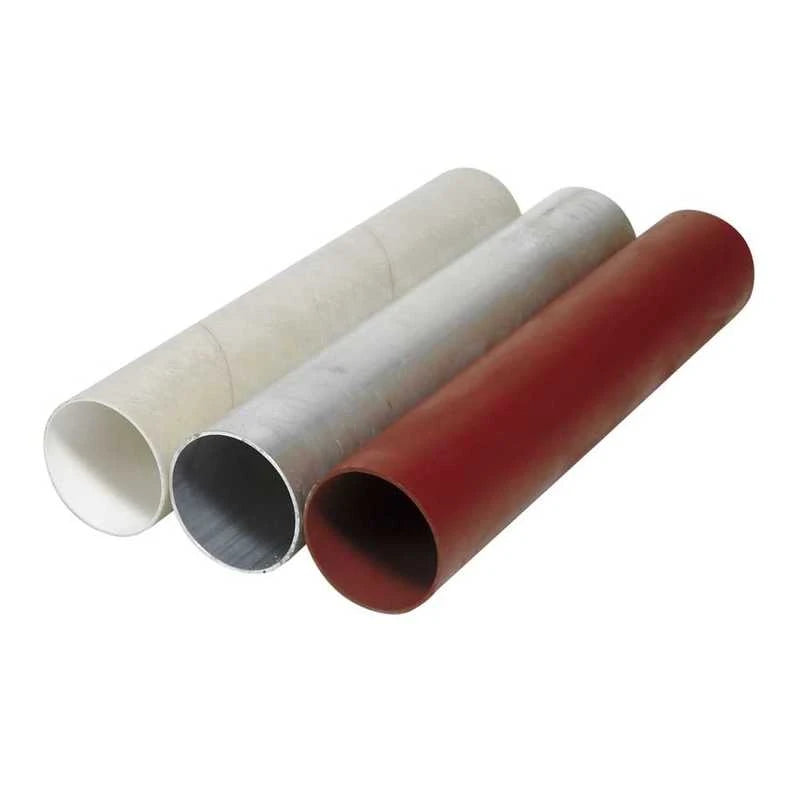

Vetus Polyester Rohr Ø 110mm
VetusVetus Polyester Pipe Ø 110mm, L 1000mm
Vetus Absaugventilator TWINLINEB
€66,13
€66,13

  • Ignition protected according to IP67 – safe to use, even with fuel vapors in the engine room
  • High air flow of 7 m³/min for effective heat and steam extraction
  • Meets the international ISO 9097 Marine Standard
  • Low power consumption: max. 2.8 A at 12 V
  • Connection compatible with Vetus Scirocco and Typhoon blower housings
  • Ø 102 mm duct connection for easy integration into existing ventilation systems

Type TWINLINEB
Function Extractor fan
Voltage 12 V
Power consumption max. 2.8 A
Air flow rate 7 m³/min
Generated air pressure 36 mm H₂O
Protection class IP67, ignition protected
Connection diameter Ø 102 mm
Standard ISO 9097 Marine
Compatible fan cowls Vetus Scirocco, Vetus Typhoon

Vetus

Gewicht (ca.): 0.64 kg
