By Veratron

Veratron VMH 70 TFT Multifunction Color Display

€1.069,91
€1.069,91
Tax included.

All on-board systems at a glance, immediately after switching on: The VMH 70 is Veratron's most powerful engine management display and processes large amounts of data without delay thanks to its real-time operating system. The 7-inch IPS touchscreen can be read in any light – and the robust aluminum housing reliably withstands everyday life on board.

Tip: Thanks to the integrated NMEA 2000 gateway, you can do without a separate gateway converter, saving both costs and installation space in the control cabinet.
brand: Veratron
Availability: Low stock
SKU: OB-BB-B00129201
Product group:
category:
Navigation & Audio
HempelHempel's Brilliant Gloss Cream 0.75
Hempel's Brilliant Gloss Cream 0

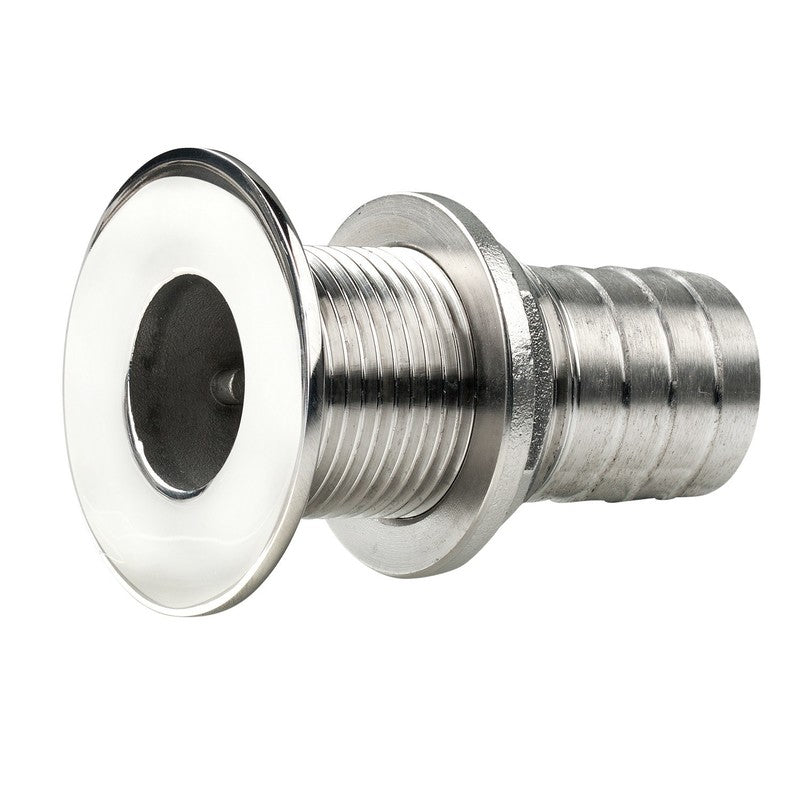

Vetus Borddurchlass G1/2''
VetusVetus Hull Fitting G1/2''
Veratron VMH 70 TFT Multifunktions-Farbdisplay
€1.069,91
€1.069,91

  • Controls up to four engines via NMEA 2000 or two engines via J1939/analog inputs – all on one display
  • Integrated NMEA 2000 gateway transmits sensor values and alarms to the MFD – no additional converter required
  • Two camera inputs for engine room monitoring and deck view when maneuvering
  • Automatic light sensor continuously adjusts brightness – fatigue-free reading in sun and at night
  • Freely groupable displays: engines, tanks, rudder, trim, navigation, weather, onboard systems, and more
  • Waterproof according to IPX7 – reliably protected even against splashes and temporary submersion

Display 7″ IPS TFT touchscreen, sunlight readable
Resolution 800 × 480 pixels
Housing Aluminum with PBT and mineral glass front
Rated voltage 12 / 24 V
Operating voltage 9 – 32 V
Power consumption ≤ 900 mA (normal operation) + 100 mA per EasyLink satellite gauge
External dimensions 220 × 128 mm
Mounting cutout 118 × 206 mm
Protection class IPX7 (with connected cables)
Operating temperature −25 to +70 °C
Digital inputs NMEA 2000, SAE J1939, video composite, alarm input
Analog inputs 6 × resistive, 2 × frequency, 3 × voltage, 2 × capacitive
Outputs NMEA 2000, EasyLink, alarm output
Engine display Up to 4 engines (NMEA 2000) or 2 engines (J1939/analog)
Camera inputs 2 × video composite
Certification NMEA 2000 certified
Integrated gateway NMEA 2000 (analog gateway built-in)

Veratron

Gewicht (ca.): 1.5 kg
