By Yacht Devices

UAB NMEA 2000 USB Gateway with SeaTalkNG connector

€246,05
€246,05
Tax included.

Get all the data from your NMEA 2000 network directly to your laptop: The YDNU-02 connects your onboard network bidirectionally with any Windows, Mac, or Linux computer – without any driver installation. Course, position, wind, depth, AIS, and more thus land in your navigation program, and conversely, you can also send commands – for example, to the autopilot – back into the network.

Tip: In AUTO mode, the device automatically detects which protocol your navigation program speaks and selects the optimal operating mode – ideal for initial setup or when switching between different apps.
brand: Yacht Devices
Availability: Low stock
SKU: OB-BB-YDNU-02RM
Product group:
category:
Navigation & Audio

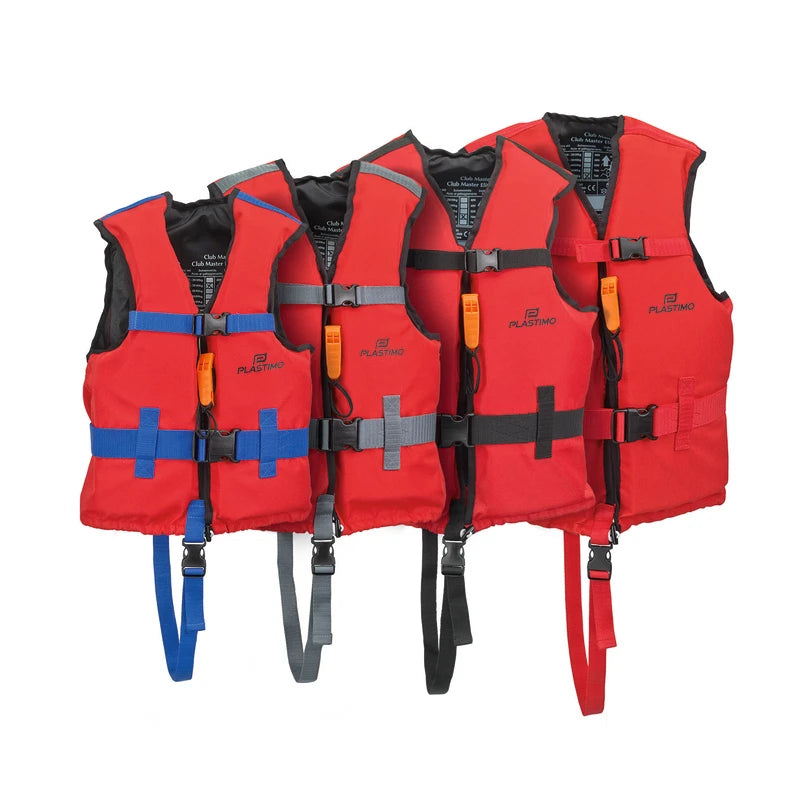

PlastimoPLASTIMO Buoyancy Aid Club Master Size L (red)
PLASTIMO Schwimmhilfe Club Master Gr. L (rot)

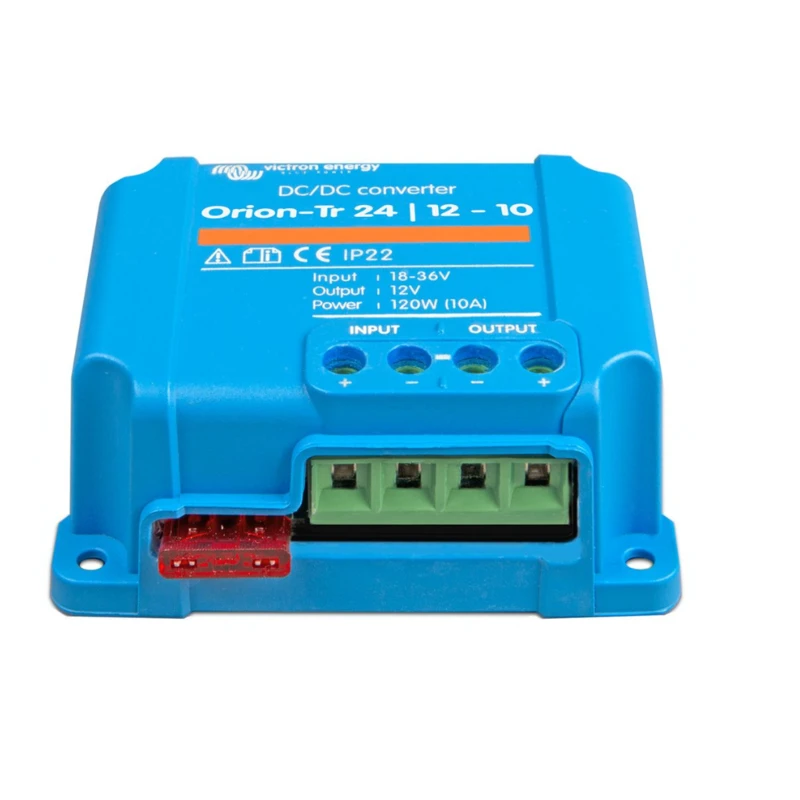

Victron Orion-Tr 24/12-10 (120W) DC-DC Umformer
Victron EnergyVictron Orion-Tr 24/12-10 (120W) DC-DC Converter
Navigation & Audio
€246,05
€246,05

  • Bi-directional gateway – reads data and sends it to the NMEA 2000 network
  • Four operating modes (0183, N2K, RAW, AUTO) for maximum software compatibility
  • Driver-free operation on Windows 10, macOS, and Linux
  • Galvanic isolation protects PC and network from each other
  • Compatible with OpenCPN, Expedition, Coastal Explorer, Polar View, and more
  • Supports AIS, routes/waypoints, autopilot control, and J1939 networks

Model YDNU-02
Interfaces NMEA 2000 (Micro-C male) / USB
Operating modes NMEA 0183, N2K (binary), RAW (text), AUTO
Operating systems Windows 10, macOS (Mac OS X), Linux
Driver installation Not required
Galvanic isolation Yes, between NMEA 2000 and USB
USB current consumption 35 mA (average)
NMEA 2000 current consumption 13 mA
Cable length (housing to connector) 450 mm
Housing length 54 mm
USB connector option IP67 waterproof (female) or non-waterproof (male)
NMEA 2000 connector option Micro-C male or Raymarine SeaTalk NG
J1939 compatibility Yes
Supported software (selection) OpenCPN, Expedition, Coastal Explorer, Polar View, OpenSkipper

Yacht Devices
