By Yacht Devices

UAB NMEA 2000 Tank Level Adapter, NMEA2000

€246,05
€246,05
Tax included.

Finally, all tank levels on the chartplotter or multifunction display: The YDTA-01 from Yacht Devices connects conventional resistance sensors directly to your NMEA 2000 network – without additional display instruments. Up to four tanks can be monitored simultaneously, whether diesel, fresh water or waste water.

Tip: If your tank sensor has a non-standard resistance range, simply create an individual calibration curve as a text file and load it via a micro-SD card – this way the adapter fits almost any sensor.
brand: Yacht Devices
Availability: Low stock
SKU: OB-BB-YDTA-04N
Product group:
category:
Navigation & Audio

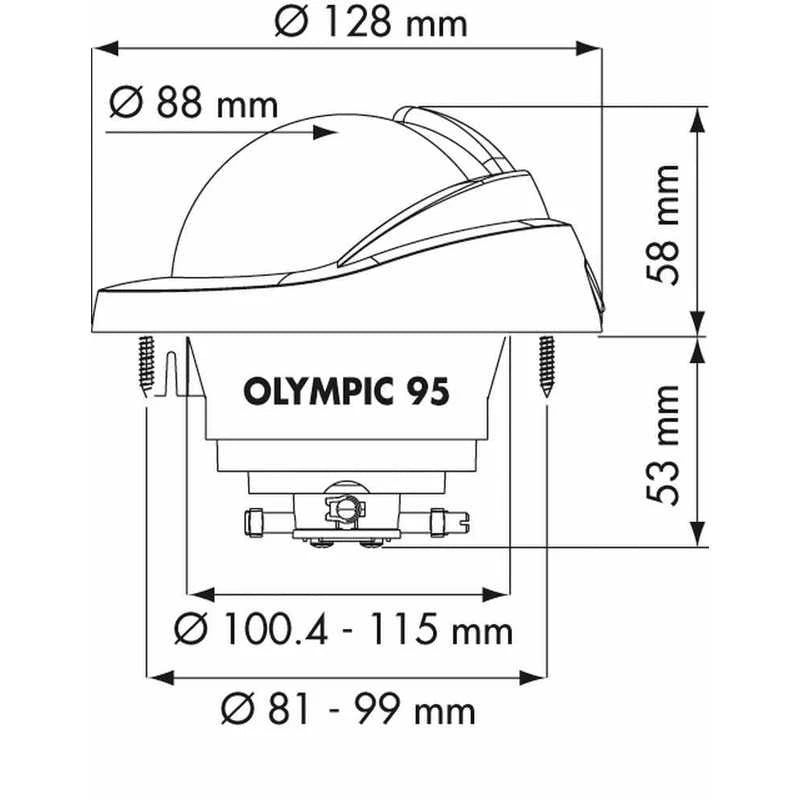

PlastimoPLASTIMO COMPASS OLYMPIC 95 WHITE CONICAL CARD
PLASTIMO KOMPASS OLYMPIC 95 WEISS KON. ROSE
Victron Active GPS Antenne
Victron EnergyVictron Active GPS Antenna
UAB NMEA 2000 Tank Level Adapter
€246,05
€246,05

  • Up to 4 tank sensors can be connected simultaneously – all fill levels at a glance
  • Supports European, American, and Japanese sensor standards (0–400 Ω)
  • Galvanic isolation between NMEA 2000 network and tank sensor – protects the on-board electrical system
  • Parallel operation alongside existing instruments possible – no modification required
  • Individual calibration via Micro-SD card for any tank shape
  • NMEA certified and power-saving (45 mA from the NMEA 2000 network)

Model YDTA-01
Connection NMEA 2000
Number of Tank Senders Up to 4
Supported Tank Types Diesel, Gasoline, Oil, Fresh Water, Waste Water (Sewage), Livewell/Baitwell (7 types according to NMEA 2000)
Sender Resistance Ranges EU: 10–180 Ω / US: 240–33 Ω / JP: 0–310 Ω / Other: max. 400 Ω
Galvanic Isolation Yes, between NMEA 2000 and tank sender
Calibration & Updates Via Micro SD card (text file with calibration curve)
Data Logging Yes, with Micro SD card inserted
Power Consumption 45 mA (from NMEA 2000 network, average)
Cable Length 800 mm
Adapter Length (without connector) 54 mm
Certification NMEA (National Marine Electronics Association)
Parallel Operation Possible (also with Volvo Penta MDI D1/D2)

Yacht Devices
