By Yacht Devices

UAB NMEA 2000 Battery Monitor, NMEA2000

€189,05
€189,05
Tax included.

Keep an eye on the status of your on-board power supply at all times: The Yacht Devices Battery Monitor measures current and voltage, calculates consumption and state of charge, and transmits all data directly to the NMEA 2000® network. This way, you can see on any compatible plotter or MFD how your batteries are doing – and you'll be warned in good time before the state of charge becomes critical.

Tip: Use a shunt with a nominal voltage drop of 75 mV and the appropriate nominal current for your circuit. The shunt should be installed as close as possible to the battery and in the negative path so that all consumers and chargers are correctly detected.
brand: Yacht Devices
Availability: Low stock
SKU: OB-BB-YDBM-01N
Product group:
category:
Navigation & Audio
BEPBEP Ignition Switch Off/Ignition&Accessory/Start

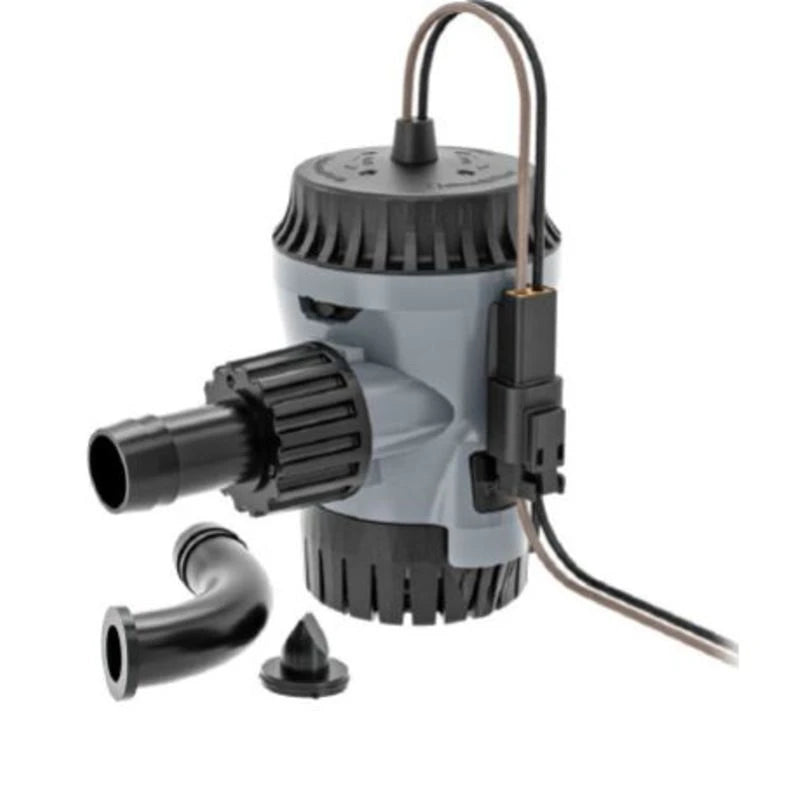

Johnson Bilgepumpe AQUA VOID 500 GPH 12V
Johnson PumpJohnson Bilge Pump AQUA VOID 500 GPH 12V
UAB NMEA 2000 Batterie Monitor
€189,05
€189,05

  • Measures current and voltage and calculates state of charge and consumption – all live on the NMEA 2000® network
  • Early warning of deep discharge – triggers digital or acoustic alarms before the battery is at risk
  • Automation possible – can switch off devices or switch on a charger via digital switching channels
  • Optional temperature measurement – integrates an NMEA 2000® thermometer for even more accurate state of charge determination
  • Flexibly configurable – set battery capacity and chemistry yourself, updates via Micro-SD card or network
  • Compatible with almost all DC sources and consumers (alternator, solar, wind generator, anchor winch, etc.)

Interface NMEA 2000®
Supply Voltage 7–16 V
Current Draw (NMEA 2000® Interface) 50 mA
External Shunt Required Yes, 5–2,500 A, Rated Voltage Drop 75 mV
Current Measurement Accuracy ± 0.5% (refers to the monitor; shunt accuracy typically ± 0.25–0.5% / 20–25 ppm/°C)
Voltage Measurement Accuracy 0.1 V
Max. Permissible DC Input Voltage 40 V
Galvanic Isolation NMEA 2000® / Input 2,500 V RMS
Configuration & Updates Micro-SD card or NMEA 2000® network
Temperature Measurement Optional via external NMEA 2000® thermometer
Digital Switching PGN 127501 / 127502 supported
Alarm Digital alarm and audible alarm (with compatible alarm button in the network)
