By Ocean Birds

TriScan Clamp HAS44 059-083mm

€3,86
€3,86
Tax included.

Reliable even where saltwater, vibration, and weather challenge the material: The TriScan HAS28 is a high-quality hose clamp made of stainless steel for demanding use on board. With its perforated band and recessed hexagonal screw, it sits securely and can be tightened even in tight installation situations.

Tip: Tighten the screw to the recommended torque of 4.5 Nm (40 in-lbs) with a calibrated torque wrench – this prevents overtightening and simultaneously ensures optimal sealing force.
brand: Ocean Birds
Availability: In stock
SKU: OB-BB-2620044706
Product group:
category:
Engine technology

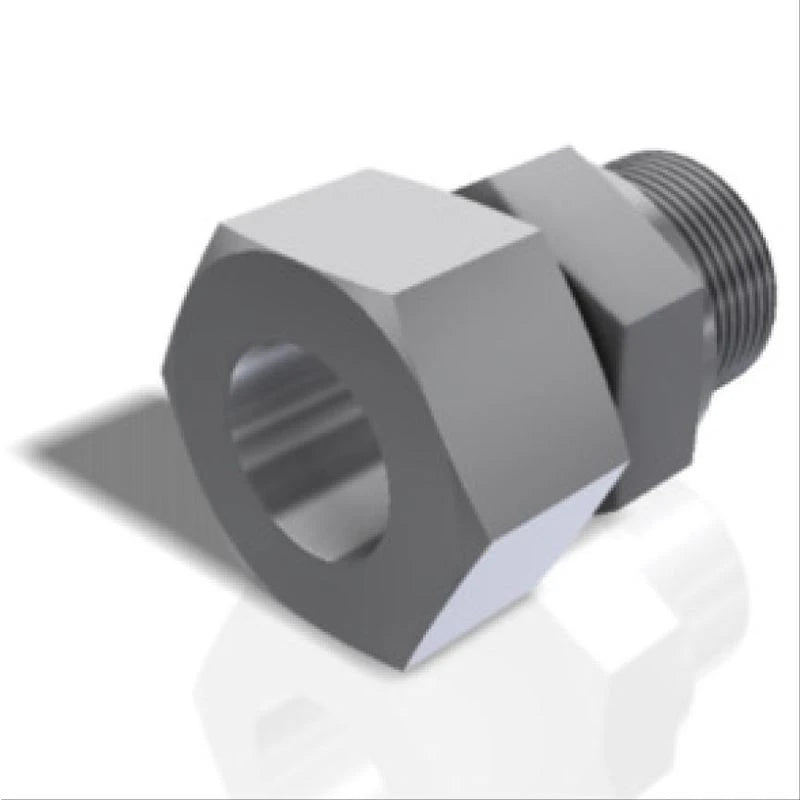

Separ FilterSepar straight screw connection M16x1.5 for 8mm tube
Separ gerade Verschraubung M16x1

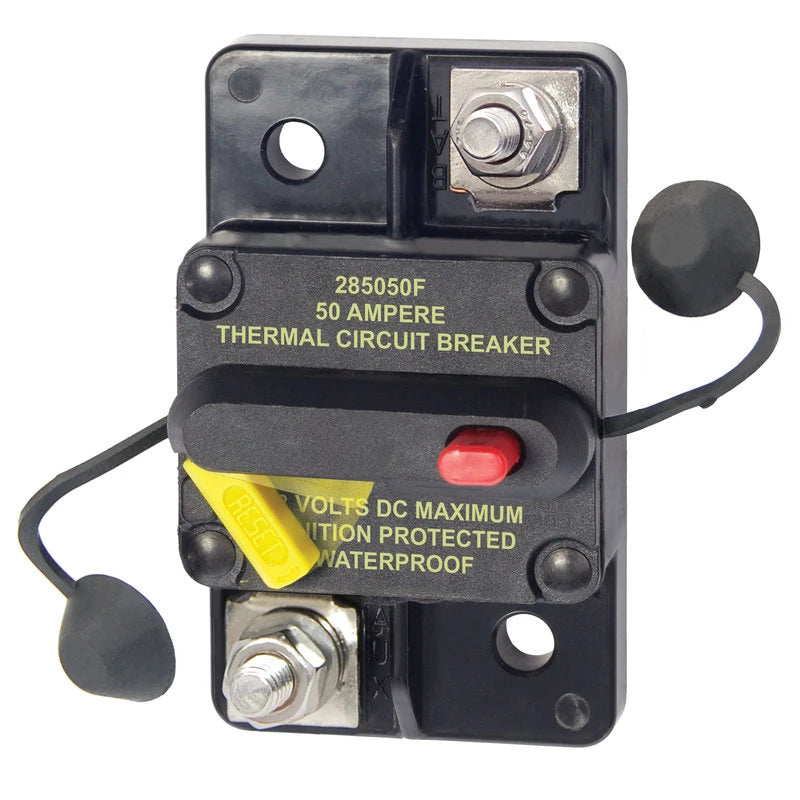

Blue Sea Leistungsschalter der Serie 285 - 50A
Blue SeaBlue Sea 285 Series Circuit Breaker - 50A
TriScan Schelle HAS44 059-083mm
€3,86
€3,86

  • Made entirely from stainless steel (DIN 1.4310 / AISI 301) – corrosion-resistant even in saltwater applications
  • Perforated band (12.7 mm width) for even clamping force over the entire circumference
  • Stainless steel hex screw with notch (5/16" / 8 mm, DIN 1.4303 / AISI 305) for secure tightening
  • Clamping range 33–57 mm – fits a variety of common hose sizes on board
  • Recommended tightening torque 4.5 Nm – defined tightening without overtightening

Clamping Range 33–57 mm
Band Material Stainless Steel DIN 1.4310 / AISI 301, perforated
Band Width 12.7 mm
Housing Material Stainless Steel DIN 1.4310 / AISI 301
Screw Material Stainless Steel DIN 1.4303 / AISI 305
Screw Type Hex Head Slotted Screw
Screw Head Size 5/16" / 8 mm
Tightening Torque (approx.) 4.5 Nm / 40 in-lbs

Ocean Birds

Gewicht (ca.): 0.38 kg
