By Ocean Birds

TriScan Clamp HAS188 260-311mm

€11,76
€11,76
Tax included.

It also holds reliably where saltwater, vibration, and weather affect the material: The TriScan HAS28 is a high-quality hose clamp made of stainless steel for demanding use on board. With its perforated band and countersunk hex screw, it sits securely and can be tightened even in confined installation situations.

Tip: Tighten the screw with a calibrated torque wrench to the target value of 4.5 Nm (40 in-lbs) – this prevents overtightening and at the same time ensures optimal sealing force.
brand: Ocean Birds
Availability: Low stock
SKU: OB-BB-2620188106
Product group:
category:
Engine technology

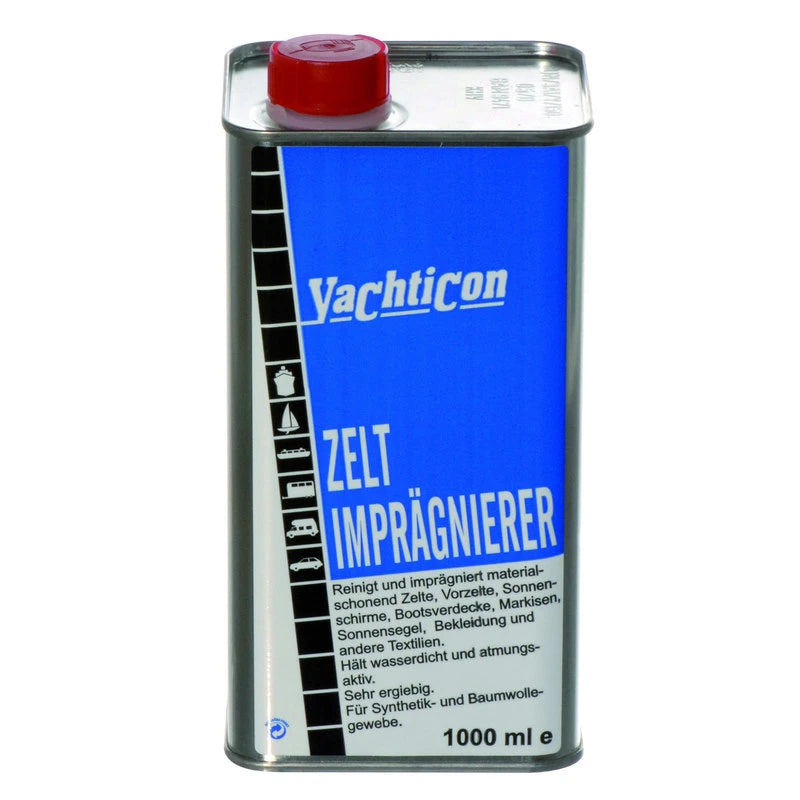

YachticonYachticon Tent Waterproofer 1 Liter
Yachticon Zelt Imprägnierer 1 Liter

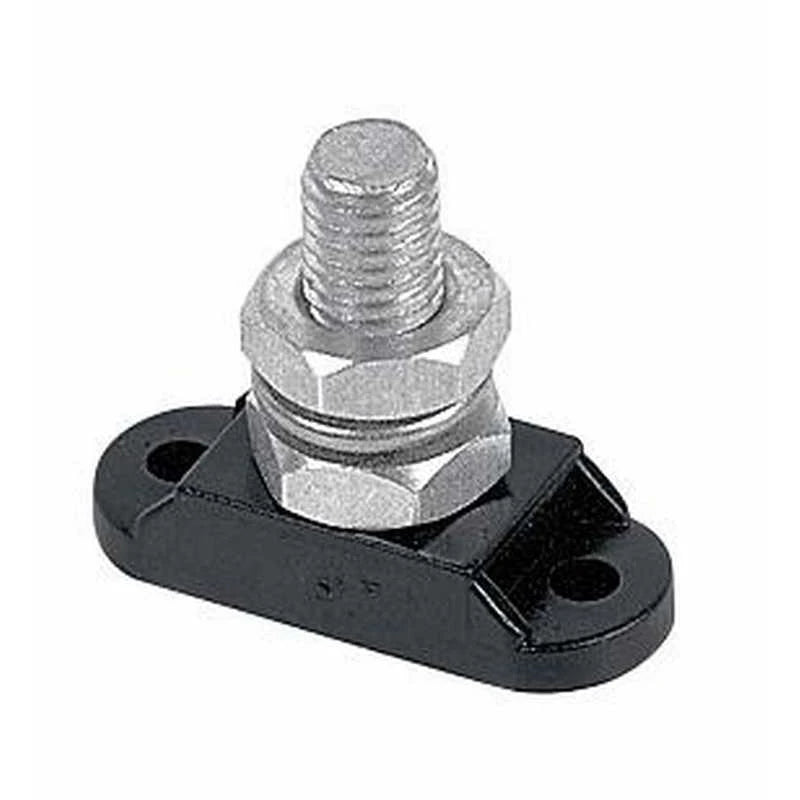

BEP isolierte Bolzen einzeln 1x10mm negativ schwar
BEPBEP insulated bolts individual 1x10mm negative black
TriScan Schelle HAS188 260-311mm
€11,76
€11,76

  • Made entirely from stainless steel (DIN 1.4310 / AISI 301) – corrosion-resistant even in saltwater applications
  • Perforated band (width 12.7 mm) for uniform clamping force over the entire circumference
  • Stainless hexagonal screw with notch (5/16" / 8 mm, DIN 1.4303 / AISI 305) for secure tightening
  • Clamping range 33–57 mm – fits a variety of common hose sizes on board
  • Reference tightening torque 4.5 Nm – defined tightening without overtightening

Clamping Range 33–57 mm
Band Material Stainless Steel DIN 1.4310 / AISI 301, perforated
Band Width 12.7 mm
Housing Material Stainless Steel DIN 1.4310 / AISI 301
Screw Material Stainless Steel DIN 1.4303 / AISI 305
Screw Type Hex Head Slotted Screw
Screw Head Size 5/16" / 8 mm
Tightening Torque (approx.) 4.5 Nm / 40 in-lbs

Ocean Birds

Gewicht (ca.): 0.07 kg
