Separate straight screw connection M22x1.5 for 10mm pipe

€13,34
€13,34
Tax included.

The reliable connection between your Separ fuel filter and the onboard piping: This straight compression fitting made of galvanized steel securely adapts the filter to 10mm pipes – tight, form-fitting, and without soldering or welding.

When tightening the union nut, always counter-hold the fitting with a second wrench to prevent the O-ring seat in the filter from twisting or being damaged.
brand: Ocean Birds
Availability: Low stock
SKU: OB-BB-062073
Product group:
category:
Engine technology

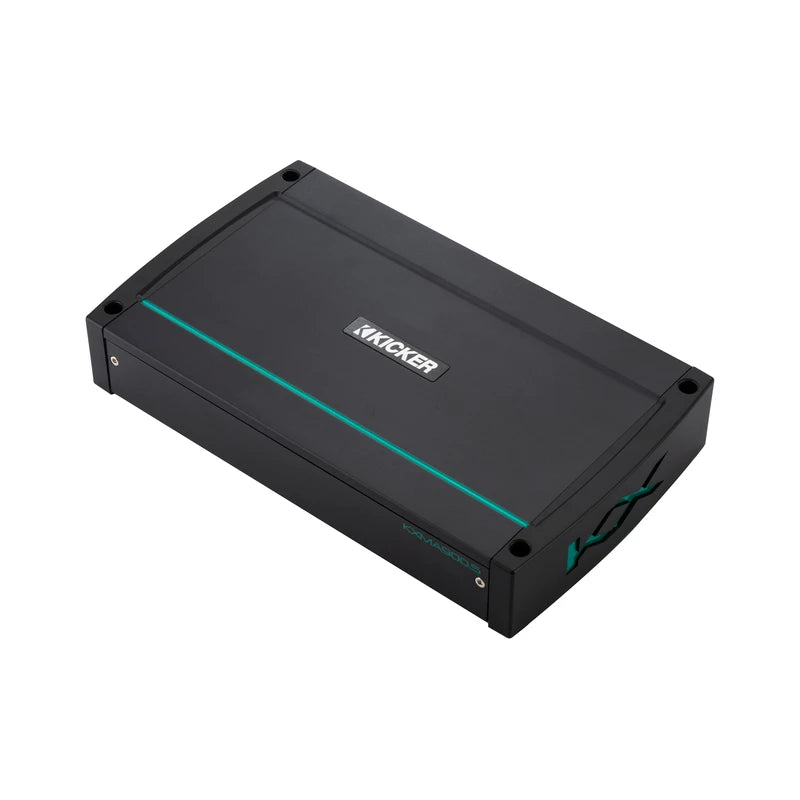

Kicker Marine AudioKICKER Marine Audio 900 W 5-Channel System Amplifier
KICKER Marine Audio 900 W 5-Kanal-Systemverstärker
International Cruiser 200 Blau 2
International YachtfarbenInternational Cruiser 200 Blue 2.5 L
Separ gerade Verschraubung M22x1
€13,34
€13,34

  • Cutting ring technology presses itself positively into the pipe when tightened – permanently tight connection without additional sealants
  • O-ring pre-assembled – immediately seals the filter interface
  • Galvanized steel – robust and corrosion-resistant for use in fuel systems
  • Suitable for Separ filters from Lössing Filterproduktion GmbH
  • Alternatively combinable with hose nipples (item 062086 or 062097)

Manufacturer/Brand Separ (Lössing Filterproduktion GmbH)
Type Straight screw connection with cutting ring
Threaded connection M22 × 1.5
Pipe outer diameter 10 mm
Material Steel, galvanized
Sealing filter side Pre-assembled O-ring
Sealing pipe side Cutting ring (positive fit)
Application Fuel filter piping systems
Compatible hose nipples 062086 / 062097
Former item number 32073

Ocean Birds

Gewicht (ca.): 0.02 kg
