By Separ Filter

Separ straight screw connection M16x1.5 for 10mm pipe

€13,11
€13,11
Tax included.

The perfect connection between your Separ fuel filter and the onboard piping: This straight compression fitting made of galvanized steel adapts Separ filters securely and tightly to 10 mm piping systems. Once tightened, the cutting ring presses form-fittingly into the pipe - a permanently tight connection without additional sealant.

When tightening the union nut, always counter the fitting with a second wrench to prevent the already mounted filter connection from turning and to ensure the O-ring maintains its sealing effect.
brand: Separ Filter
Availability: Low stock
SKU: OB-BB-063345
Product group:
category:
Engine technology
Johnson PumpJohnson F2P10-19, 24V
Johnson Pump

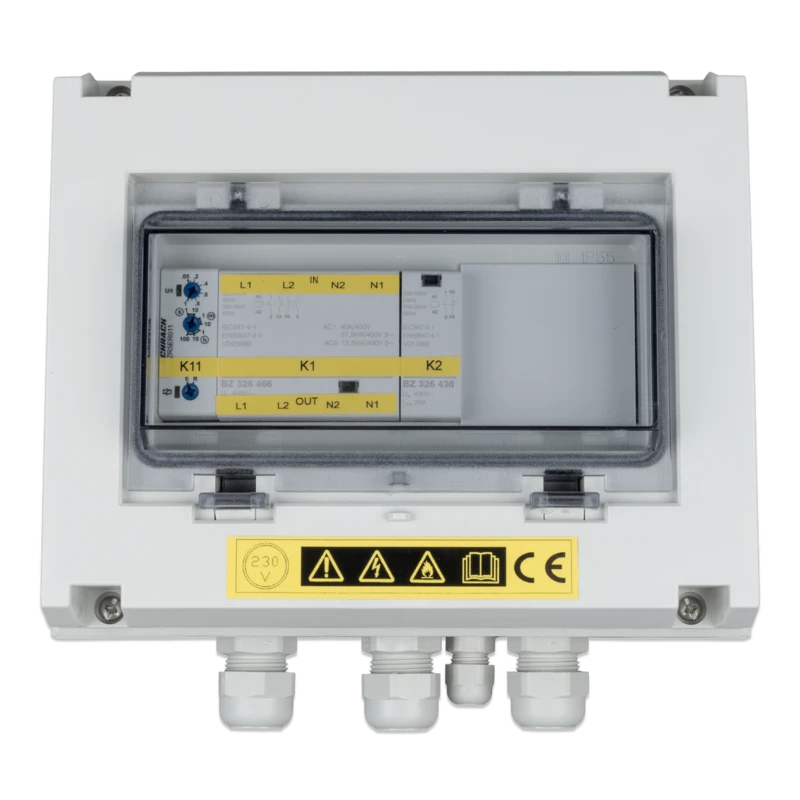

Victron VE Transferschalter 10KVA
Victron EnergyVictron VE Transfer Switch 10kVA, 1ph, 200-250V
Separ gerade Verschraubung M16x1
€13,11
€13,11

  • Cutting ring technology ensures a form-fit, permanently sealed connection with the pipe
  • Pre-assembled O-ring reliably seals the filter connection
  • Made of galvanized steel – corrosion-resistant for use in the engine compartment
  • Direct straight screw-in into the Separ filter – easy three-step assembly
  • Alternatively combinable with hose nipple (Art. No. 062086 or 062098)

Manufacturer Separ Filter / Lössing Filterproduktion GmbH
Design Straight screw connection (cutting ring fitting)
Material Steel, galvanized
Threaded connection M16×1.5
Outside tube diameter 10 mm
Filter side seal Pre-assembled O-ring
Tube side seal Cutting ring (positive locking)
Compatible hose nipples 062086 / 062098

Separ Filter

Gewicht (ca.): 0.05 kg
