By Ocean Birds

Duct fan RV 178-12 V=

€267,93
€267,93
Tax included.

Wherever air needs to be moved reliably and permanently: The RV 178 duct fan is made entirely of aluminum and is specially designed for use in marine environments. With a volume flow of 550 m³ per hour, it provides powerful ventilation in bilges, engine rooms or cable ducts - and all this with a mere 12 V on-board voltage.

Tip: When installing, ensure a draft-free, straight duct run - this will make the fan work more efficiently and significantly quieter.
brand: Ocean Birds
Availability: In stock
SKU: OB-BB-VENT17812Z
Product group:
category:
equipment

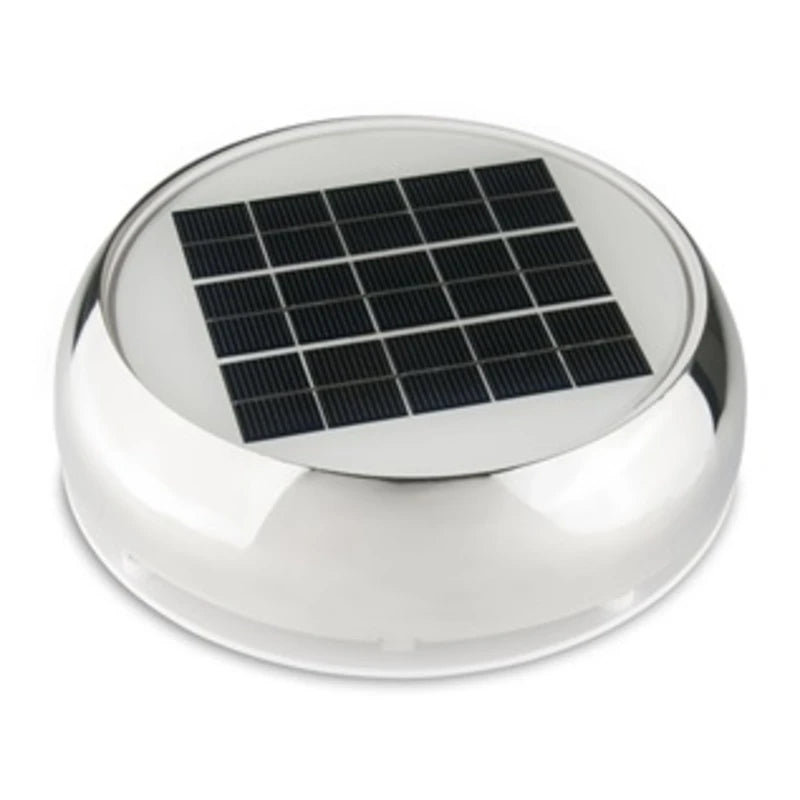

MarincoMarinco Solar Vent Type: Day and Night 100mm = 4"
Marinco Solarlüfter Type: Day and Night 100mm = 4'

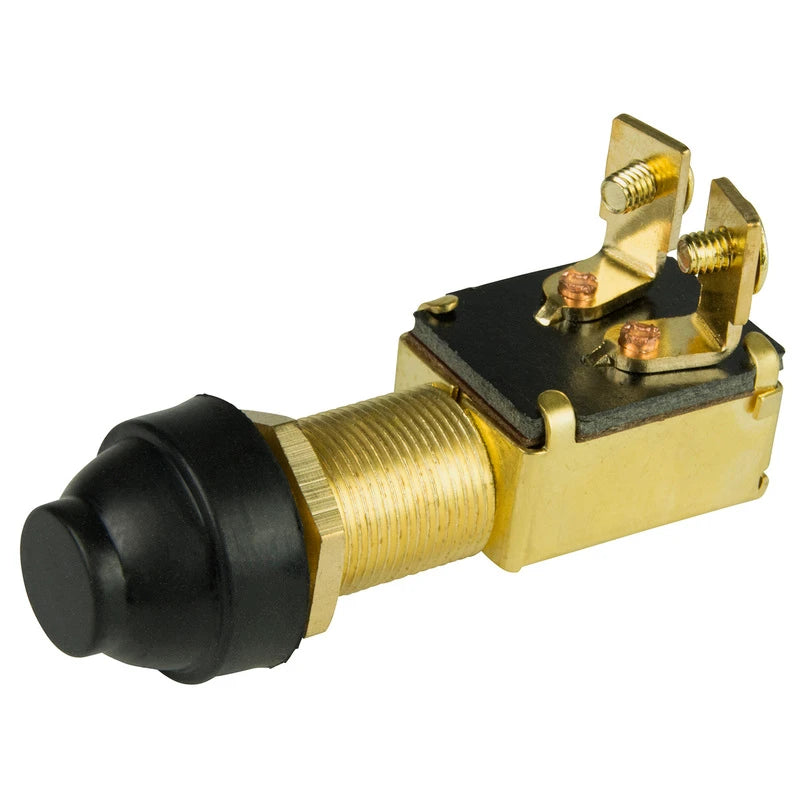

BEP Schalter Drucktaster Off-(On) 6-36V DC 10A
BEPBEP Switch Pushbutton Off-(On) 6-36V DC 10A
Rohrventilator RV 178-12 V=
€267,93
€267,93

  • Housing and motor mount made of aluminum – corrosion-resistant and seawater-proof
  • Motor protected according to IP68 – insensitive to splash water and moisture
  • Impeller retaining ring made of stainless steel (VA) – permanently rust-free
  • High flow rate: 550 m³/h (9.2 m³/min) for fast air exchange
  • Compact weight of 1.4 kg – easy installation in pipe or duct
  • CE certified according to 72/245/EEC as amended by 95/54/EC

Operating voltage 12 V
Power consumption 90 W
Current consumption 6.5 A
Volume flow 550 m³/h (9.2 m³/min)
Motor protection class IP68
Casing Aluminum
Motor mount Aluminum
Impeller retaining ring Stainless steel (VA)
Feature Seawater resistant
Weight 1.4 kg
Approval CE according to 72/245/EEC as amended by 95/54/EC

Ocean Birds

Gewicht (ca.): 2.55 kg
