By Ritchie Navigation

Ritchie Helmsman, concisely

€308,58
€308,58
Tax included.

Precisely on course, even in the darkest night: The Ritchie Helmsman is a proven flush-mount compass for installation in the cockpit or on the bulkhead. With its exclusive NiteVu night illumination and powerful DirectiveForce magnets, it provides you with a quick, stable course reading at all times – reliable and maintenance-free.

Tip: Replacement illumination and bracket are available as original spare parts (e.g., SH-0195 KIT for 12V Green). For Helmsman compasses built before 1992, Ritchie recommends reading pages 5–14 of the service manual or contacting Ritchie directly.
brand: Ritchie Navigation
Availability: Low stock
SKU: OB-BB-HF-743
Product group:
category:
Navigation & Audio
VetusVetus Carbon Brush Set (8x) BOW95/125B

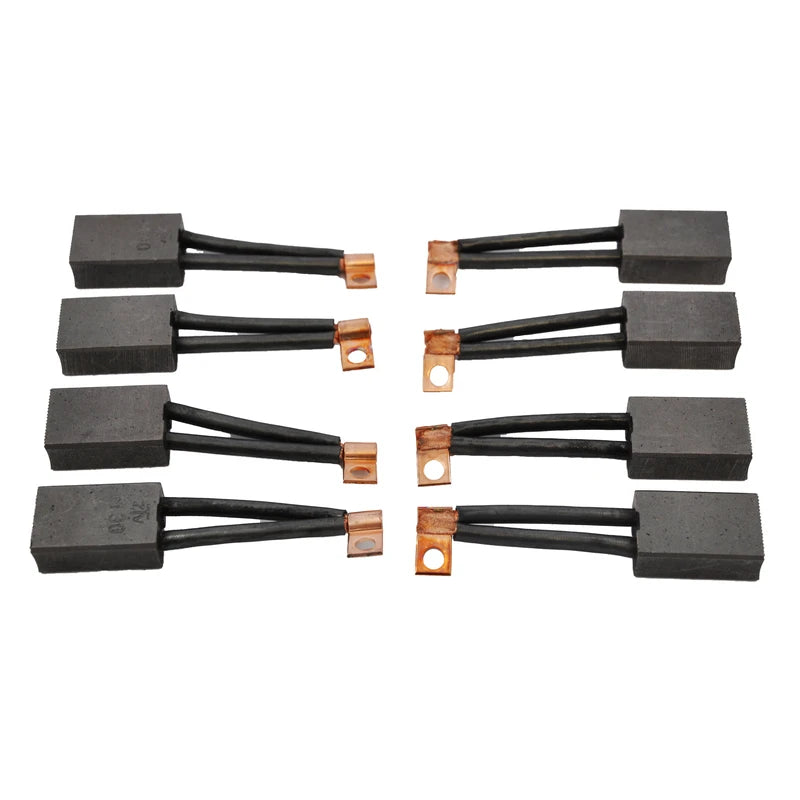

Vetus Kohlebürstensatz (8x) BOW95/125B
Crosseven

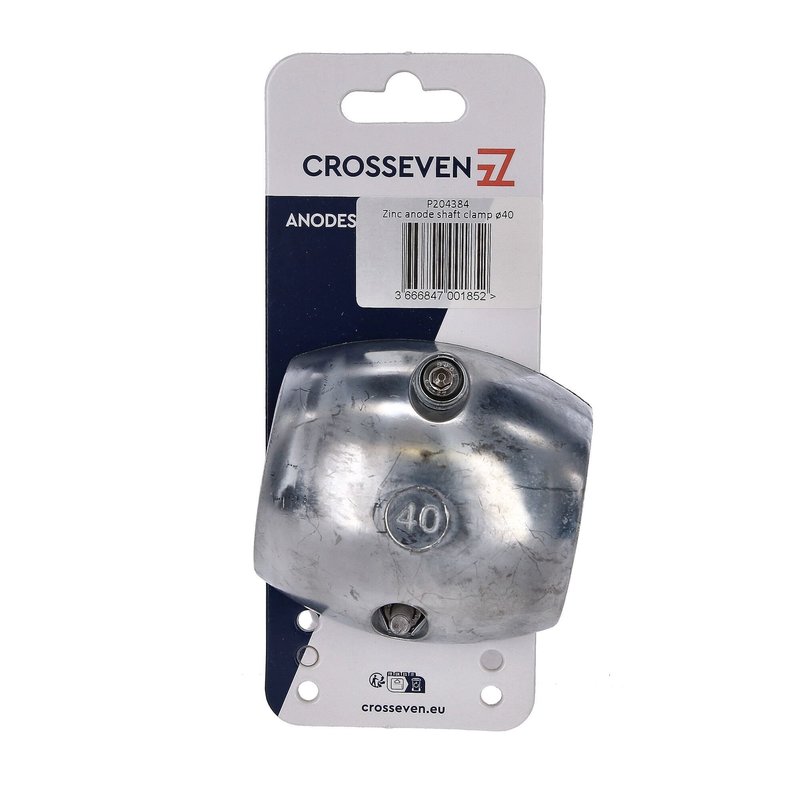

CrossevenCrosseven Zinc Anode Shaft ø 40 mm - packaged
Ritchie Helmsman
€308,58
€308,58

  • Exclusive green NiteVu night lighting for clear readability even in the dark
  • DirectiveForce magnets for fast, precise heading acquisition even in rough seas
  • Integrated compensators allow easy deviation correction directly on the compass
  • Adjustable and removable bracket with thumb screws for flexible mounting
  • High-temperature composite construction for reliable operation in extreme conditions
  • 100% repairable with 5-year exclusive Ritchie warranty

Dial Diameter 95 mm (3 3/4")
Dial Configuration Open dial or Combination dial
Mounting Type Flush-Mount
Lighting (Standard) 12 V, green (NiteVu)
Lighting Options 12 V Green/Red, 24 V Green, 32 V available
Magnet Technology DirectiveForce
Pivot Material Sapphire and hardened steel
Sun Shield Movable, built-in
Lubber Lines 45 Degree
Compensators Built-in
Case Material High-temperature composite
Repairability 100% repairable
Warranty 5 years (Ritchie exclusive)
Shipping Weight approx. 907 g
Protective Cover H-741-C HB-740
Replacement Bracket HL-0252
Replacement Thumb Screws HL-0094 ASY (2 required)

Ritchie Navigation

Gewicht (ca.): 1.75 kg
