By Raymarine

Raymarine RV-312 RealVision 3D Pack

€2.162,65
€2.162,65
Tax included.

Dive deeper into the underwater world: The RV-312 package brings RealVision 3D sonar to your AXIOM multifunction display – with two plastic thru-hull transducers for port and starboard. This allows you to simultaneously capture structures, fish, and the seabed from both angles, providing a complete, three-dimensional view beneath the keel.

Tip: When installing, ensure both transducers are positioned as far as possible from turbulence (keel, anti-fouling edge) to minimize air bubble noise and fully utilize 3D image quality.
brand: Raymarine
Availability: Low stock
SKU: OB-BB-T70320
Product group:
category:
Navigation & Audio

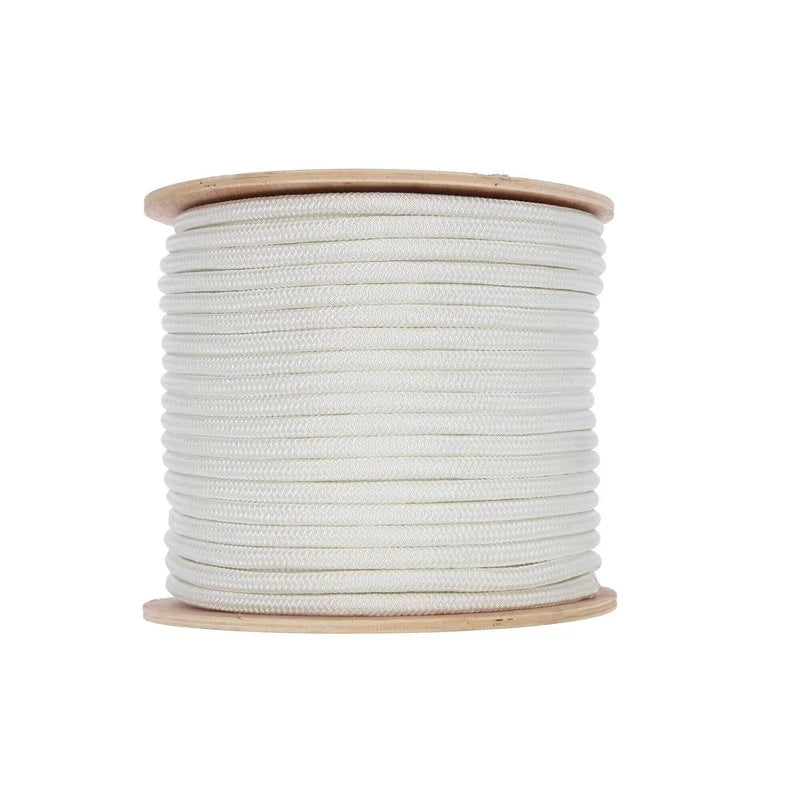

CrossevenCrosseven Braided Polyester Rope
Crosseven Geflochtenes Polyesterseil
Separ Filtereinsatz 00530/50 HNBR -40°
Separ FilterSepar filter element 00530/50 HNBR -40°
Raymarine Paket RV-312 RealVision 3D
€2.162,65
€2.162,65

  • Two thru-hull transducers (port & starboard, 12° each) for seamless RealVision 3D sonar
  • Direct connection to Raymarine AXIOM MFDs – no additional module required
  • Robust plastic housings – corrosion-resistant and durable on board
  • Complete cable set included: 2 × 2 m Y-cable and 8 m extension cable
  • 12° mounting angle for optimized beam and precise 3D imaging

Model RV-312 RealVision 3D
Number of Transducers 2 (Port & Starboard)
Transducer Type Plastic Thru-Hull Transducer
Dead Rise Angle 12°
Connection Direct connection to Raymarine AXIOM MFDs
Cables included 2 × 2 m Y-cable, 1 × 8 m extension cable
Technology RealVision 3D Sonar

Raymarine

Gewicht (ca.): 1.5 kg
