By Raymarine

Raymarine P319, Plastic Thru-Hull Transducer

€254,36
€254,36
Tax included.

Precise depth measurement directly on the hull: The Raymarine P319 is a low-profile, plastic thru-hull transducer that operates on two frequencies, 200 kHz and 50 kHz, allowing for both detailed shallow water detection and reliable deep-water depth measurement. With 600 W transmit power and a 9 m connection cable, it is designed for permanent installation in the hull and connects directly to the Raymarine CP370 Fishfinder module via the 8-pin connector.

When installing, ensure a bubble-free alignment – even small air pockets under the transducer can significantly impair the echo signal. Use suitable underwater sealant according to the manufacturer's specifications.
brand: Raymarine
Availability: Low stock
SKU: OB-BB-E66013
Product group:
category:
Navigation & Audio

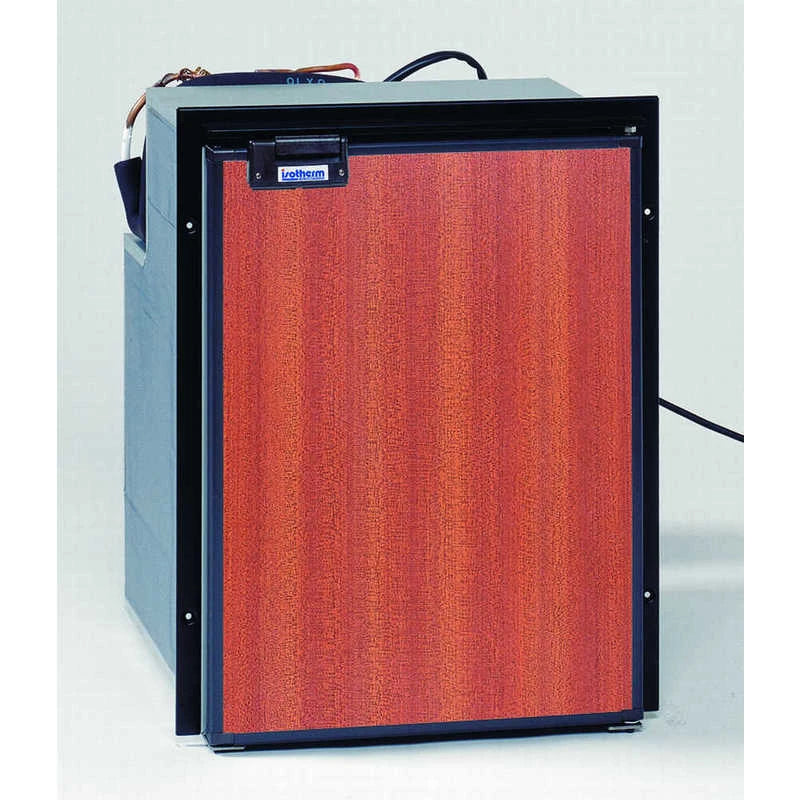

Indel Webasto MarineIsotherm Door Front Panels Mahogany CR130+CR90F
Isotherm Türfrontpanele Mahagony CR130+CR90F

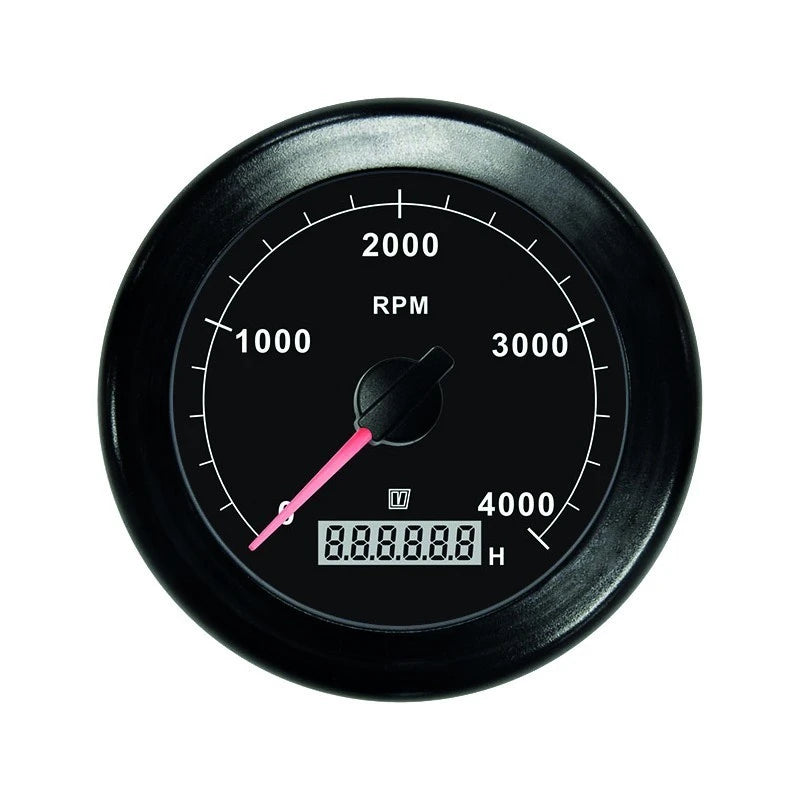

Vetus Drehzahlmesser
VetusVetus Tachometer, black, 0-4000 rpm
Raymarine P319
€254,36
€254,36

  • Dual-frequency 200 / 50 kHz – versatile for shallow and deep water
  • 600 W transmit power for strong, clear echoes even at higher speeds
  • Flat design – lies flush with the hull, minimal drag
  • 9 m connection cable provides flexibility for routing to the electronics
  • 8-pin connector suitable for Raymarine CP370
  • Plastic housing – corrosion-resistant and lightweight

Model P319
Type Plastic Thru-Hull Transducer
Frequency 200 kHz / 50 kHz
Power Output 600 W
Cable Length 9 m
Connector 8-Pin
Compatibility Raymarine CP370
Form Factor Flush

Raymarine

Gewicht (ca.): 1.3 kg
