By PSS

PSS Seal 30 mm Shaft, 1 3/4" Stern Tube

€439,01
€439,01
Tax included.

No more dripping stuffing boxes: The PSS Shaft Seal Type A is a low-maintenance mechanical face seal that completely watertight seals your propeller shaft. It reliably compensates for misalignments, vibrations, and the axial back-and-forth movement caused by propeller thrust – with no dripping water in the bilge.

Tip: Correct bellows pre-tensioning is crucial for proper function. After installation, check the bellows' compression and ensure that the rotor's set screws are resting on clean, degreased shaft metal. After the first few hours of operation, recheck all hose clamps for a secure fit.
brand: PSS
Availability: Low stock
SKU: OB-BB-02-30M-134
Product group:
category:
Engine technology

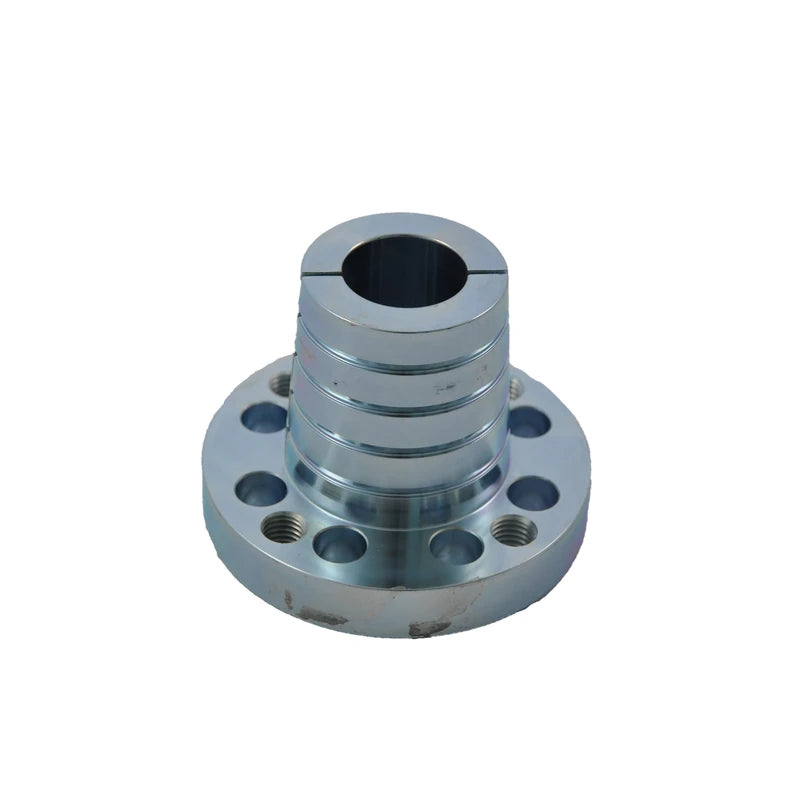

CentaCenta Clamping Hub CF-M-160-D40
Centa Klemmnabe CF-M-160-D40
International Cruiser 200 Navy 750 ml
International YachtfarbenInternational Cruiser 200 Navy 750 ml
PSS-Dichtung 30 mm Welle
€439,01
€439,01

  • Mechanical face seal – no dripping, no readjustment like with conventional stuffing boxes
  • Floating carbon flange automatically compensates for misalignments and shaft vibrations
  • Pre-tensioned stainless steel rotor keeps the sealing surface in permanent contact even with changing propeller thrust
  • O-rings rotate with the shaft – no wear on the shaft surface during operation
  • Wide temperature range from –15 °C to +107 °C for year-round use
  • Robust materials: carbon-graphite lapped to 4 HLB, rotor made of 316 SS / Nitronic 50

Type PSS Shaft Seal Type A
Shaft Diameter 50 mm
Stern Tube ID 3″
Seal Principle Mechanical Face Seal (rotating Stainless Steel Rotor / stationary Carbon Flange)
Rotor Material 316 SS / Nitronic 50, 9 Ra surface finish
Carbon Flange Carbon-Graphite, lapped to 4 HLB (0.000 011 mm tolerance)
Bellows Material Molded Nitrile – PVC
Rotor Seal to Shaft 2 O-rings (rotating, no wear during operation)
Temperature Limits –15 °C to +107 °C
Pressure Limit 1 bar (15 PSI)
Max. Shaft Speed 10 000 rpm
Carbon Flange Attachment Hose Clamps to Bellows and Stern Tube
Rotor Attachment Set Screws on Shaft

PSS

Gewicht (ca.): 0.11 kg
