Philippi DZD 12/24, Surface-Mount Socket 3-Gang

€30,12
€30,12
Tax included.

Three slots, a compact housing: The Philippi DZD 12/24 brings plenty of socket capacity to the onboard electrical system - whether in the salon, at the helm, or in the locker. The surface-mount socket accepts universal plugs and reliably distributes direct current from 6 to 24 V to up to three consumers simultaneously.

Tip: When connecting, make sure that the sum of all connected consumers does not exceed 16 A - it is best to connect a suitable fuse for each socket group.
brand: philippi
Availability: Low stock
SKU: OB-BB-367601000
Product group:
category:
electrical system
VetusVetus SONITECH Single 45 mm Insulation Panel
Vetus Dämmplatte SONITECH Single 45 mm

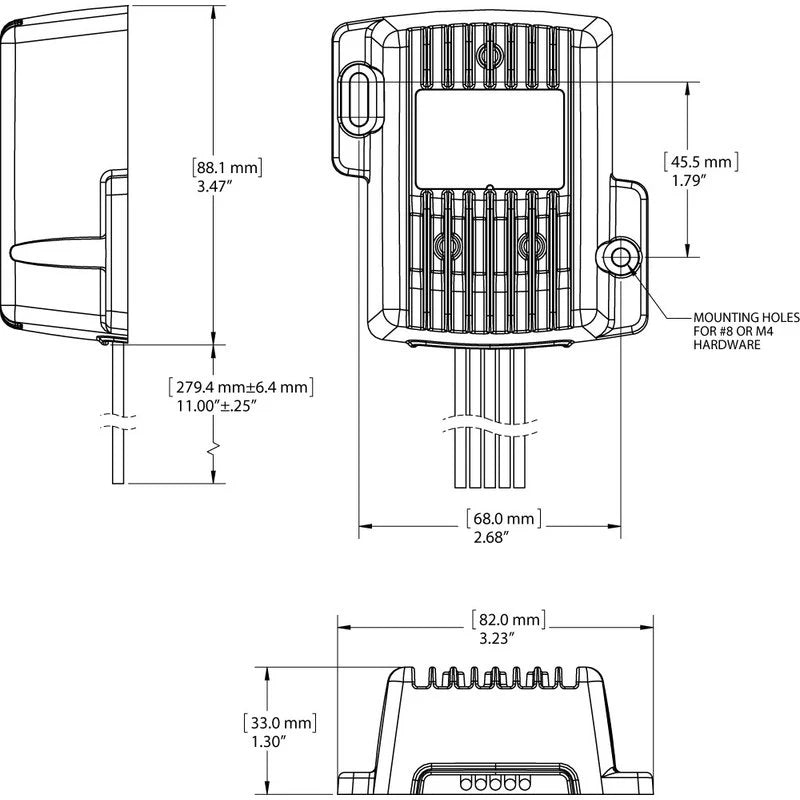

Blue Sea Dimmer DeckHand 12A 24V
Blue SeaBlue Sea Dimmer DeckHand 12A 24V
Philippi DZD 12/24
€30,12
€30,12

  • Three slots for universal plugs – connect multiple devices simultaneously
  • Wide voltage range 6–24 V – fits both 12 V and 24 V vehicle electrical systems
  • Max. 16 A load capacity – sufficient reserves for power-hungry onboard devices
  • Compact surface mounting (85 × 99 × 33 mm) – space-saving on any panel
  • Connection via 6.3 mm spade terminals – quick, tool-free wiring

Type Philippi DZD 12/24
Version Triple surface-mount socket
Plug type Universal plug
Max. current load 16 A
Voltage range 6–24 V
Connection Flat plug 6.3 mm
Dimensions (L × W × H) 85 × 99 × 33 mm

philippi

Gewicht (ca.): 0.03 kg
