By MG Energy Systems

MG SmartLink MX

€474,81
€474,81
Tax included.

Multiple battery systems, one clear picture: The SmartLink MX bundles the data from two or more MG Master HV or LV units and presents the entire battery cluster as a single bank. This way, you maintain an overview at all times, even in complex, redundant onboard energy systems – and control them precisely.

Tip: When building a redundant system, ensure that all connected MG Masters are running on the same firmware version – this guarantees seamless data consolidation in the SmartLink MX.
brand: MG Energy Systems
Availability: Low stock
SKU: OB-BB-MGSLM48001
Product group:
category:
electrical system

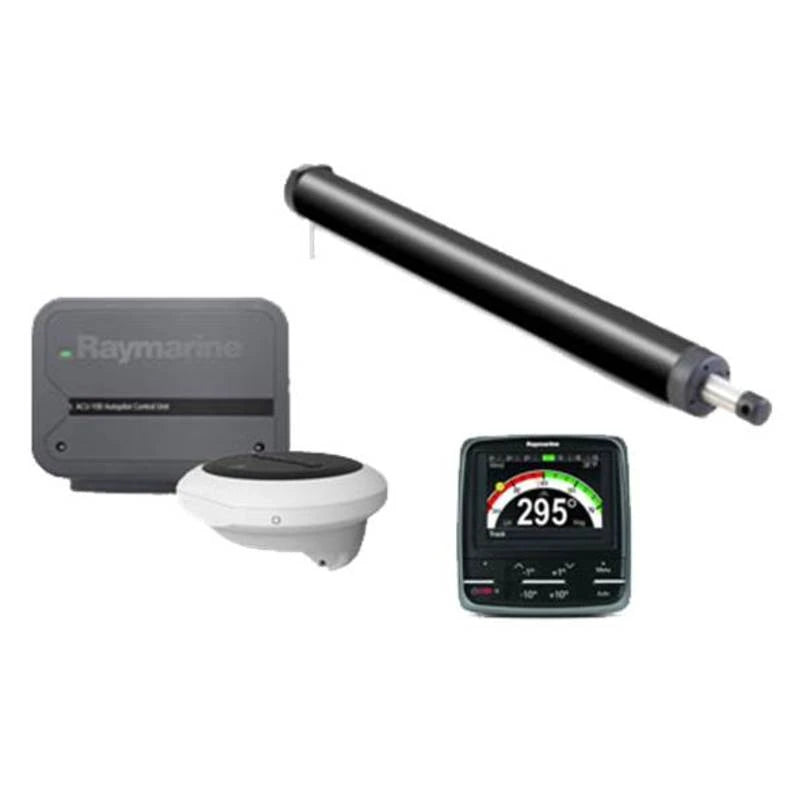

RaymarineRaymarine EvolutionTM EV-100 Tiller Pilot
Raymarine EvolutionTM Pinnenpilot EV-100

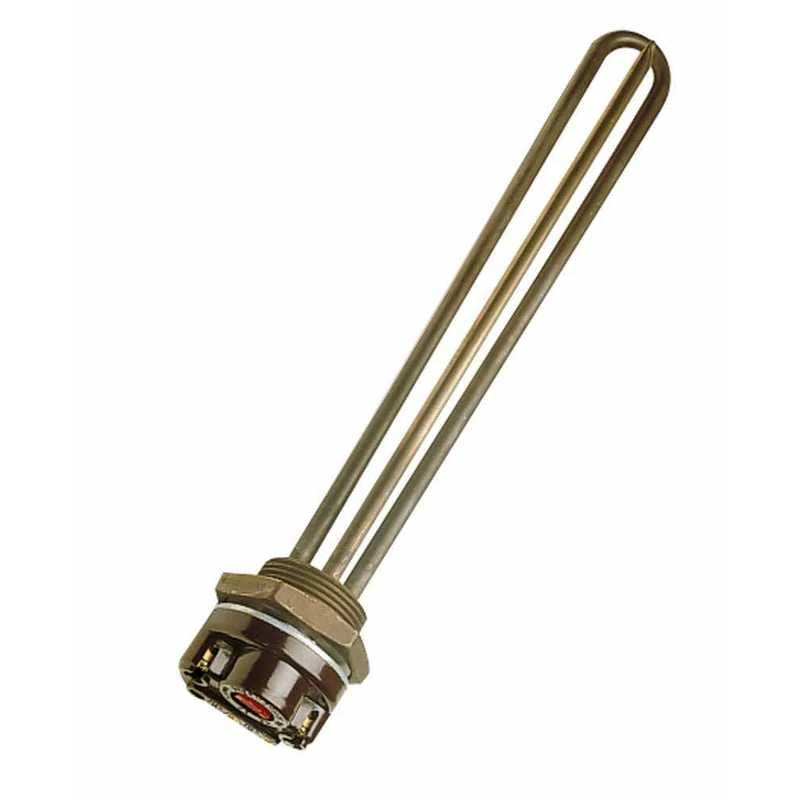

Vetus Heizelement 230V 500W
VetusOld Heating Element 230V 500W
MG SmartLink MX
€474,81
€474,81

  • Combines data from multiple MG Masters HV and LV to create a unified overall view of the battery bank
  • Transmits consolidated battery information via CAN bus – for clean, redundancy-free communication
  • Compatible with low voltage (Master LV) and high voltage (Master HV) – versatile in application
  • Facilitates the integration of third-party devices for external monitoring and analysis
  • Improves charge control through comprehensive insight into the status and performance of the entire battery bank
  • Extends battery life through precise, system-wide optimized charging processes

Function BMS data integration for parallel battery systems
Compatibility MG Master HV (High Voltage) and MG Master LV (Low Voltage)
Minimum number of Masters 2 MG Masters
Communication interface CAN bus
Application Parallel, redundant battery systems
Third-party integration Yes, via CAN bus data output

MG Energy Systems

Gewicht (ca.): 0.27 kg
