By Maxpower
MAXPOWER Bow Thruster CT125 24V Ø185
Regular price
€2.683,34
Regular price
Sale price
€2.683,34
Unit price
per
Tax included.
Maximum thrust with the smallest tunnel diameter: The CT125 is the most powerful tunnel thruster with a Ø 185 mm from the Max Power range. With 115 kg of thrust and 8.58 kW of power, it effortlessly maneuvers motorboats and sailing yachts between 35 and 58 feet in any direction – even in wind and current.
Tip: For new builds or extensive retrofits, it's worth considering the 48V variant of the CT125 – it offers 48% lower power consumption and 50% longer duty cycles, allows for smaller cable cross-sections, and can be powered directly from existing onboard batteries, significantly reducing installation costs.
Couldn't load pickup availability
Regular price
€2.683,34
Regular price
Sale price
€2.683,34
- 115kg of thrust (8.58kW / 11.5HP) - the most powerful Ø185mm tunnel thruster in Max Power's range

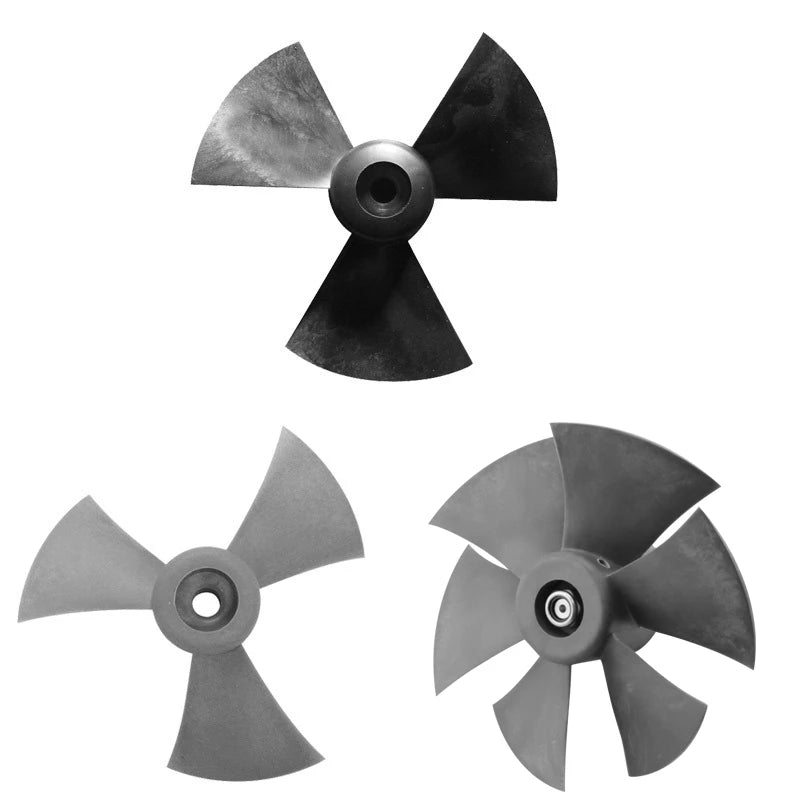

- Dual propeller for efficient and smooth thrust
- Patented composite drive legs - lightweight, corrosion-resistant and maintenance-free
- Case hardened spiroid gears for maximum durability and silent running
- Electronic control box with extensive safety features and high power secured connections
- Custom-built DC motors and high-specification solenoids for reliable continuous operation
| Model | CT125 |
|---|---|
| Voltage | 24 V |
| Power | 8.58 kW / 11.5 hp |
| Thrust | 115 kg / 268.4 lbs |
| Propeller | 2 (Twin Propeller) |
| Tunnel diameter (D) | Ø 185 mm |
| Dimension A | 250 mm |
| Dimension B | 200 mm |
| Dimension C | 365 mm |
| Installation depth E | 6–7 mm |
| Weight | 24 kg |
| Suitable for | Motorboats and sailing yachts, 35–58 feet (deep keel) |
| Drive legs | Composite, patented |
| Gears | Case hardened, spiral bevel |
| Control | Electronic control box with safety features |
| Maintenance | Maintenance-free |
Maxpower
Gewicht (ca.): 24.0 kg
