By Maxpower

MAXPOWER Bow Thruster CT100 12V Ø185

€2.572,78
€2.572,78
Tax included.

Precise maneuvering even in wind and current: The CT100 from Maxpower is a powerful 12V tunnel thruster with twin propeller technology and up to 96 kg of thrust. It fits into motorboats and sailing yachts with a deep keel between 30 and 53 feet and impresses with its maintenance-free composite construction.

When installing, ensure that the tunnel is completely below the waterline and that the recommended minimum deck dimension (E = 6–7 mm wall thickness) is maintained. Generously dimension the cable cross-sections for 12V systems with high current requirements to minimize voltage drops.
brand: Maxpower
Availability: Low stock
SKU: OB-BB-42534
Product group:
category:
Engine technology

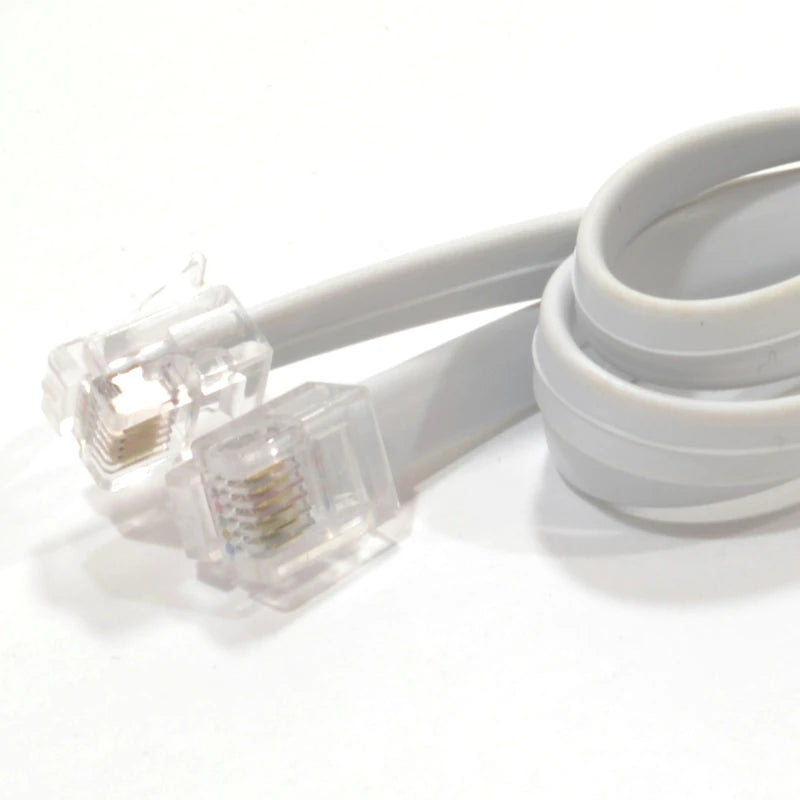

MastervoltMastervolt connection cable, 6 meters
Mastervolt Anschlusskabel

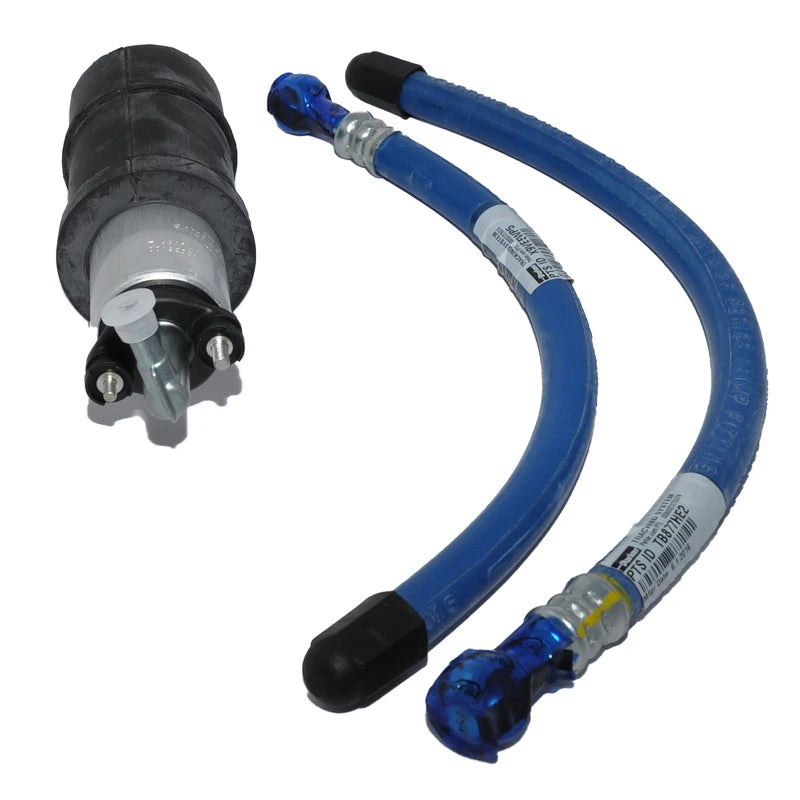

Steyr ZB KRAFTSTOFFPUMPE + LEITUNGEN
Steyr MotorsSteyr FUEL PUMP + LINES
MAXPOWER Bugstrahlruder CT100 12V Ø185
€2.572,78
€2.572,78

  • Up to 96 kg / 211 lbs of thrust – powerful maneuvering in harbors and confined waters
  • Twin composite propellers with patented drivetrain – durable and maintenance-free
  • Case-hardened spiral bevel gears for quiet, low-wear operation
  • Specially designed DC motor with highly specified contactors for maximum reliability
  • Electronic control box with comprehensive safety features
  • Tunnel diameter Ø 185 mm – suitable for a wide range of hulls from 30 to 53 feet

Voltage 12 V
Power 7.1 kW / 9.5 hp
Thrust 96 kg / 211.2 lbs
Propeller Twin propeller
Tunnel Diameter (D) Ø 185 mm
Suitable for boat length 30–53 ft (deep foot)
Dimension A 250 mm
Dimension B 200 mm
Dimension C 356 mm
Dimension E (wall thickness) 6–7 mm
Weight 24 kg
Drive train Patented composite
Gears Case hardened spiral bevel gears
Motor Specially developed DC motor
Maintenance Maintenance-free

Maxpower

Gewicht (ca.): 24.0 kg
