Mastervolt MASS 24/75-C

€2.345,55
€2.345,55
Tax included.

When absolute reliability on board is paramount, the Mastervolt MASS 24/75-C is the right choice: The 75-A professional charger powers your 24V on-board system around the clock – even under extreme operating and environmental conditions. With DNV-GL certification and GMDSS compatibility, it meets the strictest maritime requirements.

Tip: Thanks to MasterBus integration, the device can be centrally monitored and configured together with inverters and other Mastervolt components via tablet or remote control panel – particularly practical on larger yachts with complex on-board systems.
brand: Mastervolt
Availability: Low stock
SKU: OB-BB-40020756
Product group:
category:
electrical system
MaxpowerMAXPOWER Electric Battery Disconnector 24V
MAXPOWER Elektrischer Batterietrenner 24V

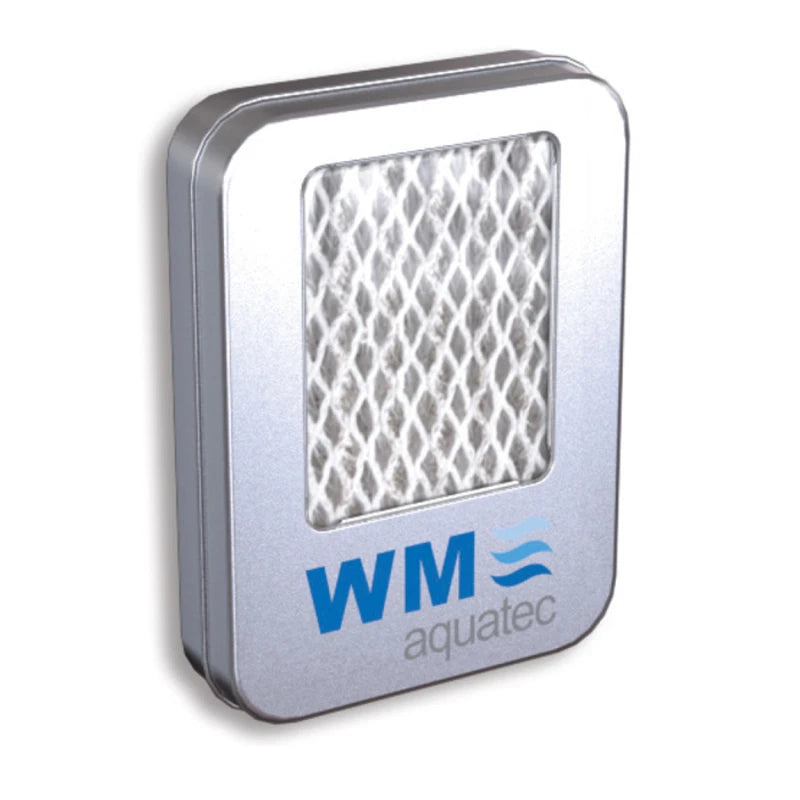

WM Silbernetz Trinkwasserkonservierung bis 40L
WM aquatecWM SilverNet Drinking Water Preservation up to 40L
Mastervolt MASS 24/75-C
€2.345,55
€2.345,55

  • DNV-GL certified – approved for professional and commercial marine use
  • GMDSS-compliant – facilitates SOLAS compliance with alarm monitoring
  • MTBF of 180,000 hours – exceptional durability, even in continuous operation
  • Suitable for all battery types – reliably recharges even deeply discharged batteries
  • Current Control function protects fuses even when input voltage drops
  • MasterBus compatible – central monitoring and control via single-cable connection

Model MASS 24/75-C
Output current 75 A
Number of outputs 1
Output voltage bulk 28.5 / 28.8 V
Output voltage load 26.5 / 27.6 V
Input voltage 180 – 260 V AC
Charge characteristic 3-step, IUoUo
Temperature sensor Integrated as standard
Full power up to 40 °C
Recommended battery capacity 80 – 1,000 Ah (and more)
Housing material Stainless steel and anodized aluminium
Internal coating Moisture and condensation protected
MTBF 180,000 hours at full load
Certifications DNV GL, CE, ABYC A-31, IEC 60945
GMDSS compatible Yes
MasterBus compatible Yes
Lithium-ion charging Yes (via MasterBus communication)
Parallel connection Possible
