By Mastervolt

Mastervolt DC Distribution 500

€384,75
€384,75
Tax included.

Order in the engine room begins with the right distribution: The DC Distribution 500 from Mastervolt bundles up to four DC consumers – such as battery charger, inverter, alternator, and solar panels – into a compact, clear unit. As the smallest model in the Mastervolt DC distribution series, it can be integrated into the MasterBus network via Plug & Play, immediately making your onboard system smarter.

Tip: Label each fuse position with the connected device directly in the EasyView panel during installation – this way, error messages can be clearly assigned immediately.
brand: Mastervolt
Availability: Low stock
SKU: OB-BB-77020200
Product group:
category:
electrical system

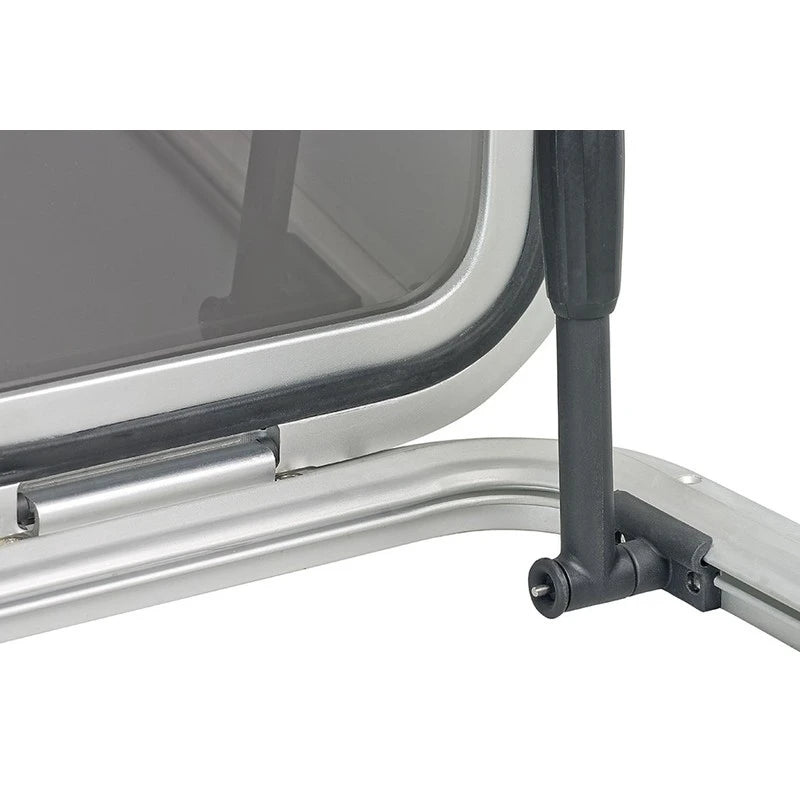

PlastimoPLASTIMO Deck Hatch Alu/Acrylic 407x262
PLASTIMO Decksluke Alu/Acryl 407x262

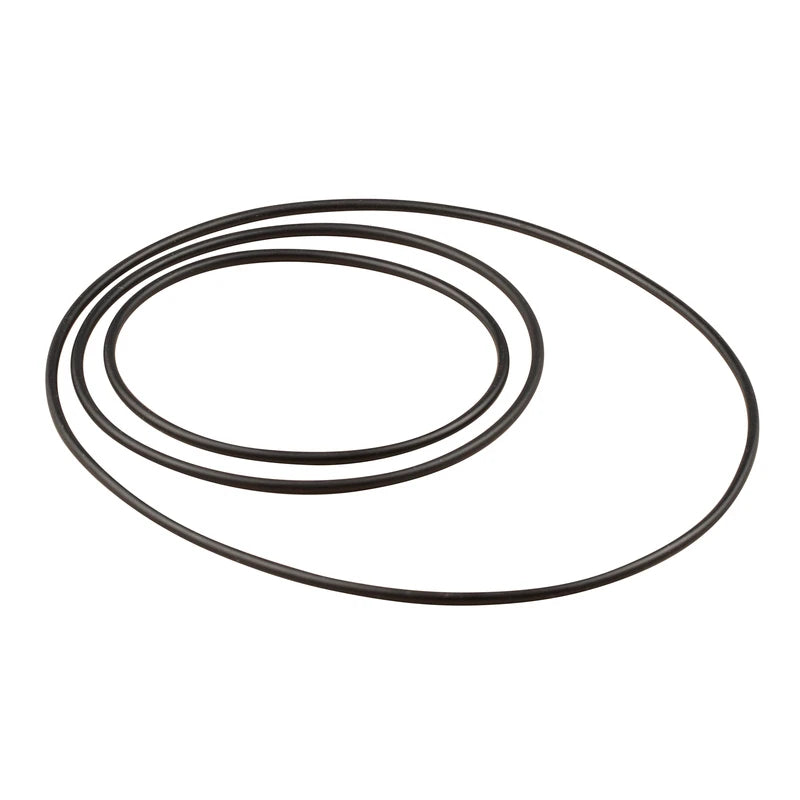

Guidi Neopren-Ersatz-O-Ring Für Sieb
GuidiGuidi Neoprene Replacement O-Ring For Strainer
Mastervolt DC Distribution 500
€384,75
€384,75

  • Distributes power to up to four DC devices – neatly fused and organized
  • Plug & Play cables included for easy connection to the MasterBus network
  • Clear error messages via the EasyView panel – fuses are logically named instead of bare numbers
  • Four ANL fuses (80 A, 80 A, 125 A, 160 A) for various consumers pre-installed at the factory
  • One spare ANL fuse (125 A) already included
  • Smallest available model in the DC distribution range – space-saving even on smaller yachts

Model DC Distribution 500
Number of outputs 4 (DC consumers)
Fuse type ANL
Fuses (standard) 80 A, 80 A, 125 A, 160 A
Spare fuse 125 A (1 piece, included)
Bus connection MasterBus (Plug & Play)
Display/control Mastervolt EasyView panel compatible
Special feature Smallest model in the DC Distribution range

Mastervolt

Gewicht (ca.): 0.11 kg
