Mastervolt ChargeMaster Plus 24/60-3 Czone

€1.292,00
€1.292,00
Tax included.

No more tangled wires in the bilge: The ChargeMaster Plus 24/60-3 CZone combines a battery charger, DC-DC converter, voltage-sensing relay, and current limiter in a single compact housing – and charges up to three battery banks simultaneously, safely and quickly. Thanks to its native CZone and NMEA 2000 interface, it integrates seamlessly into modern boat networks without the need for additional communication modules.

Tip: Use the CZone configuration file to integrate the ChargeMaster Plus just like any other CZone device in the system – this saves installation time and ensures a uniform system overview on your multifunction display.
brand: Mastervolt
Availability: Low stock
SKU: OB-BB-44320605
Product group:
category:
electrical system

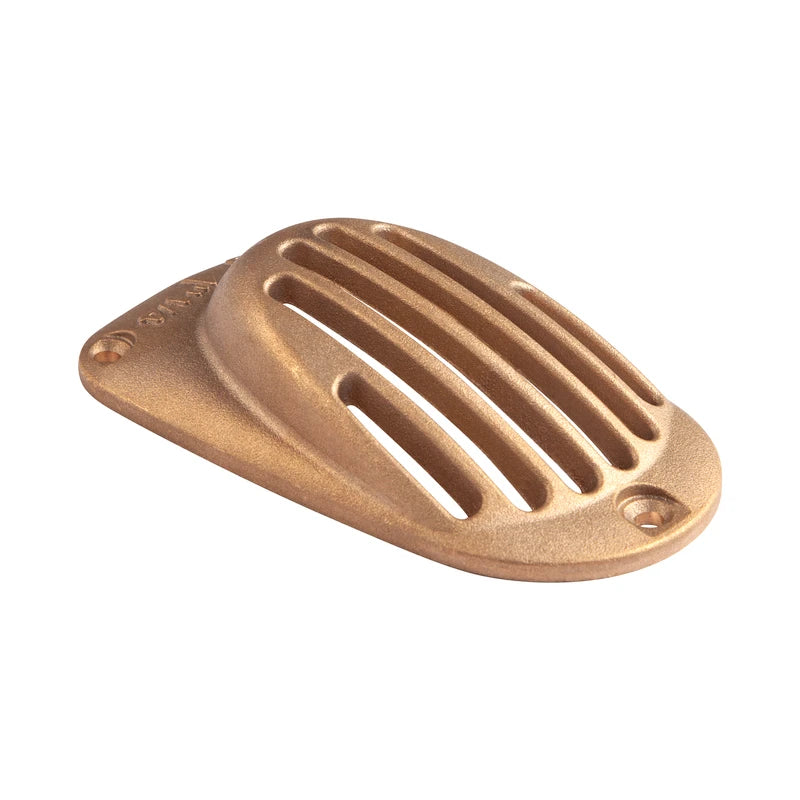

GuidiGuidi Water Inlet "Manta" - 3/4''
Guidi Wassereinlauf „Manta“ - 3/4''
Hella Apelo A1 weiß/blau
Hella MarineHella Apelo A1 white/blue, white
Mastervolt ChargeMaster Plus 24/60-3 Czone
€1.292,00
€1.292,00

  • Three independent charge outputs for starter, service, and a third battery – simultaneously and intelligently regulated
  • Multi-voltage: charges a 12V starter battery directly in a 24V system, without any additional components
  • Revival mode automatically brings deeply discharged batteries back to life
  • Priority Charge directs charging current specifically to the weakest battery – for balanced charging times
  • Smart Input: charge all three batteries via a single alternator – reliably, even on the go
  • Native CZone & NMEA 2000 integration ex works, MasterBus compatible – no extra interface required

System voltage 24 V
Charge outputs 3 (two outputs + one input/output)
Total charge power 60 A
Battery types Lithium-ion, AGM, Gel
Charging characteristic 3-stage +
Input voltage 80–275 V AC
Input frequency 35–70 Hz
Power at 60 °C 80 % of nominal charging power
Boost power at 14.4 V + 20 % output power
Communication MasterBus (CAN), CZone®, NMEA 2000 (native)
Other interfaces ModBus, CANopen, LinBus (via additional interface)
Standards/Certifications CE, ABYC, UL, SAE, CEC/DOE, RCM/C-Tick
Dimensions (H × W × D) 384 × 250 × 127 mm
Weight 5.9 kg
Special features Revival mode, Priority Charge, Smart Input, integrated VSR, DC-DC converter, current limiter
