Mastervolt ChargeMaster Plus 24/110-2 Czone

€2.427,25
€2.427,25
Tax included.

Two batteries, one device – the Mastervolt ChargeMaster Plus 24/110-2 CZone combines a battery charger, DC-DC converter, and current limiter in a single compact unit, eliminating the need for additional isolation diodes or VSR relays. With native CZone and NMEA-2000 support, it seamlessly integrates into modern onboard intelligence. Ready for use anywhere in the world, it quickly, safely, and gently charges virtually any battery combination.

Tip: During boat construction or shipyard stays, the ChargeMaster Plus can be used as a stable DC power source for sensitive communication and navigation equipment, protecting it before the final battery system is operational.
brand: Mastervolt
Availability: Low stock
SKU: OB-BB-44321105
Product group:
category:
electrical system

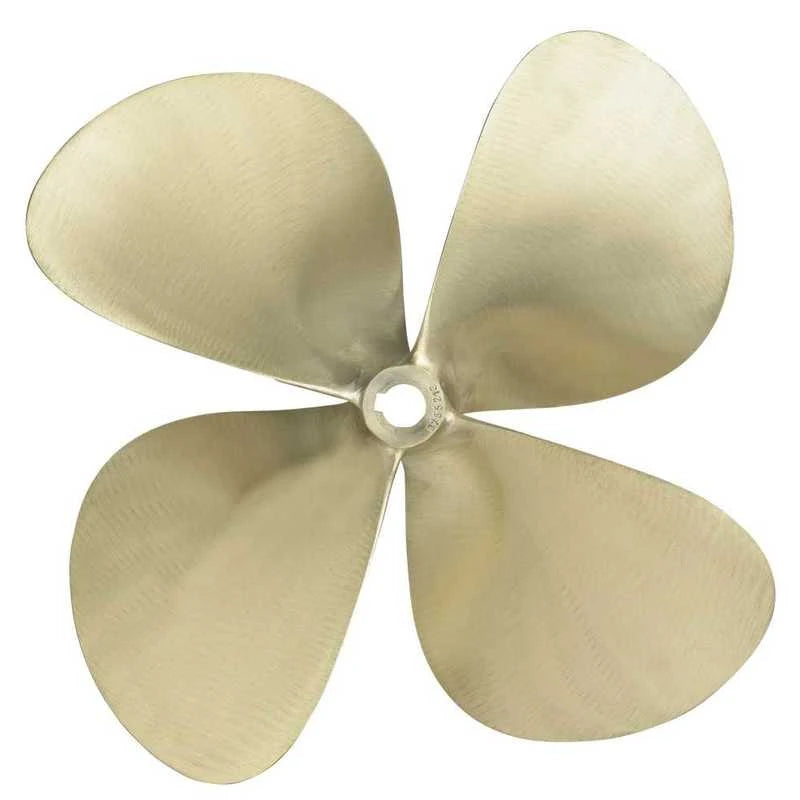

VetusVetus P4E Propeller 15" diameter, 15" pitch
Vetus P4E Propeller 15'Ø

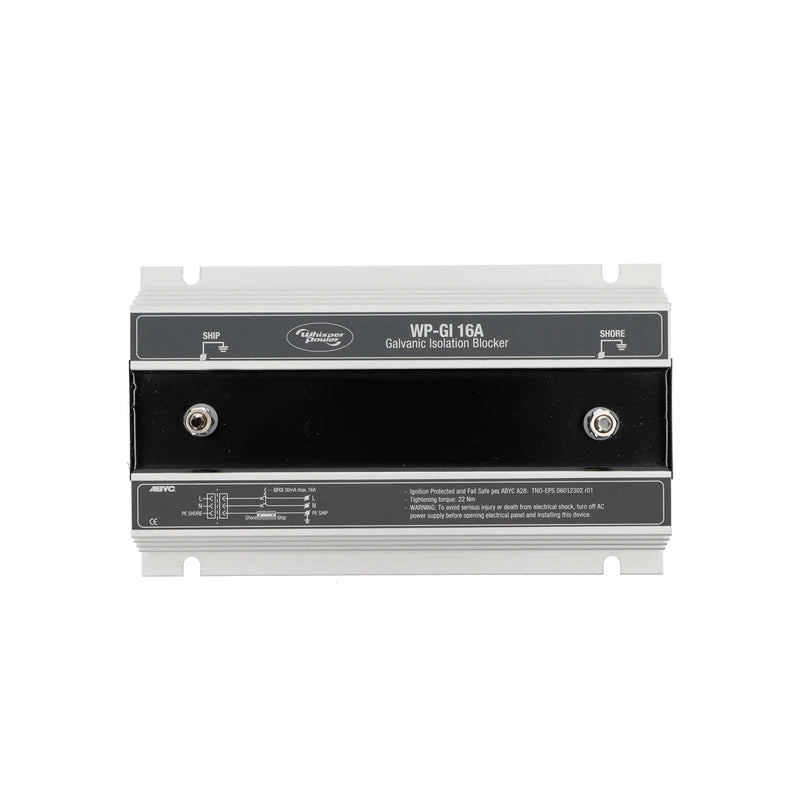

WhisperPower - WP-GI Galvanischer Trennschalter 16
WhisperPowerWhisperPower - WP-GI Galvanic Isolator 16
Mastervolt ChargeMaster Plus 24/110-2 Czone
€2.427,25
€2.427,25

  • Universal: charges Lithium-ion, Gel, and AGM batteries, as well as mixed battery banks on a single device
  • Multi-voltage: charges a 12V starter battery in a 24V system – without additional components
  • Revival mode: automatically brings deeply discharged batteries back to life
  • Priority Charge: directs available current specifically to the weakest battery for faster recharging
  • Native CZone and NMEA 2000 interface integrated – no additional communication modules required
  • Worldwide operation thanks to wide AC input range of 80–275 V / 35–70 Hz

System Voltage 24 V
Outputs 2
Function Battery Charger, DC-DC Converter, Current Limiter
Battery Types Lithium-Ion, Gel, AGM, Wet
Charging Method 3-stage+ (IUoU curve)
Revival Mode Yes – reactivates deeply discharged batteries
Priority Charge Yes – current prioritized to weakest battery
Multi-Voltage Yes – 12V starter battery can be charged in 24V system
AC Input Range 80–275 V AC, 35–70 Hz
Communication MasterBus (CAN), CZone®, NMEA 2000 (natively integrated)
Other Interfaces CANopen, ModBus, LinBus (via additional interfaces)
Configuration Via MasterBus or CZone configuration file
Certifications CE, ABYC, UL, SAE, CEC/DOE, RCM/C-Tick
Dimensions (H × W × D) 384 × 250 × 127 mm
Weight 6.3 kg
