By Lenco

Lenco Trim Tab Set 9'x12'

€1.025,36
€1.025,36
Tax included.

Everything you need for trim tab installation in one box: The Lenco Trim Tab Kit brings your motorboat into the optimal running position and ensures less bow wake, smoother running, and better fuel efficiency. Thanks to the new integrated switch and all necessary accessories, you save yourself the elaborate search for individual parts.

Tip: Lenco also offers the same blade base body with an LED-integrated switch – if you prefer an illuminated status display at the helm, it's worth taking a look at the LED integration variant.
brand: Lenco
Availability: Low stock
SKU: OB-BB-15104-102
Product group:
category:
Engine technology
WallasWallas Forced Air Heaters

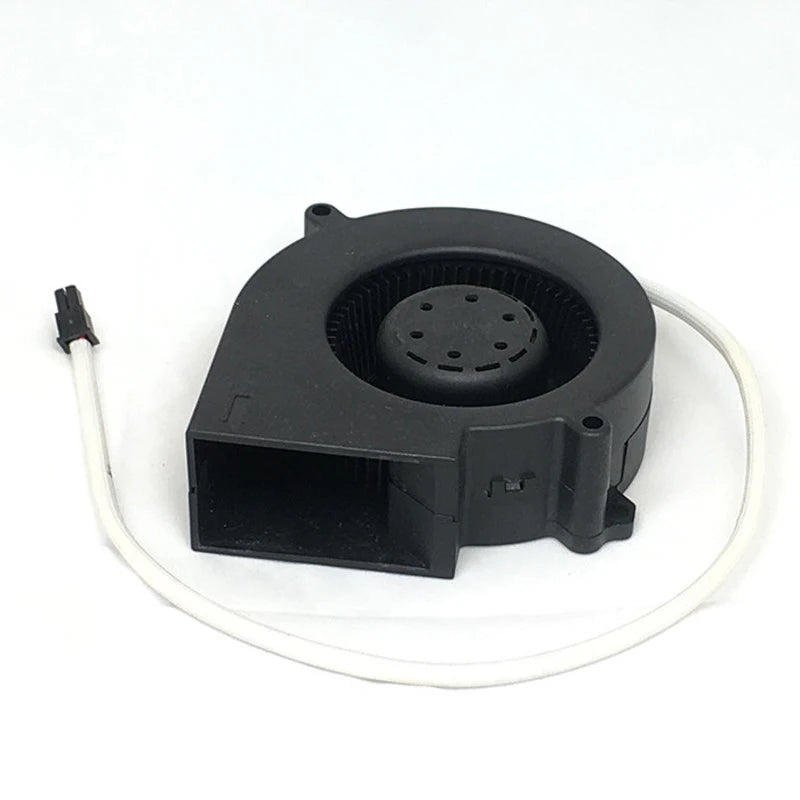

Wallas Brennluftgebläse

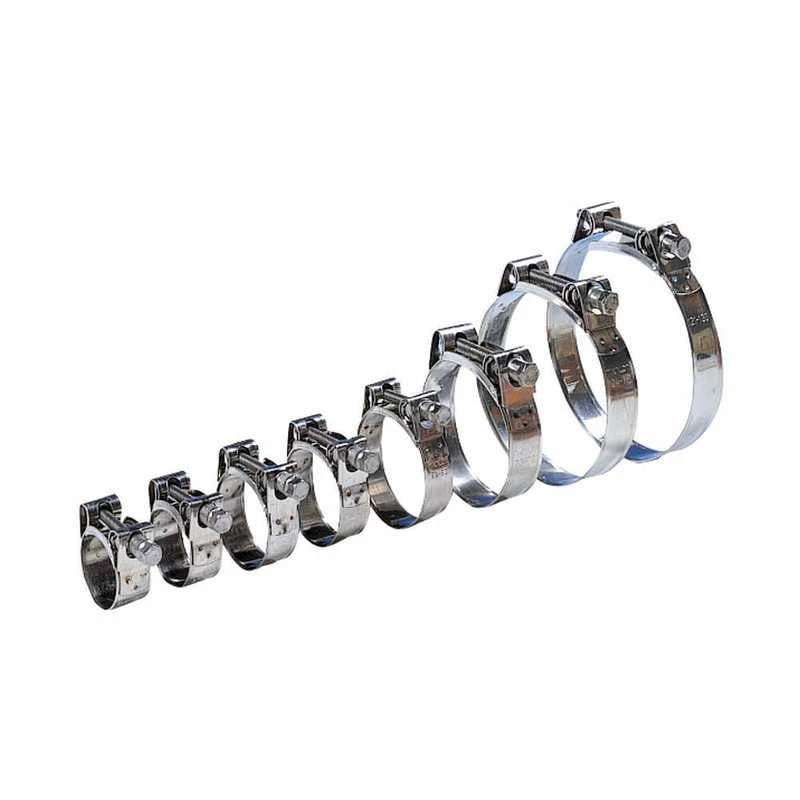

Vetus Heavy Duty Schlauchschelle 47-51mm
VetusVetus Heavy Duty Hose Clamp 47-51mm
Lenco Trimmklappen-Set 9'x12'
€1.025,36
€1.025,36

  • Complete kit – includes blades, actuators, wiring harness, mounting brackets, switch, and fasteners
  • Laser-cut stainless steel (304, 12 gauge / 2.7 mm) blades for lasting corrosion protection
  • New integrated standard switch is ready to install – no separate switch sourcing needed
  • Actuators with 1.8 m (6') lead and Deutsch connectors, plus 6.1 m (20') extension harness for flexible routing
  • Corrosion-resistant mounting brackets with mechanical cable gland seal – tight cable pass-through from the factory
  • Fits boats from 4.9 m to 9.1 m (16' to 30') in length

Blade Size (L × W) 9″ × 12″ (approx. 22.9 × 30.5 cm)
Blade Material 304 stainless steel, 12 gauge (2.7 mm), laser cut
Edge Exposure 5/8″ (1.6 cm) exposed trailing edge
Hinge Pin Diameter 1/8″ (3.2 mm)
Actuators 2× 15054-001 with 6 ft (1.8 m) leads and Deutsch connectors each
Extension Wiring Harnesses 2× 30133-103, 20 ft (6.1 m) each
Upper Mounting Brackets 2× 15085-001, with stuffing box seal
Lower Mounting Brackets 2× 50014-001
Switch (Included) Standard integrated switch
Operating Voltage 12 V
Suitable Boat Length 16–30 ft (4.9–9.1 m)
Mounting Hardware Stainless steel
