By Johnson Pump

Johnson Circulation Pump C090P5-12V

€307,13
€307,13
Tax included.

When reliable circulation on board is essential, the Johnson Pump CO90 is the right choice. The circulation pump is designed for continuous operation and handles both pure fresh water and water-glycol mixtures up to 60% – ideal for heating circuits, cooling water circuits, and hot water systems on boats and yachts.

Tip: The CO90 must not run dry – ensure that the system is completely filled and bled before commissioning. The maximum system pressure of 2.0 bar must be strictly observed when designing the circuit.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-24190-1
Product group:
category:
equipment

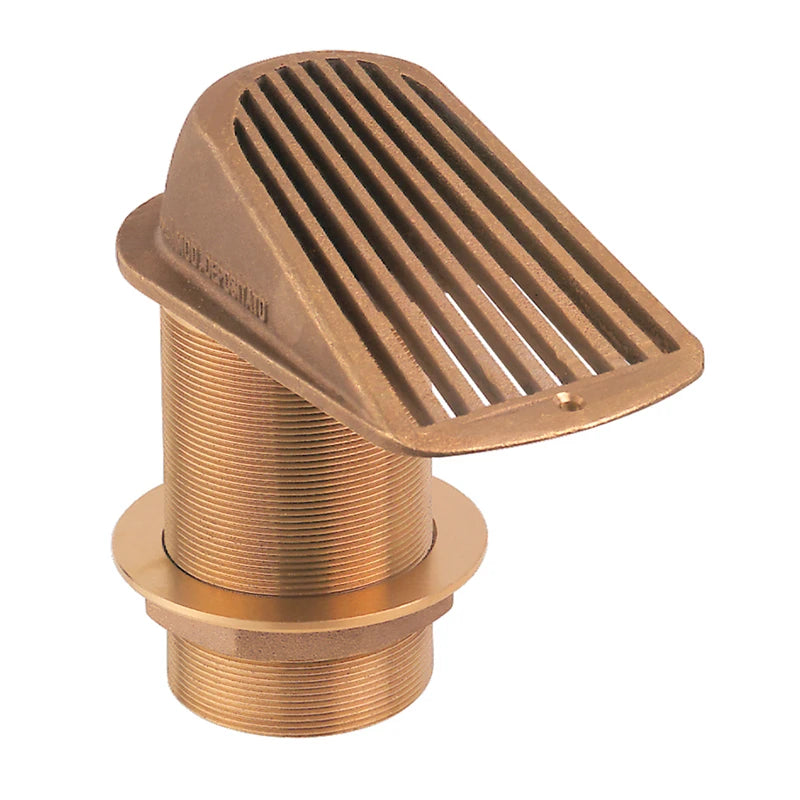

GuidiGuidi Strainer "2000" - G 3/4''
Guidi Ansaugkorb „2000“ - G 3/4''
Victron Phoenix Inverter 24/3000 230V Smart
Victron EnergyVictron Phoenix Inverter 24/3000 230V Smart
Johnson Umwälzpumpe C090P5-12V
€307,13
€307,13

  • Continuous-duty design with ball-bearing permanent magnet motor – low-maintenance and long-lasting
  • Processes water-glycol mixtures up to 60% – perfect for heating and cooling circuits
  • Wide temperature range from -30 °C to +100 °C for versatile use
  • Mechanical shaft seal and stainless steel shaft for permanently tight, corrosion-resistant function
  • Universal bracket allows flexible mounting in various positions
  • Hose connection Ø 38 mm (1½") for common onboard installations

Pump Housing PA66, Thermoplastic
Impeller PA66, Thermoplastic
Shaft Stainless steel
Shaft Seal Mechanical seal
Voltage 12 V / 24 V DC
Power Consumption 100 W
Protection Class IP31
Motor Type Permanent magnet, ball bearing
Operating Mode Continuous operation
Liquids Fresh water, water-glycol mixture (max. 60 % glycol)
Liquid Temperature −30 °C to +100 °C
Maximum System Pressure 2.0 bar
Hose Connection Ø 38 mm (1½")
Dry Run Not permitted
Mounting Universal bracket, flat mounting
Length 211 mm
Width 117 mm
Height 110 mm (from base plate: 116 mm)
Weight 1.75 kg

Johnson Pump

Gewicht (ca.): 1.86 kg
