By Johnson Pump

Johnson Impeller Pump F8B-5001

€851,24
€851,24
Tax included.

Full pump performance at the push of a button – without being at the pump: The Johnson Pump F8B-5001 is a robust impeller pump for heavy-duty marine use with an electromagnetic clutch. The bronze pump housing, the stainless steel shaft with double ball bearings and the mechanical seal ensure reliable continuous operation even under demanding conditions.

Tip: The electromagnetic clutch must be ordered separately. For optimum protection of the pump when used as a bilge pump, we also recommend the matching vacuum switch (available as an accessory).
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-13022-99
Product group:
category:
equipment

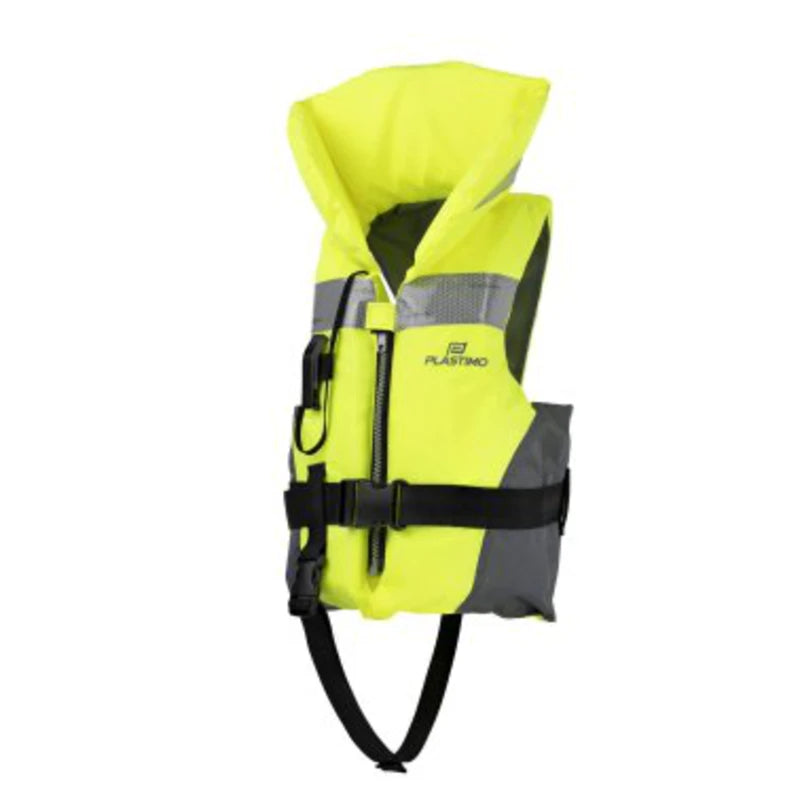

PlastimoPlastimo KID FOAM LIFE JACKET
Plastimo KID FOAM LIFE JACKET

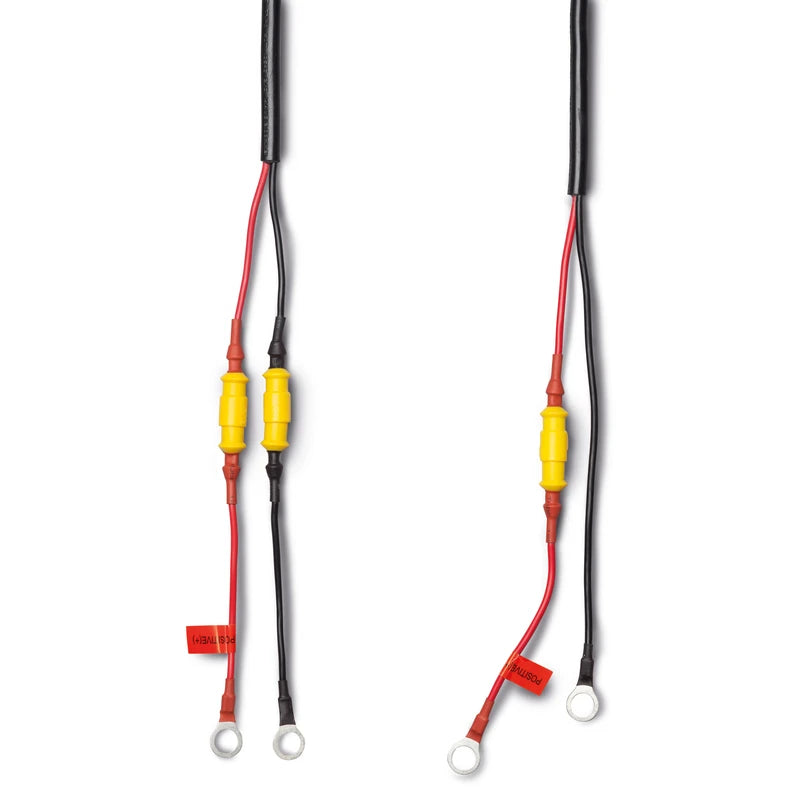

Mastervolt Easy Charge 10A-2
MastervoltMastervolt Easy Charge 10A-2
Johnson Impellerpumpe F8B-5001
€851,24
€851,24

  • Electromagnetic clutch (12/24 V DC) – engage the pump at the push of a button, completely without manual intervention
  • Dry-run protection: In conjunction with a vacuum switch, the clutch automatically disengages as soon as the pump draws air
  • Robust bronze housing with stainless steel shaft and permanently lubricated double ball bearings for a long service life
  • Mechanical seal and easily replaceable wear parts – service kit (09-45575) and impeller kit (09-819B) available
  • 1½" BSP connection and connection for vacuum switch already integrated

Model F8B-5001
Pump Body Bronze
Shaft Stainless Steel, permanently lubricated double ball bearings
Seal Mechanical seal
Cam Full or partial cam
Port Size 1½" BSP
Clutch Electromagnetic, 12/24 V DC (to be ordered separately)
Pulley 2×A or 1×B-Groove
Pulley Dia. 178 mm
Impeller 09-819B
Weight 9.9 kg
Length 225 mm
Height 160 mm
Width 124 mm
Service Kit 09-45575
Impeller Kit 09-819B

Johnson Pump

Gewicht (ca.): 6.02 kg
