By Johnson Pump

Johnson HD-Bilge Pump L4000/12V

€286,74
€286,74
Tax included.

When it comes to getting a lot of water out of the hull quickly, the Johnson HD bilge pump L4000 is your choice. It pumps up to 252 l/min (4000 GPH) and is designed for heavy-duty use in both recreational and commercial marine applications. The liquid-cooled 12-pole motor with double ball bearings ensures durability even under the toughest conditions.

Tip: Protect the pump with a 25 A fuse and use cables with a minimum cross-section of 2 mm² – this ensures the system is safe even at full load and with long cable runs.
brand: Johnson Pump
Availability: In stock
SKU: OB-BB-32-4000-01
Product group:
category:
equipment

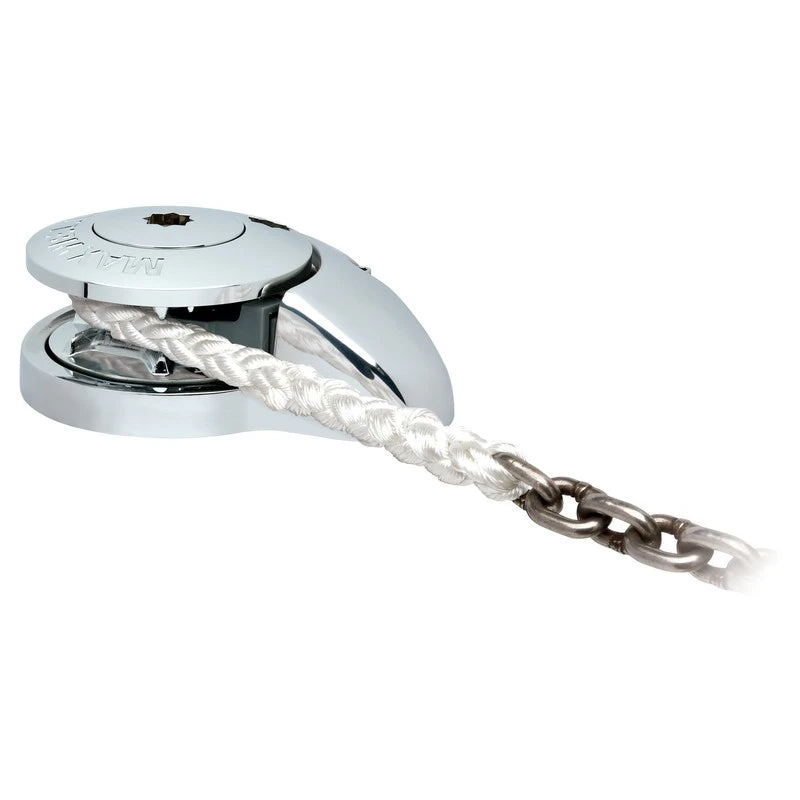

VetusMaxwell vert. Windlass without Capstan RC8-8, 12V
Maxwell verti. Ankerwinde ohne Spill RC8-8
UAB Yanmar 4JH Adapterkabel
Yacht DevicesUAB Yanmar 4JH Adapter Cable
Johnson HD-Bilgenpumpe L4000/12V
€286,74
€286,74

  • Flow rate up to 252 l/min (4000 GPH) at 0 m head – reliably moves large volumes of water
  • Liquid-cooled 12-pole motor with double ball bearings for significantly extended lifespan
  • Mechanical shaft seal prevents wear and allows for easy maintenance and replacement
  • Two output ports (1½″ / 38 mm and 2″ / 50 mm) for flexible installation on board
  • Stainless steel shaft (SS2343) for maximum corrosion resistance in saltwater use

Flow rate (0 m head, 13.6 V) 252 l/min – 4000 GPH
Flow rate (0.9 m head, 13.6 V) 164 l/min – 2600 GPH
Voltage 12 V
Current consumption 15 A
Recommended fuse 25 A
Cable length 1.8 m
Cable diameter 2 mm²
Connection 1½″ (38 mm) and 2″ (50 mm)
Motor type 12-pole, liquid-cooled, double ball bearing
Shaft seal Mechanical, serviceable
Shaft material Stainless steel SS2343
Maximum diameter 121 mm
Maximum height 216 mm
Weight 2.45 kg

Johnson Pump

Gewicht (ca.): 2.89 kg
