By Johnson Pump

Johnson Aqua-Jet WPS 2.4 Pump 24V/2.8bar/9L

€117,37
€117,37
Tax included.

Quiet water on board, without annoying pulsation: The Aqua-Jet WPS 2.4 from Johnson Pump is a 5-chamber diaphragm pump that delivers significantly quieter and more consistently than conventional three or four-chamber models. With 9 l/min and a shut-off pressure of 2.8 bar, it reliably supplies sinks, showers, and galleys in small boats and recreational vehicles.

Tip: Be sure to operate the pump with an upstream PumProtector™ inlet filter (Inlet Strainer) to keep out dirt particles – the filter is not included. A downstream accumulator tank further reduces the switching frequency and extends the pump's lifespan.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-24604-04
Product group:
category:
equipment
VetusVetus Plastic Rainwater Collector
Vetus Kunststoff Wassersammler
Philippi STV 204 Stromkreisverteiler

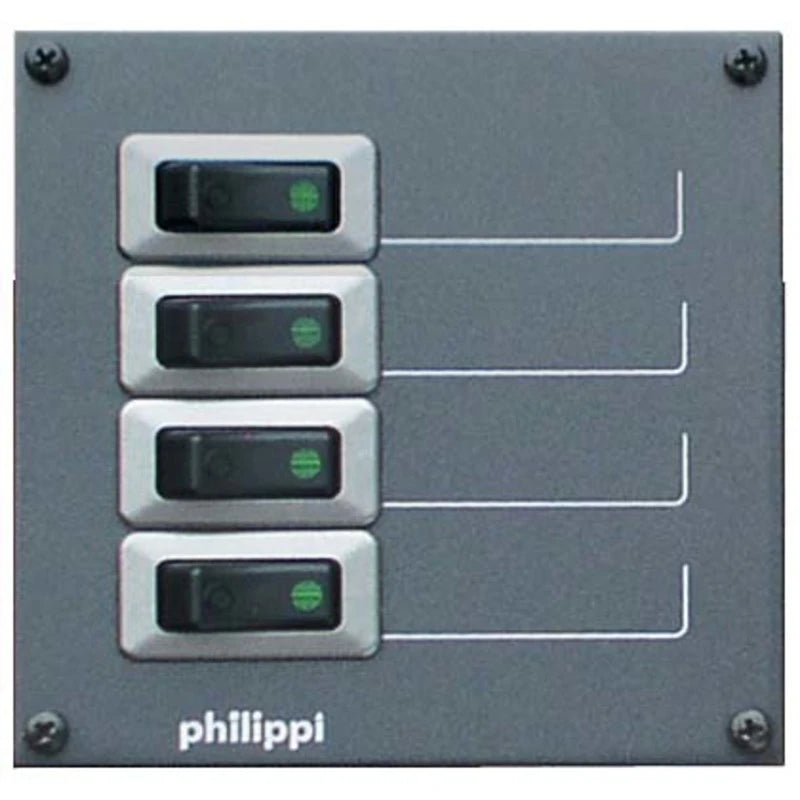

philippiPhilippi STV 204 Circuit Distributor
Johnson Aqua-Jet WPS 2.4 Pumpe 24V/2
€117,37
€117,37

  • 5-chamber diaphragm principle – noticeably less noise and water pulsation than with 3- or 4-chamber pumps
  • 9 l/min flow rate at 2.8 bar shut-off pressure – sufficient pressure for galley, sink, and shower
  • Santoprene diaphragm and EPDM valves – durable and seawater resistant
  • Compact housing made of PP/PPA – lightweight (1.6 kg) and space-saving
  • 24V version – ideal for larger boats and vehicles with 24V electrical systems

Voltage 24 V
Motor power 85 W
Flow rate 9 l/min (2.4 GPM)
Shut-off pressure 2.8 bar (41 PSI)
Shut-off pressure (alternative, on request) 2.1 bar (30 PSI) / 1.4 bar (20 PSI)
Chambers 5
Diaphragm material Santoprene
Valve material EPDM
Housing material PP/PPA
Fuse 5 A
Connection ¼″ BSP / Hose ½″ and ½″ BSP / Hose ¾″ (NPT on request)
Length 204 mm
Width 197 mm
Height 110 mm
Weight 1.6 kg

Johnson Pump

Gewicht (ca.): 2.0 kg
