By Hella Marine

Hella Topp-Deck Combination 2984 Black

€167,31
€167,31
Tax included.

Two functions, one device: The Hella Marine Series 8504 combines a 2-NM masthead light and a powerful deck floodlight in a single, robust housing. This saves space on the mast while still maintaining full lighting performance – approved for vessels up to 20 m in length.

The deck floodlight is not suitable for 100W incandescent bulbs – observe maximum power (12 V / 55 W or 24 V / 70 W). Use appropriate bulbs for 24 V electrical systems; the bulbs included (12 V / 10 W BAY15d and 12 V / 55 W H3) are designed for 12 V systems.
brand: Hella Marine
Availability: Low stock
SKU: OB-BB-2LT 998 504-001
Product group:
category:
electrical system

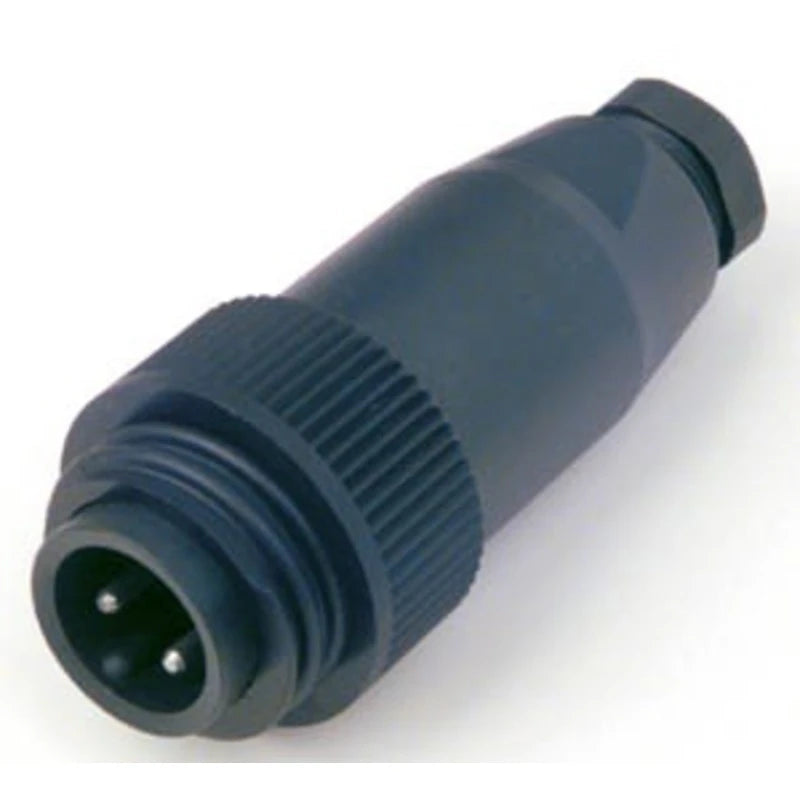

philippiPhilippi Series 692 2-pin connector
Philippi Serie 692 Kupplungsstecker 2 pol.

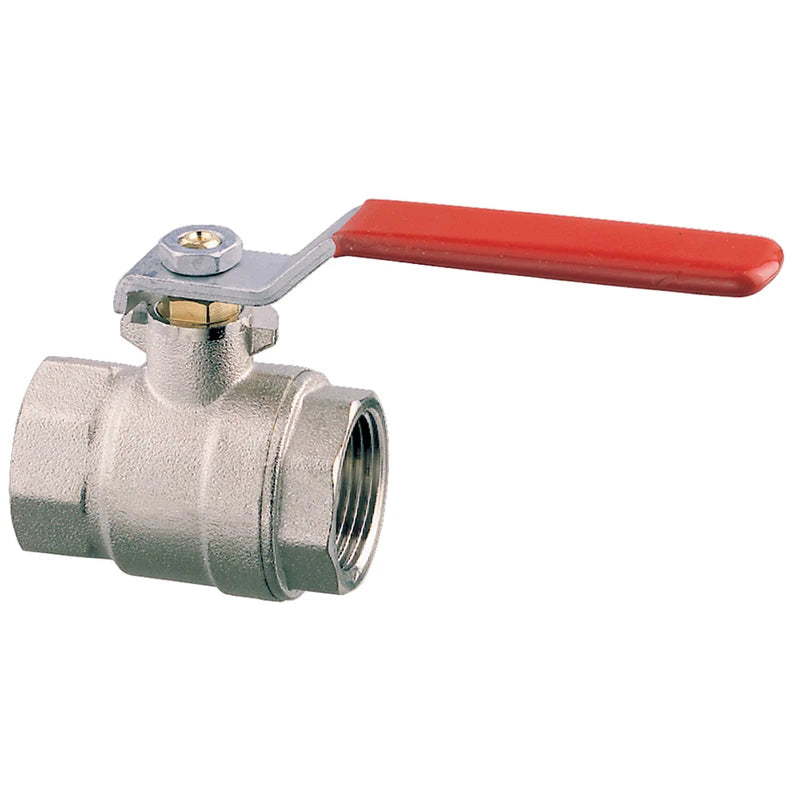

Guidi Kugelhahn FF - G 2''
GuidiGuidi ball valve FF - G 2''
Hella Topp-Deck-Kombination 2984 schwarz
€167,31
€167,31

  • Toplight (2 NM) and deck floodlight combined – less installation effort, clean mast appearance
  • Approved for vessels up to 20 m in length overall – compliant with international collision regulations
  • Hella Marine free-form reflector technology for even and wide-area illumination
  • Flexible mounting tabs for quick installation on almost any mast profile
  • All metal parts made of 316 stainless steel – permanently corrosion-resistant even in saltwater environments
  • Deck floodlight lens protected against dust and moisture (IPX4)

Model Name Series 8504, Part No. 2LT 998 504-001
Masthead Light 2 NM, 12 V / 10 W, BAY15d base
Deck Floodlight 12 V / 55 W or 24 V / 70 W, H3 base
Approval Vessels up to 20 m in length overall
Protection Degree IPX4
Connection Masthead Light Combined screw and spade terminals 6.3 mm
Connection Deck Floodlight Spade terminals 6.3 mm
Metal Parts Stainless steel 316
Housing Material Impact-resistant, UV-resistant and dimensionally stable plastic
Reflector Technology Hella Marine Free-Form Reflector
Color Black
Note Not suitable for 100W bulbs

Hella Marine

Gewicht (ca.): 1.08 kg
