By Hella Marine

Hella Push Button Switch 24V Blue

€45,11
€45,11
Tax included.

Switch with style and safety: This push-button switch from the Hella Marine 8455 series combines a robust stainless steel look with practical LED lighting. The colored light ring shows you at a glance whether the circuit is active - ideal for any switch panel on board.

Tip: The light ring can be wired either to light up when supply voltage is applied or only when the switch is operated - read the wiring diagram carefully to choose the most suitable function for you.
brand: Hella Marine
Availability: Low stock
SKU: OB-BB-8HG 958 455-311
Product group:
category:
electrical system

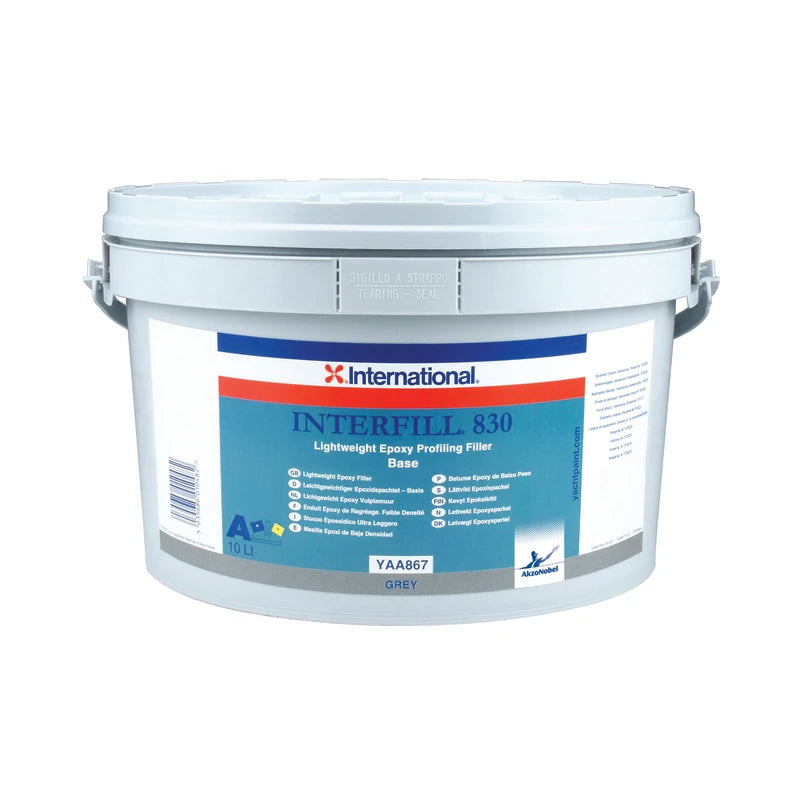

International YachtfarbenInternational Interfill 830 Base 10.0L Grey
International Interfill 830 Basis 10

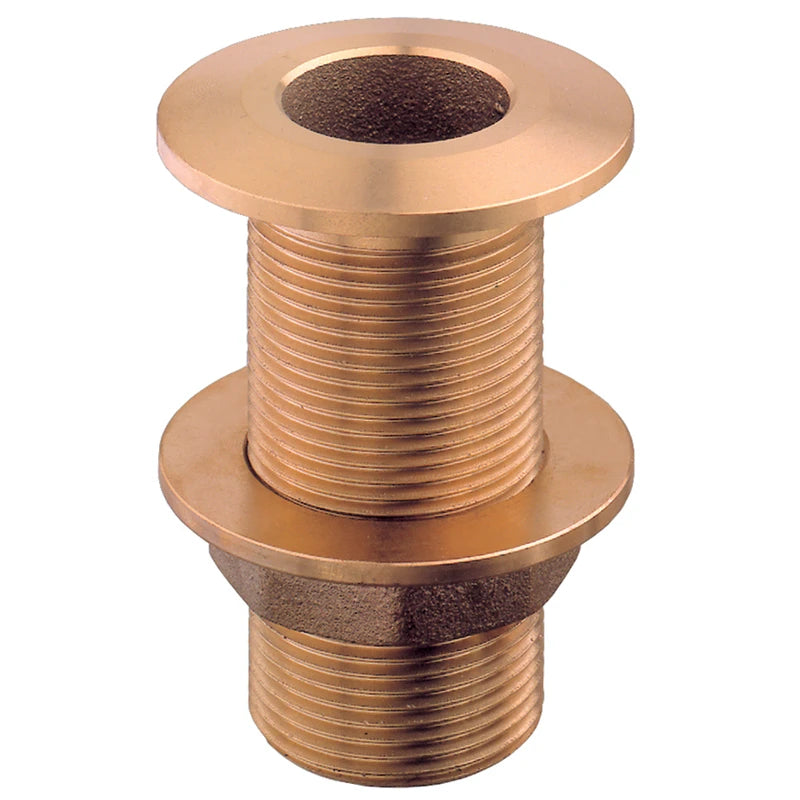

Guidi Borddurchlass abgerundet - G 1/2''
GuidiGuidi rounded thru-hull fitting - G 1/2''
Hella Tastschalter 24V blau
€45,11
€45,11

  • 304 Stainless Steel Body and 316 Stainless Steel Illuminated Ring - Permanently corrosion-resistant
  • IP67 Rated When Installed - Waterproof for indoor and outdoor applications
  • Blue LED Illuminated Ring configurable as power or activation indicator
  • Silver Plated Contacts for reliable connection and long life cycle
  • 5-Pin Terminal compatible with panel thickness from 1-10mm
  • Matching Warning Buzzer Module available in identical design

Part number 8HG958455311
Series Hella Marine 8455
Voltage 24 V
Light color Blue
Housing material 304 stainless steel
Light ring material 316 stainless steel
Contacts Silver plated
Switch connection 5-pin, 2.8 × 0.5 mm
Buzzer connection 2 screw terminals
Panel thickness 1–10 mm
Max. load capacity 5 A
Protection class switch (installed) IP67
Protection class buzzer IP50
Operating temperature -20 °C to +55 °C
Insulation resistance > 1000 mΩ
Buzzer volume > 80 dB (1 m)

Hella Marine

Gewicht (ca.): 0.04 kg
