By Hella Marine

Hella On/Off Switch 24V Blue

€45,11
€45,11
Tax included.

Robust stainless steel switch with illuminated LED ring for the onboard switch panel: The Hella Marine Series 8455 switch combines maritime aesthetics with true saltwater resistance. It shows you at a glance whether a consumer is active or voltage is present – and, thanks to its stainless steel housing and IP67 protection, it can withstand continuous splashing.

Tip: When installing, ensure a clean cut-out size – IP67 watertightness only applies when installed. For a complete warning system, the matching Hella Marine buzzer in an identical design can be installed right next to it.
brand: Hella Marine
Availability: Low stock
SKU: OB-BB-8HG 958 455-111
Product group:
category:
electrical system

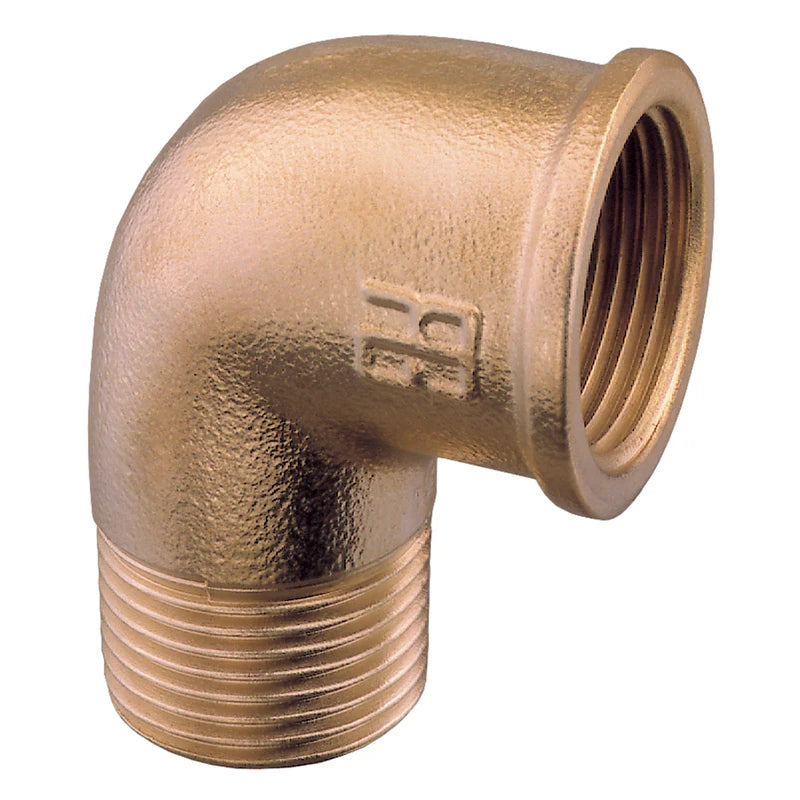

GuidiGuidi 90° Elbow MF - G 1''1/2
Guidi 90° Winkelstück MF - G 1''1/2

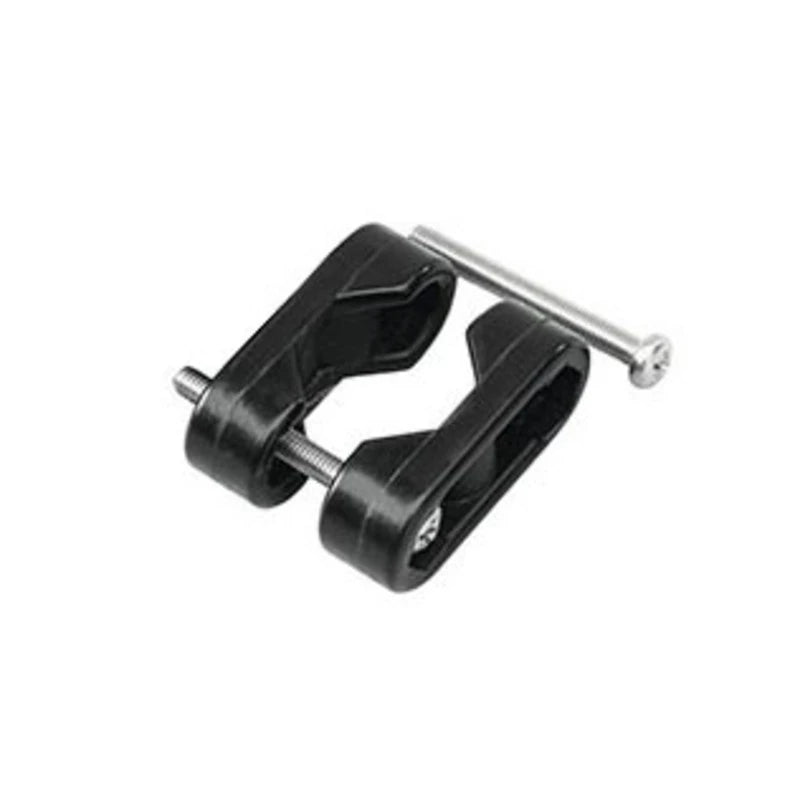

PLASTIMO NYLON CLIPS FOR FIXING ON TUBE
PlastimoPLASTIMO NYLON CLIPS FOR FIXING TO TUBES
Hella Ein/Aus Schalter 24V blau
€45,11
€45,11

  • LED light ring selectable as voltage or activation indicator – immediately visible in the cockpit
  • Housing made of 316 stainless steel, installation housing made of 304 stainless steel – corrosion-resistant even in saltwater environments
  • Protection class IP67 after installation – waterproof inside and out
  • Silver-plated contacts for consistently low contact resistance
  • Matching warning buzzer available in identical design – uniform switch panel
  • Wide temperature range from –20 °C to +55 °C for year-round use

Part number 8HG 958 455-111
Series Hella Marine 8455
Operating voltage 24 V
Light ring color Blue
Switching function On/Off
External housing material Stainless steel 316, rustproof
Mounting housing material Stainless steel 304, rustproof
Contacts Silver-plated
Switch connection 5-pin, 2.8 × 0.5 mm
Max. load capacity 5 A
Protection class (installed) IP67
Panel thickness 1–10 mm
Operating temperature –20 °C to +55 °C
Insulation resistance > 1000 MΩ
Light ring mode Voltage indicator or activation indicator (selectable)
Suitable buzzer protection class IP50
Suitable buzzer volume > 80 dB (1 m)
Suitable buzzer connection 2 screw terminals

Hella Marine

Gewicht (ca.): 0.04 kg
