By Crosseven

Crosseven Single-Pole Battery Switch Black

€37,59
€37,59
Tax included.

Power off – at the touch of a button and at any time. With this single-pole battery switch from Crosseven, you can disconnect your circuit manually, quickly, and safely – whether leaving the boat, during maintenance, or in an emergency. The robust design with IP66 protection and generously dimensioned copper connections makes it a reliable partner on board.

Tip: Make sure there is at least 47 mm of free space behind the mounting wall. The partition thickness must not exceed 18 mm – you should measure this before drilling.
brand: Crosseven
Availability: In stock
SKU: OB-BB-P204675
Product group:
category:
electrical system

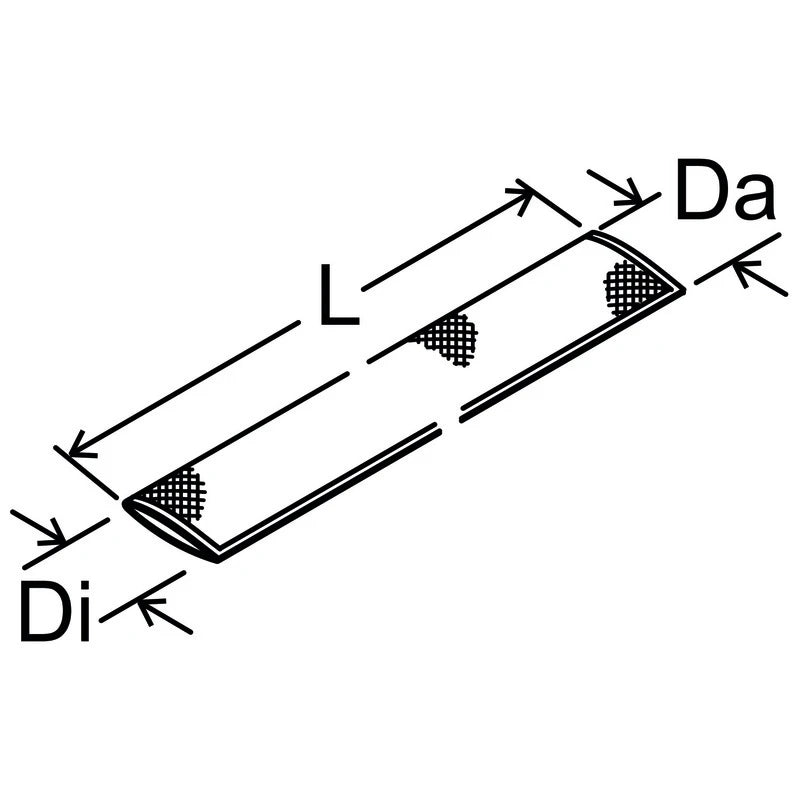

WebastoWebasto Insulation L_1700
Webasto Isolierung L_1700
Guidi 90° Schlauchverbinder M - G 1''
GuidiGuidi 90° Hose Connector M - G 1''
Crosseven Einpoliger Batterieschalter schwarzer
€37,59
€37,59

  • Manually and safely disconnects the circuit – ideal for maintenance and layups
  • High continuous current rating of 300 A and up to 1000 A momentary for 10 seconds
  • Wide voltage range 12–48 V DC – compatible with most onboard electrical systems
  • IP66 protection rating – protected against strong water jets and splashes
  • Extra-long copper studs (Ø 9.8 mm × 25 mm) for secure cable connections
  • Certified to NF EN 28846 (ISO 8846) – ignition-protected design

Voltage 12–48 V DC
Continuous Rating 300 A
Intermittent Rating 1000 A / 10 sec.
Protection Class IP66
Standard NF EN 28846 (ISO 8846)
Color Black
Connections 2 copper studs Ø 9.8 mm × length 25 mm
Dimensions Ø base 68 mm × Ø handle 80 mm × length 100 mm
Mounting holes Ø 8 mm, hole spacing 45 mm
Mounting dimension (hole diameter) Ø 23 mm
Panel thickness (max.) 18 mm
Available space behind panel 47 mm

Crosseven
