By BukhPro

BUKH PRO ASFA Hose Clamp 90 - 110 mm - W4

€5,54
€5,54
Tax included.

Keeps tight where it counts: This ASFA hose clamp from BUKH PRO reliably secures hoses with a diameter range of 90 to 110 mm against pressures up to 12 bar. The W4 version stands for high material quality and is therefore ideally suited for tough on-board use in salt and fresh water conditions.

Tip: Do not exceed the maximum tightening torque of 7 Nm – a torque wrench prevents damage to the hose and ensures a uniform, tight clamping fit.
brand: BukhPro
Availability: In stock
SKU: OB-BB-03014596
Product group:
category:
Engine technology

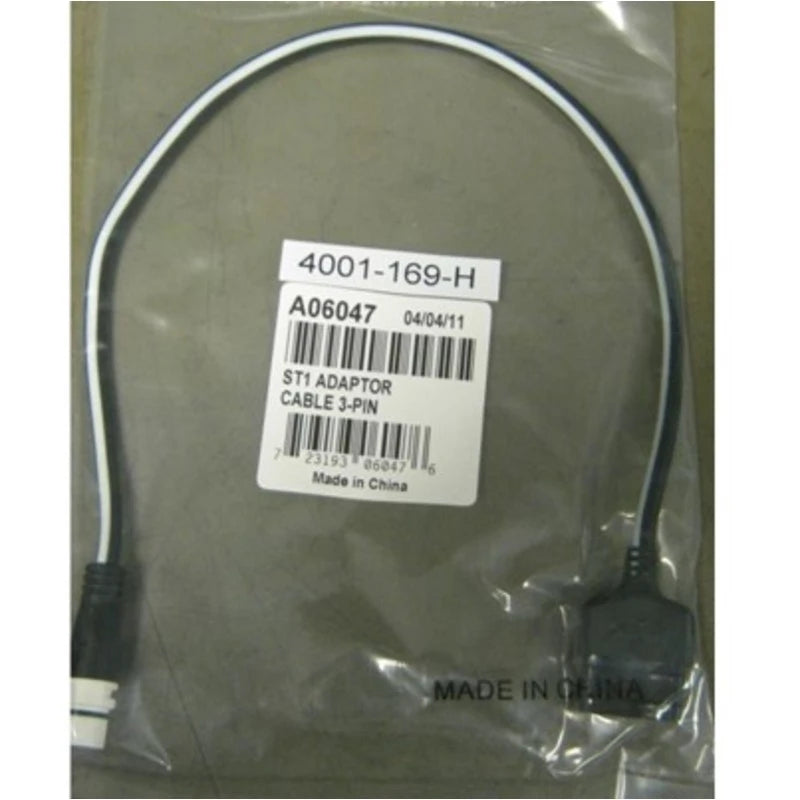

RaymarineRaymarine STNG Spur Adapter Cable
Raymarine STNG Spur Adapter-Kabel

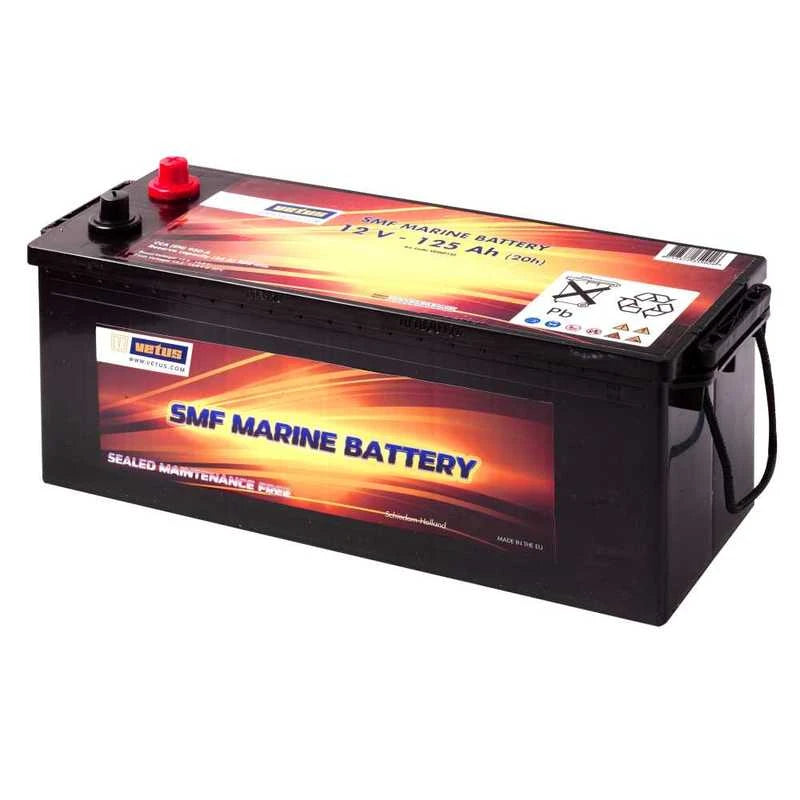

Vetus Marine Batterie 125AH/12V CCA A (EN) 950
VetusVetus Marine Battery 125AH/12V CCA A (EN) 950
BUKH PRO ASFA Schlauchschelle 90 - 110 mm - W4
€5,54
€5,54

  • Clamps securely in the ø 90–110 mm range – suitable for common onboard and engine hoses
  • Withstands pressures up to 12 bar – reliable even on connections close to the engine
  • W4 design for permanent use in humid, corrosive environments
  • Defined tightening torque of max. 7 Nm – no overtightening, secure fit
  • Compact band width L max. 29.6 mm for space-saving installation

Clamping range ø 90–110 mm
Bandwidth (L max.) 29.6 mm
Strap thickness (S +0.10) 0.85 mm
Housing height (h max.) 11 mm
Dimension a (+0.3 / −0.1) 12.2 mm
Dimension b (max.) 16.7 mm
Max. tightening torque 7 Nm
Max. pressure 12 bar
Version W4
Series ASFA
Brand BUKH PRO

BukhPro
