By BukhPro

BUKH PRO ASFA Hose Clamp 70 - 90 mm - W4

€6,20
€6,20
Tax included.

Reliable where a tight fit is crucial: The BUKH Pro ASFA hose clamp in W4 version securely holds hose connections on board under tension – from the cooling water line to the fuel hose. The clamping range of 70 to 90 mm covers common hose sizes in the engine compartment and on-board area.

Tip: When tightening, gradually tighten the screw to a maximum of 7 Nm – too high a torque can damage the hose end. When installing in hard-to-reach areas, a hose clamp driver with torque limitation is recommended.
brand: BukhPro
Availability: In stock
SKU: OB-BB-03014570
Product group:
category:
Engine technology
PlastimoPLASTIMO TRANSOCEAN ISO 6P LIFE RAFT <24H Container
PLASTIMO RETTUNGSINSEL TRANSOCEAN ISO 6P <24H Cont
Ritchie Helmsman

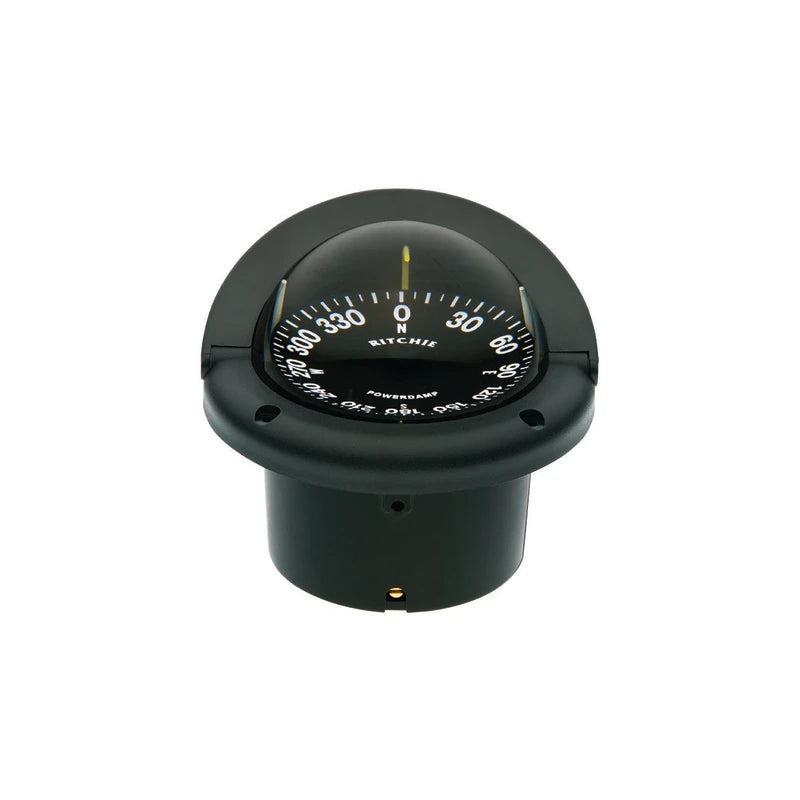

Ritchie NavigationRitchie Helmsman, Flush, Black, Black Open dial
BUKH PRO ASFA Schlauchschelle 70 - 90 mm - W4
€6,20
€6,20

  • Clamping range 70–90 mm – fits many standard hoses on board
  • W4 version – entirely made of stainless steel for maximum corrosion resistance in saltwater environments
  • Maximum tightening torque 7 Nm and pressure resistance up to 17 bar for a secure, permanent hold
  • Compact band width of 11 mm high – can also be used in confined spaces
  • ASFA standard – proven quality clamp with defined dimensional tolerances

Clamping range (Ø) 70–90 mm
Band length (L max.) 29.6 mm
Band thickness (S +0.10) 0.85 mm
Band width (h max.) 11 mm
Dimension a (+0.3 / −0.1) 12.2 mm
Dimension b (max.) 16.7 mm
Max. tightening torque 7 Nm
Max. pressure 17 bar
Version W4 (fully stainless steel)
Standard ASFA

BukhPro
