By BukhPro

BUKH PRO ASFA Hose Clamp 40 - 60 mm - W4

€4,92
€4,92
Tax included.

Secure hold for hoses on board: This stainless steel hose clamp from BUKH PRO's ASFA series reliably clamps onto outer hose diameters between 40 and 60 mm. With a maximum operating pressure of 30 bar, it is designed for demanding applications in the engine compartment, cooling water circuit, or on fuel lines.

Tip: Tighten the clamp with a calibrated torque wrench to exactly 6.5 Nm – overtightening can damage the hose, while undertightening will lead to leaks.
brand: BukhPro
Availability: Low stock
SKU: OB-BB-03014545
Product group:
category:
Engine technology

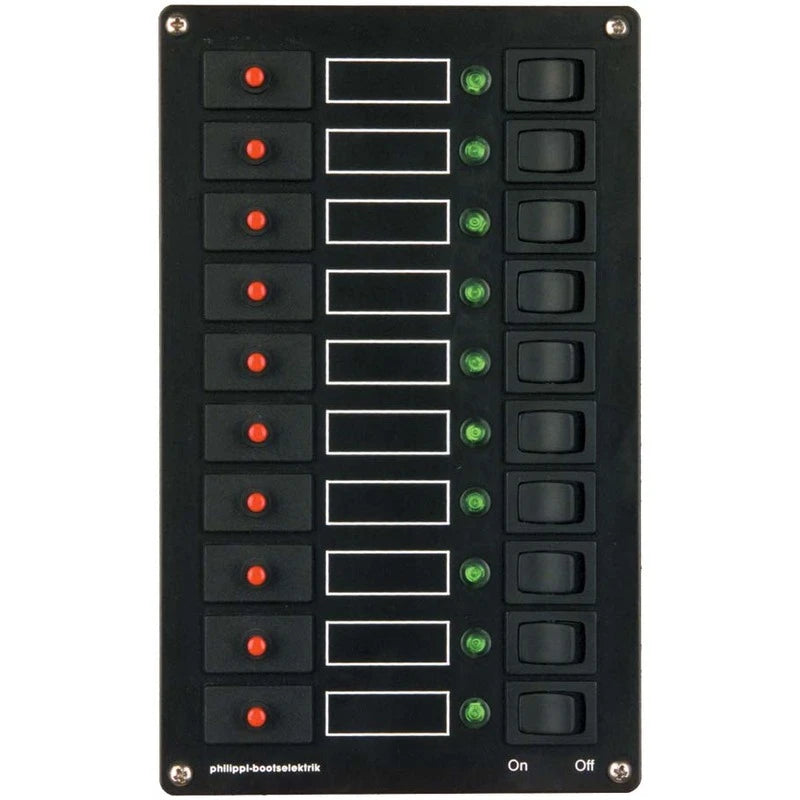

philippiPhilippi STV 110 Circuit Breaker Panel
Philippi STV 110 Stromkreisverteiler

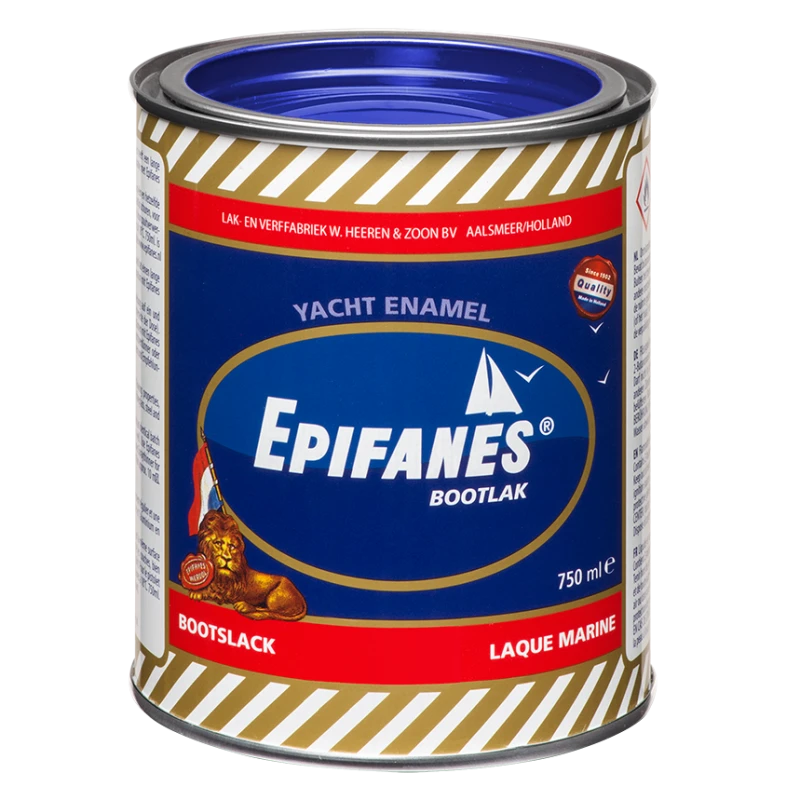

EPIFANES Bootslack Seegrün Nr.30 750ml
EpifanesEPIFANES Yacht Paint Sea Green No. 30 750ml
BUKH PRO ASFA Schlauchschelle 40 - 60 mm - W4
€4,92
€4,92

  • Wide clamping range 40–60 mm – fits many common board hoses
  • Maximum operating pressure 30 bar – suitable for pressure-carrying lines
  • W4 design – corrosion-resistant even in humid and salty environments
  • Tightening torque 6.5 Nm for defined, hose-friendly tightening
  • Compact band width h max. 11 mm – can also be used in confined spaces

Clamping range Ø 40–60 mm
Band width h max. 11 mm
Band length L max. 29.6 mm
Band thickness S (+0.10) 0.85 mm
Dimension a (+0.3 / −0.1) 12.2 mm
Dimension b max. 16.7 mm
Max. tightening torque 6.5 Nm
Max. operating pressure 30 bar
Version W4
Series ASFA
Brand BUKH PRO
