By Blue Sea

Blue Sea SafetyHub 100 Fuse Block

€182,94
€182,94
Tax included.

Seven circuits, one compact block: The SafetyHub 100 from Blue Sea combines an ignition-protected fuse block and an integrated connector in a single component. It reduces loose cable connections to a minimum and is explicitly approved for use on gasoline and diesel-powered boats.

Tip: Fuses (MIDI®/AMI® and ATO®/ATC®) are not included – select the amperage to match the respective loads and keep spare fuses directly on board.
brand: Blue Sea
Availability: Low stock
SKU: OB-BB-7725-BSS
Product group:
category:
electrical system

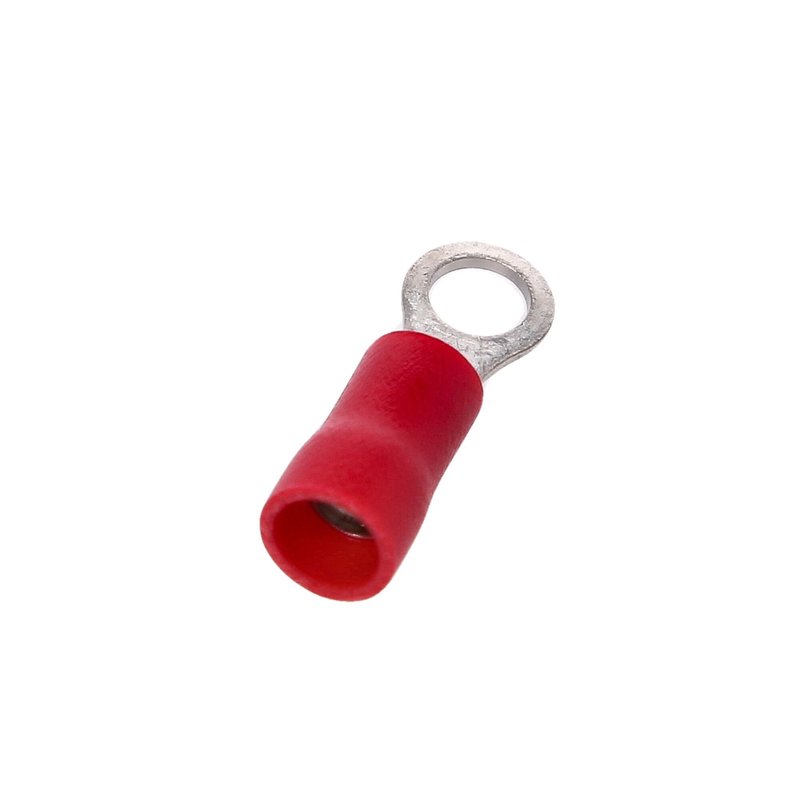

CrossevenCrosseven Insulated Ring Terminals Red ø6 mm
Crosseven

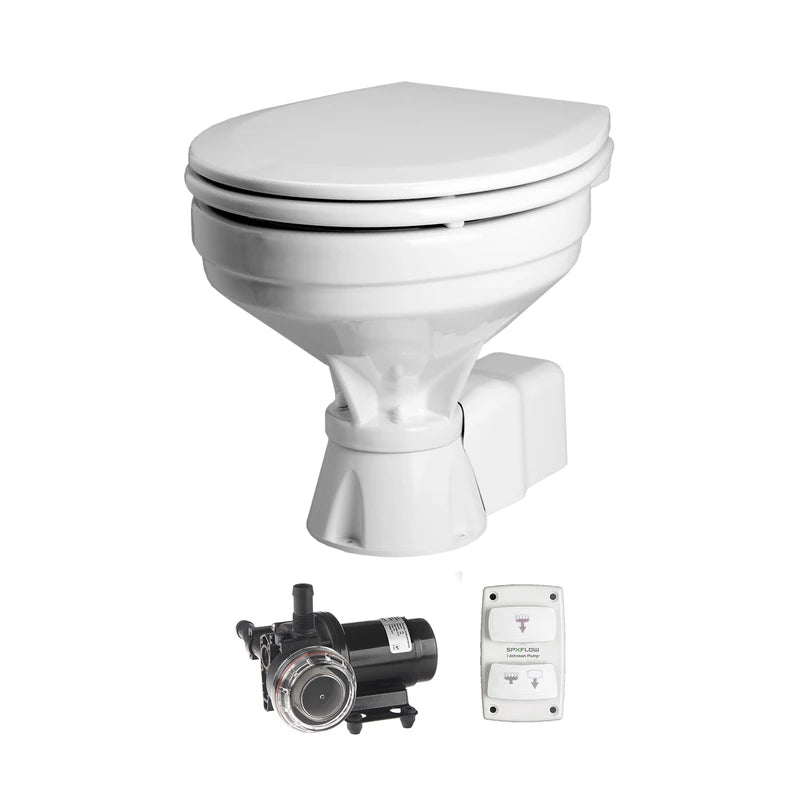

Johnson AquaT Silent Electric Comfort 12V
Johnson PumpJohnson AquaT Silent Electric Comfort 12V
Blue Sea SafetyHub 100 Sicherungsblock
€182,94
€182,94

  • Consolidates up to seven fused circuits into a compact block – fewer connections, more clarity
  • Three MIDI®/AMI® fuse positions (30–200 A) for high-power loads such as windlasses and panel feeds
  • Four ATO®/ATC® fuse positions (1–20 A) for smaller circuits such as bilge pumps, alarms, and clock memory
  • IP66 rating – sealed cover reliably protects against strong water jets and the harsh marine environment
  • Integrated connector plug ensures a secure, watertight cable connection without loose wiring harness
  • Ignition protected design meets Coast Guard and ABYC requirements for gasoline and diesel powered boats

Total fuse positions 7
MIDI®/AMI® positions 3 × (30–200 A)
ATO®/ATC® positions 4 × (1–20 A)
Protection class IP66
Design Ignition Protected
Certifications Coast Guard, ABYC
Application Gasoline and diesel powered boats
Special feature Integrated connector, waterproof connection

Blue Sea
