By Blue Sea

Blue Sea DC Digital Multifunction Meter

€403,48
€403,48
Tax included.

Keep an eye on everything happening in your DC network: The Blue Sea DC Digital Multifunction Meter precisely displays voltage and current on an easy-to-read screen – and immediately warns you acoustically and visually if critical values are exceeded or fallen short of. Ideal for any on-board application where you want to reliably monitor your electrical system.

Tip: If you want to monitor multiple sources (solar, alternator, shore power) separately, plan for a separate shunt for each source and use the Shunt Shifter for all installations on the positive side.
brand: Blue Sea
Availability: Low stock
SKU: OB-BB-8248-BSS
Product group:
category:
electrical system

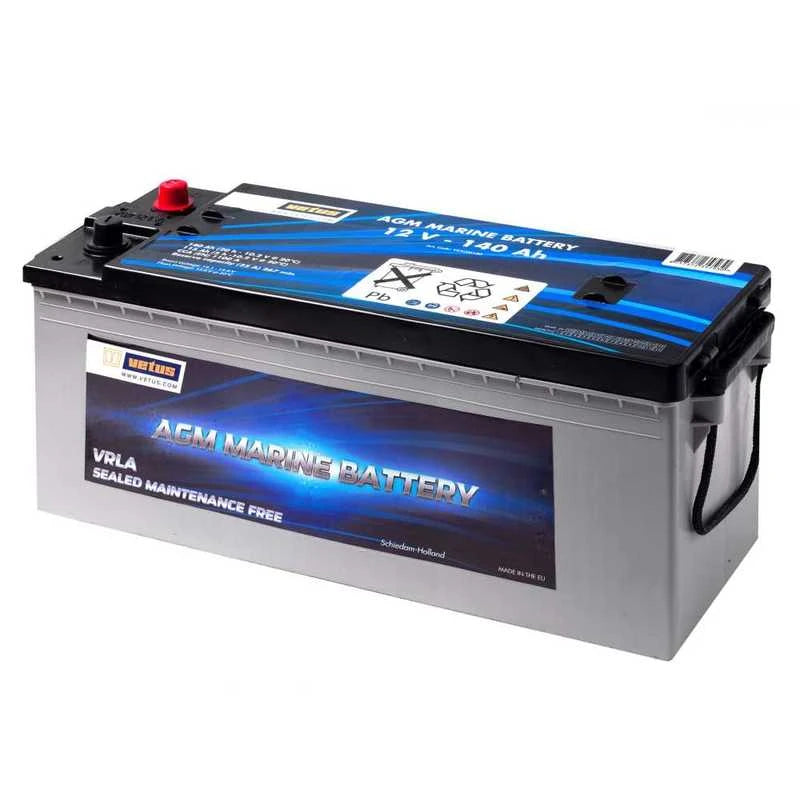

VetusVetus AGM Battery 12V/140Ah
Vetus AGM-Batterie 12V/140Ah
Crosseven Kabelbinder (4
CrossevenCrosseven Cable Ties (4.8x400mm) Black
Blue Sea
€403,48
€403,48

  • Measures currents from −500 to +500 A – detects charging and discharging in one device
  • Voltage display from 0 to 60 V in 0.01 V increments for high measurement accuracy
  • High and low voltage alarms, audible and visual – you will be warned immediately
  • 3 levels of display brightness – always easy to read, even in bright sunlight
  • Programmable sleep mode switches off the display, saving onboard power
  • Splash-proof front for tough use on board

Current measurement range −500 to +500 A
Voltage measurement range 0 to 60 V
Voltage resolution 0.01 V
Alarms High and low voltage, audible and visual
Display brightness 3 levels adjustable
Sleep mode Programmable display shutdown for power saving
Front panel protection rating Splash-proof
Standard installation Negative side of the circuit
Positive-side installation Shunt-shifter required (not included)

Blue Sea
