By BEP

BEP Ultrasonic Tank Sender TS1

€195,69
€195,69
Tax included.

No more mechanical floats that jam or fail: The BEP TS1 measures the level in your tank contact-free using ultrasound – precisely to within 2 mm. It sits on top of the tank, has no contact with the liquid and works equally well with fresh water, diesel, petrol, grey water and black water.

Important: The TS1 is factory-set to 0–2,000 mm and is not suitable for tanks with a depth of less than 200 mm. For individual tank shapes (e.g. conical or L-shaped tanks), calibration with the optional TS1-PK programming kit and BEP PC software is recommended – this avoids inaccurate readings without time-consuming filling.
brand: BEP
Availability: Low stock
SKU: OB-BB-TS1-BEP
Product group:
category:
electrical system
EnoEno Pot Holder Set for KOS
EnoTopfhalterset für KOS

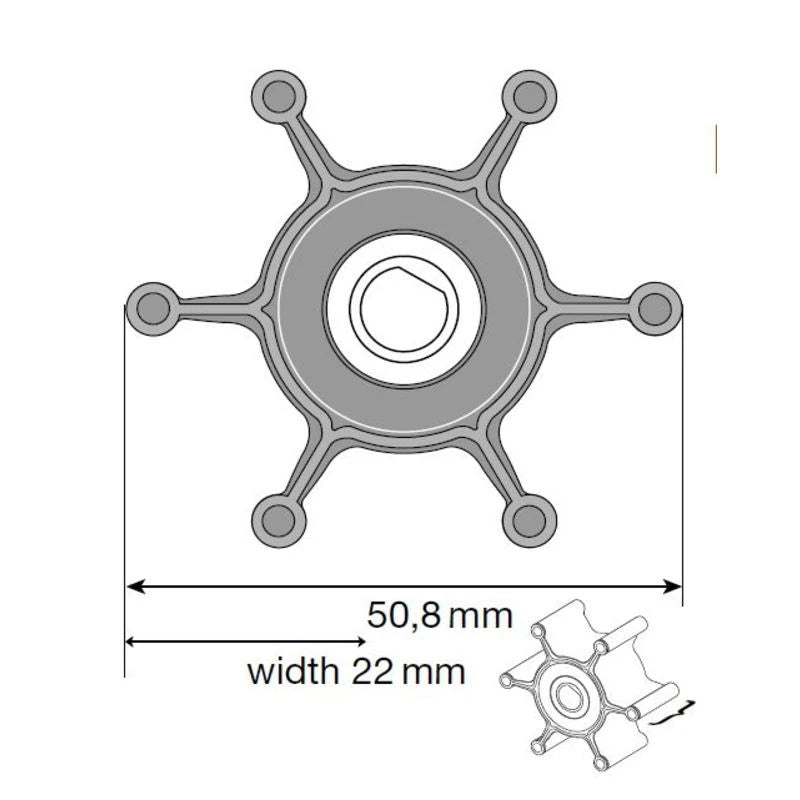

Johnson Impeller für F4 Pumpe
Johnson PumpJohnson Impeller for F4 Pump, MC97/EPDM
BEP Ultraschall Tankmessgeber TS1
€195,69
€195,69

  • Non-contact ultrasonic measurement – no moving parts, no jamming, no wear
  • Universally compatible: supports 240-33 Ω, 10-180 Ω, Vetus 10-300 Ω outputs, and 0-5 V for instruments from BEP, Teleflex, Faria, VDO, and many more
  • High accuracy of ±2 mm over the entire measuring range up to 2,000 mm tank depth
  • Retrofit capable thanks to standard SAE 5-hole mounting pattern – replaces almost any other sender
  • Suitable for metal and plastic tanks with non-linear capacity
  • Precisely calibratable to tank shape and fluid type via PC and BEP software – without complex on-site filling

Measuring Principle Acoustic ultrasonic measurement (non-contact)
Measuring Range 0–2,000 mm (0–6.5 ft)
Minimum Tank Depth 200 mm
Accuracy ±2 mm over the entire measuring range
Operating Voltage 10–32 V
Current Consumption 25 mA (at 5 V signal output)
Analog Outputs 240–33 Ω / 10–180 Ω / Vetus 10–300 Ω
Digital Output 0–5 V (for BEP 600-TLM-N and compatible instruments)
Compatible Instruments BEP, Teleflex, Faria, VDO and many more
Mounting Pattern SAE 5-hole (top mount), incl. gasket and screws
Tank Materials Metal and plastic
Liquids Diesel, petrol, fresh water, grey water, black water
Chemical Resistance Petrol, diesel, water, toilet chemicals
Ambient Temperature 4–65 °C
Calibration Factory set 0–2,000 mm; Reprogramming via programming kit TS1-PK (optional)
Software BEP TS1 software (32-bit Windows application, proprietary)

BEP

Gewicht (ca.): 0.2 kg
