By BEP

BEP Disconnect Switch Panel DC 12V, 12-way, Vertical

€568,64
€568,64
Tax included.

Order in the onboard electrical system at a glance: The BEP circuit breaker panel combines twelve circuit breakers in a compact, vertically mountable aluminum housing. Each consumer circuit can be individually protected and switched on and off directly at the panel – without separate fuse holders.

Tip: The labeling fields are not included – plan appropriate labeling strips or self-adhesive labels so that each switch can be clearly identified at a glance.
brand: BEP
Availability: Low stock
SKU: OB-BB-902NMV-BEP
Product group:
category:
electrical system

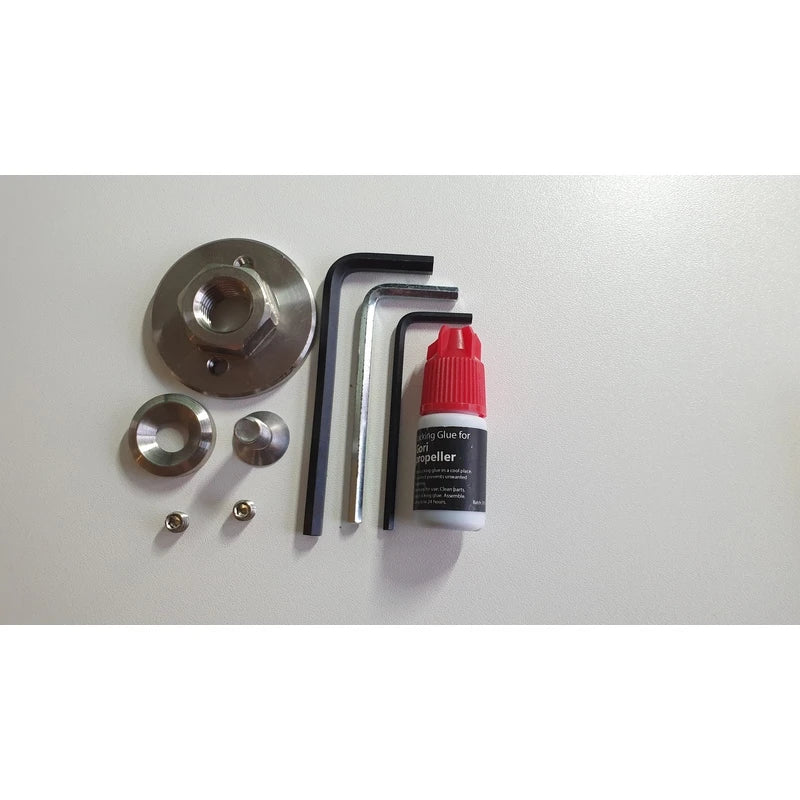

Gori PropellerGori Nut Set
Gori Mutter Set

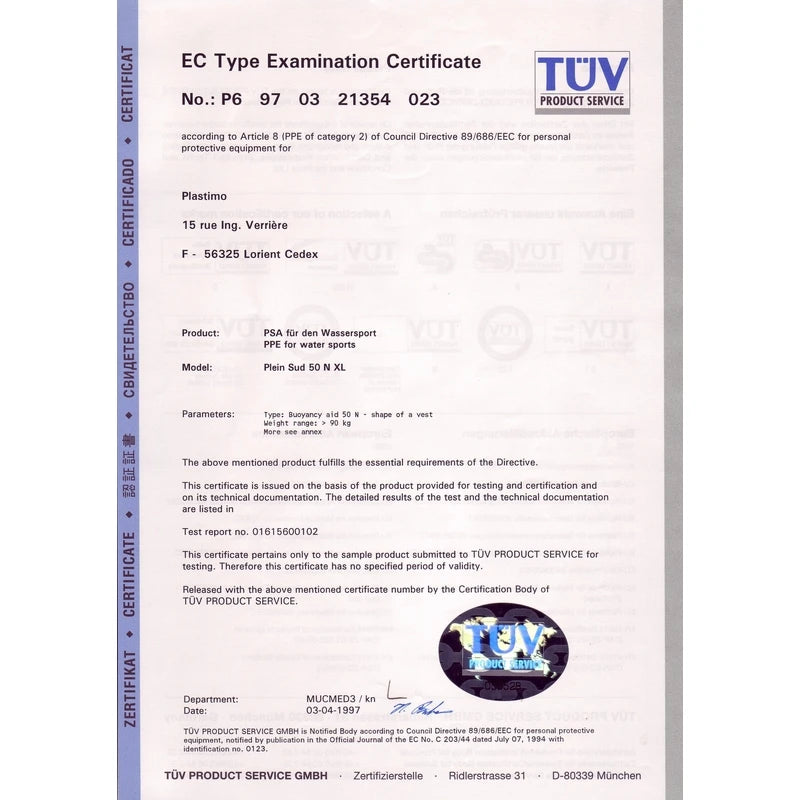

PLASTIMO Anglerweste Plein Sud
PlastimoPLASTIMO Plein Sud Angler Vest, XL, + 90 kg
BEP Trennschalter-Panel DC 12V
€568,64
€568,64

  • 12 circuit breakers in one panel - all consumer circuits centrally managed
  • Graded fusing (3 x 5 A, 4 x 10 A, 4 x 15 A, 1 x 25 A) for various consumers
  • Anti-corrosion treated aluminum panel - durable even in a salty onboard atmosphere
  • Vertical mounting position saves width and fits into narrow switchboards or navigation stations
  • CE compliant for safe use on board
  • Also available as a 24V or AC version with bipolar circuit breakers upon request

Voltage 12 V DC (24 V on request)
Number of circuit breakers 12
Fusing 3 × 5 A, 4 × 10 A, 4 × 15 A, 1 × 25 A
Switch poles Single pole (bipolar on request)
Mounting position Vertical
Housing material Aluminum, anti-corrosion treated
Dimensions 285 × 127 × 65 mm
Approval CE
AC version Available on request
Labels Not included

BEP

Gewicht (ca.): 0.7 kg
