By BEP

BEP Battery Disconnect Switches

€42,62
€42,62
Tax included.

No more compromises when installing switches: the BEP Easyfit battery disconnect switch can be recessed into panels of varying thicknesses up to 19 mm thanks to its removable threaded ring - or it can be surface-mounted just as easily. With a continuous current rating of 275 A and ignition-protected design, it is the reliable choice for any onboard electrical system.

Tip: Before installation, check the panel thickness of your switchboard - for thicknesses over 19 mm, simply switch to surface mounting without needing any additional accessories.
brand: BEP
Availability: In stock
SKU: OB-BB-701-BEP
Product group:
category:
electrical system

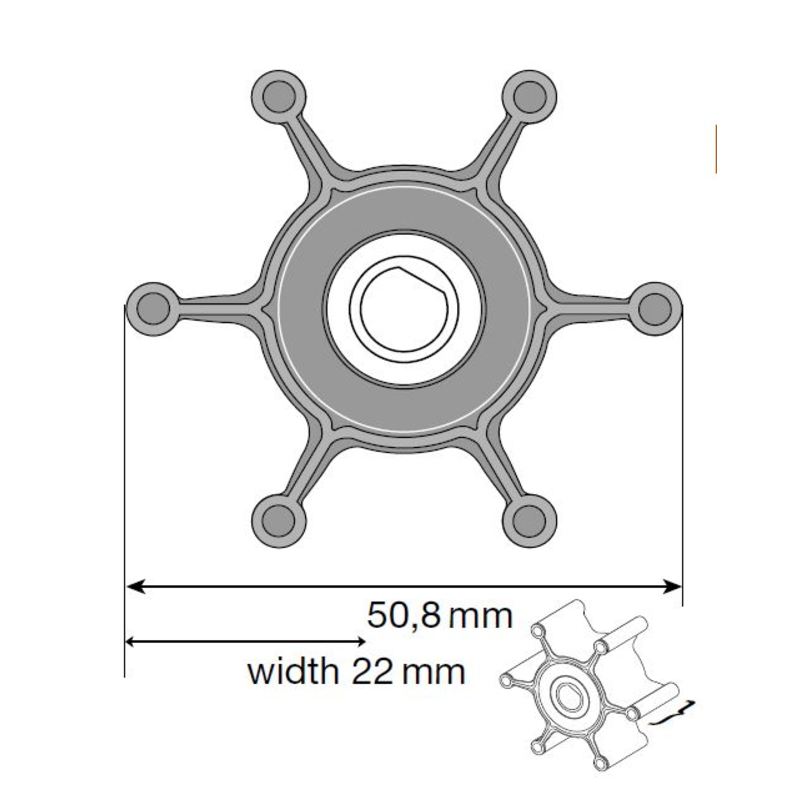

Johnson PumpJohnson Impeller for F4 Pump, Nitrile
Johnson Impeller für F4 Pumpe

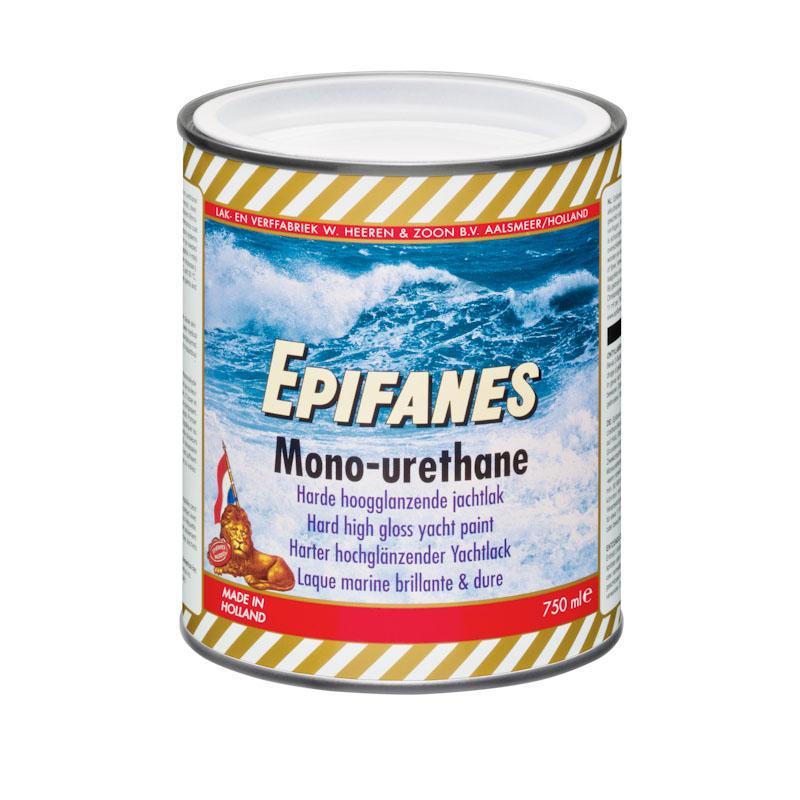

EPIFANES Mono-Urethane Weiß 3100 750ml
EpifanesEPIFANES Mono-Urethane White 3100 750ml
BEP Batterie Trennschalter
€42,62
€42,62

  • Flexible mounting – recessed in panels up to 19 mm thick or surface mounted
  • 275 A continuous rating – tested to UL 1107 for continuous operation, intermittent, and engine starting loads
  • Removable key with 45° override in the OFF position – prevents accidental switching on
  • Rear cover protects exposed terminals and meets ABYC specifications
  • Ignition protected and made from fiber-reinforced high-temperature plastic
  • Tinned copper studs and nuts – corrosion-resistant in saltwater applications

Nominal Current 275 A
Test Standard UL 1107 (BEP Marine Battery Switch Test Procedure)
Continuous Rating Test 1 hour (110% of nominal)
Intermittent Rating Test 5 minutes (110% of nominal)
Cranking Rating Test 10 seconds
Max. Terminal Temperature Rise 100 °C above ambient temperature
Mounting Options Recessed or Surface Mount
Panel Thickness (Recessed) up to 19 mm (¾")
Key removable, 45° throw past off position
Housing Fiberglass-reinforced high-temperature plastic
Bolts/Nuts Tinned copper
Ignition Protection Ignition Protected
Standard Compliance ABYC Specifications
Compatibility Identical to Hella 6EK998540001; retrofittable for European post and lever switches

BEP

Gewicht (ca.): 0.7 kg
