By Roca

Windscreen wiper motor W38 24V

€459,80 - €564,80
Tax included.

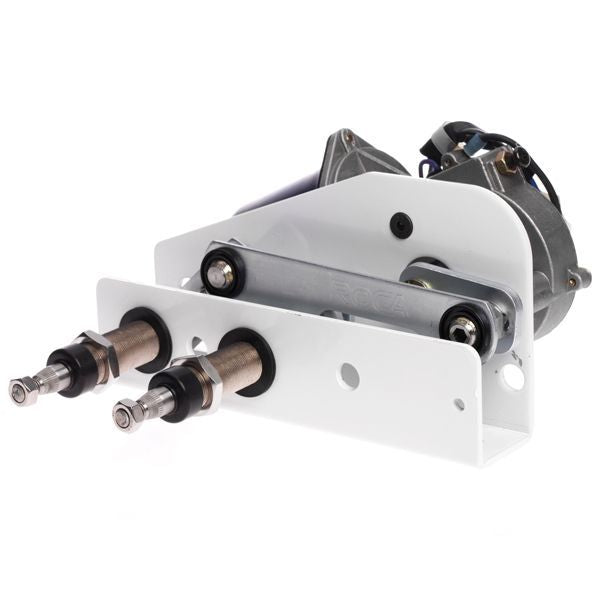

The Roca wiper motor is designed for the toughest applications.

With a torque of 38 Nm and sufficient motor power, wiper arms and blades up to 900 mm in total length can be used. The wiping angle can be adjusted from 45° to 110°. The motor has two speeds: slow (40 wipes per minute) and fast (60 wipes per minute). The automatic return to the park position is adjustable for either the right or left position.

Axle length: 40mm / max. wall thickness: 28mm or 65mm / max. wall thickness 53mm (see selection).

Regular price €459,80
Regular price €459,90 Sale price €459,80
-€0,10
brand: Roca
Availability: In stock
SKU: 1210036
Product group:
category:
Engine Technology > Windscreen Wipers
Regular price €459,80
Regular price €459,90 Sale price €459,80

  • 38 Nm Drehmoment – geeignet für Wischerarme und -blätter bis 900 mm Gesamtlänge
  • Zwei Wischgeschwindigkeiten: langsam 40 Wischungen/min, schnell 60 Wischungen/min
  • Wischwinkel stufenlos einstellbar von 45° bis 110°
  • Automatische Parklagenrückstellung – wählbar links oder rechts
  • Zwei Achslängen für unterschiedliche Wandstärken: 40 mm (bis 28 mm Wandstärke) oder 65 mm (bis 53 mm Wandstärke)

Marke / ModellRoca W38
Betriebsspannung24 V
Drehmoment38 Nm
Max. Wischerarm-/Blattlänge900 mm Gesamtlänge
Wischgeschwindigkeit langsam40 Wischungen/min
Wischgeschwindigkeit schnell60 Wischungen/min
Wischwinkel45° – 110° einstellbar
ParklagenrückstellungEinstellbar links oder rechts
Achslänge (Variante 1)40 mm – max. Wandstärke 28 mm
Achslänge (Variante 2)65 mm – max. Wandstärke 53 mm

Roca

Gewicht (ca.): 3.48 kg
