By Garmin

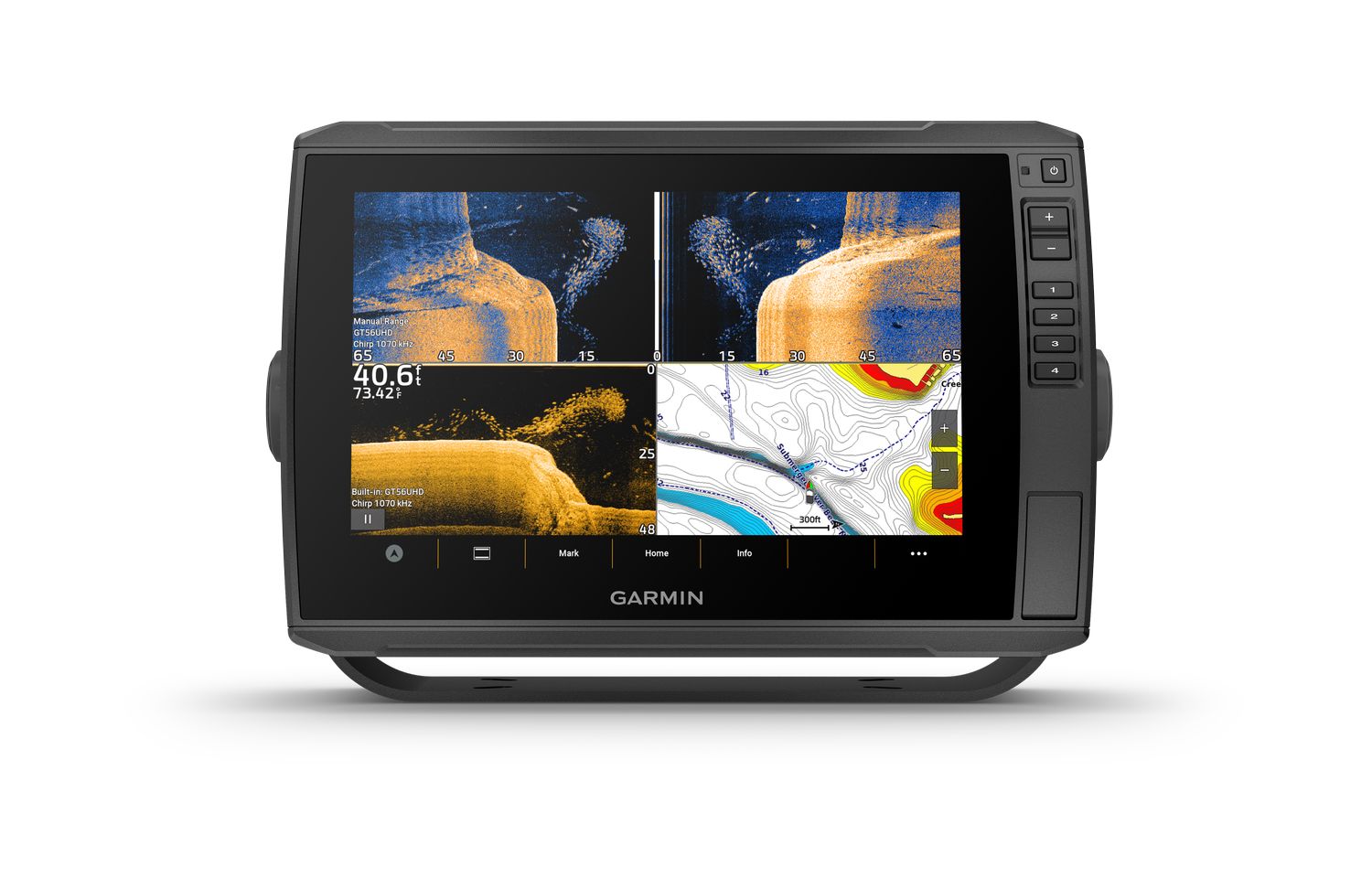

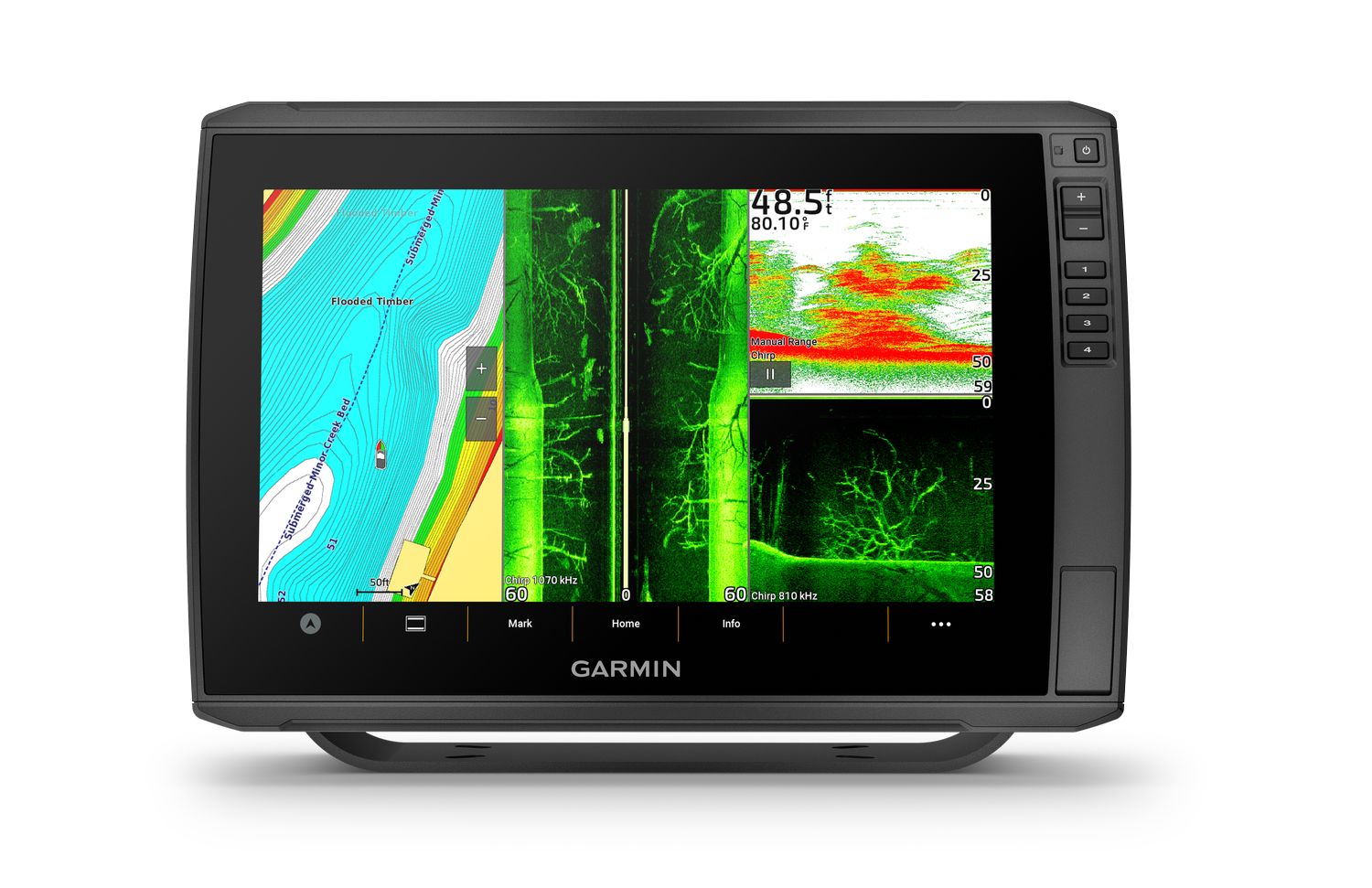

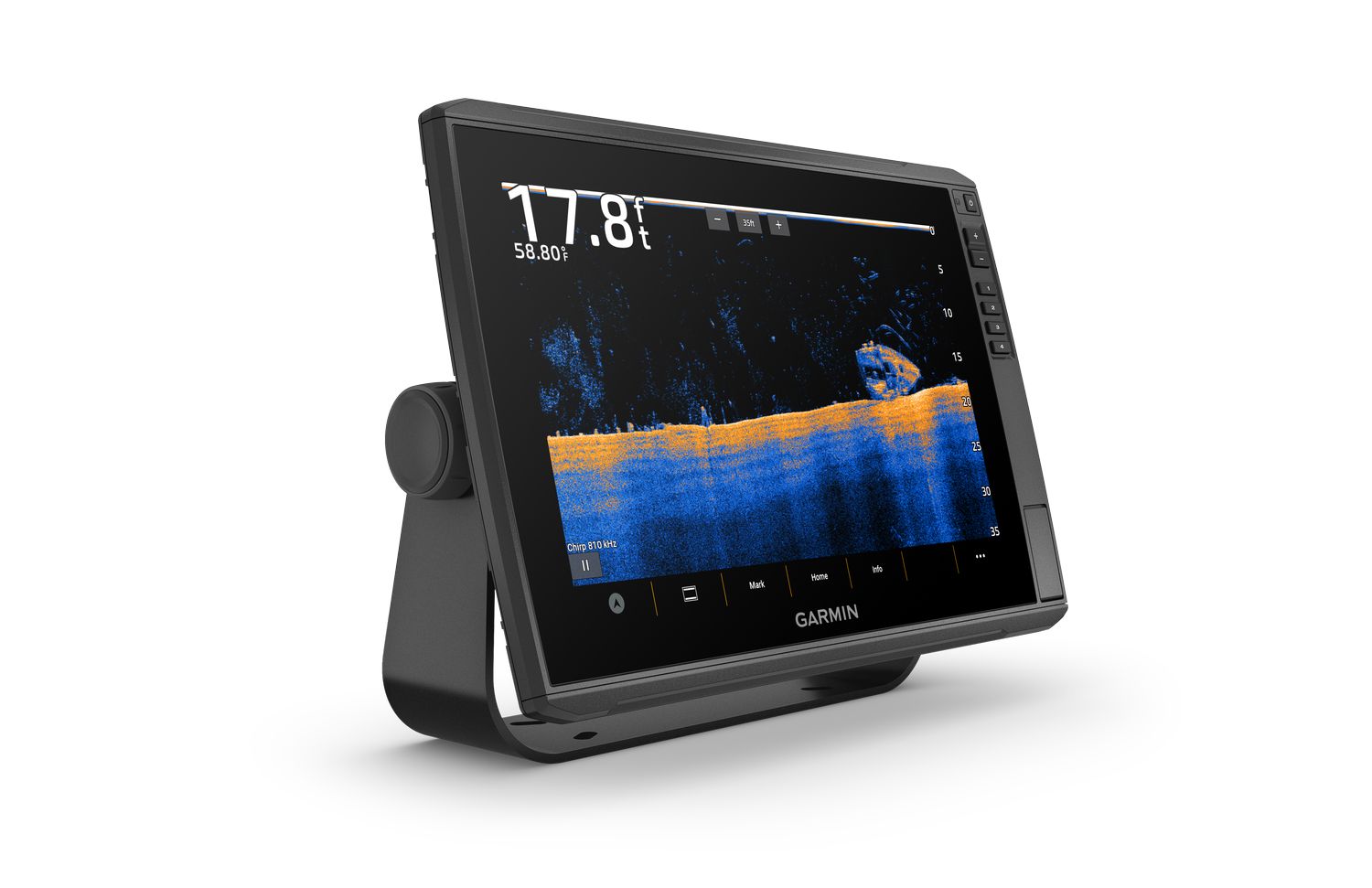

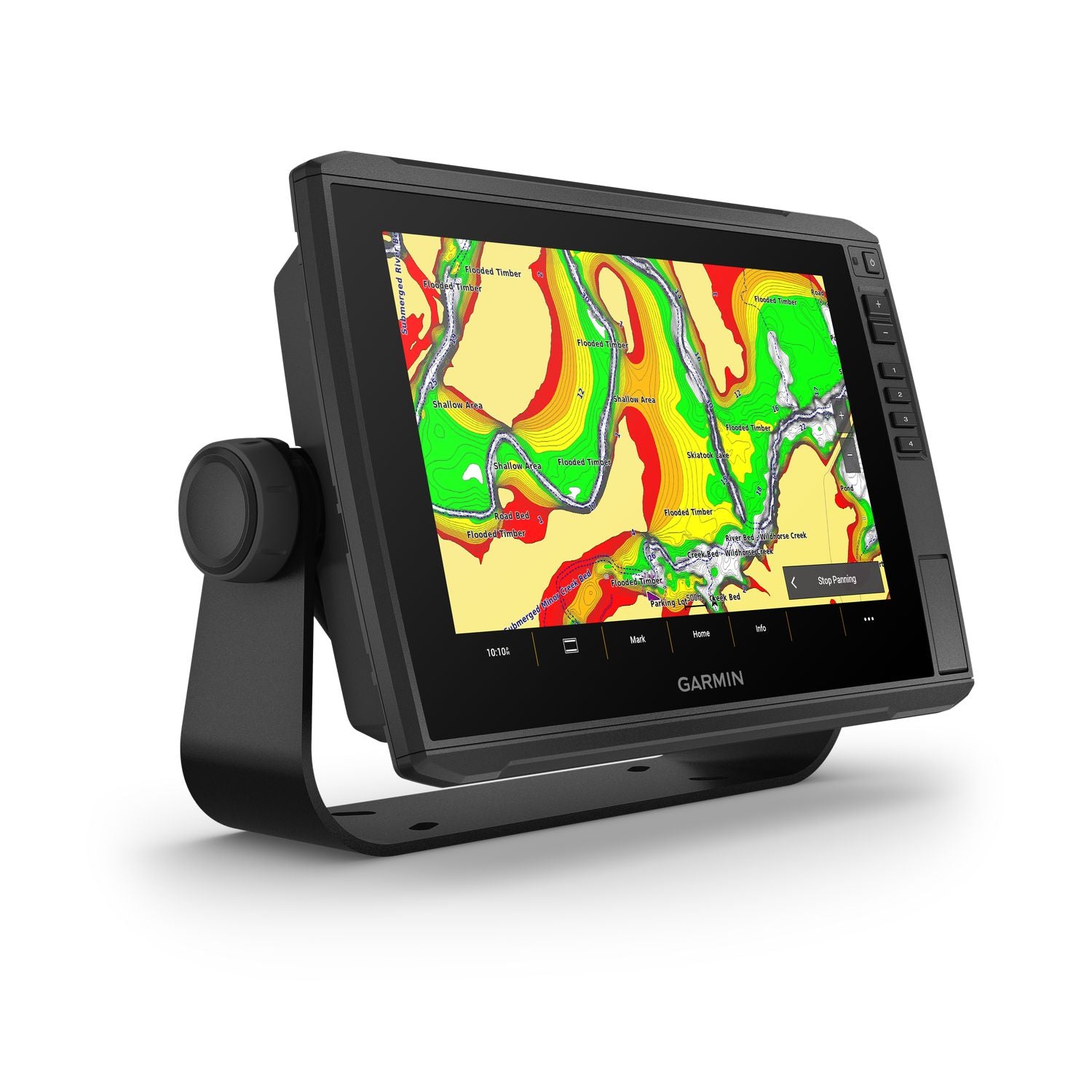

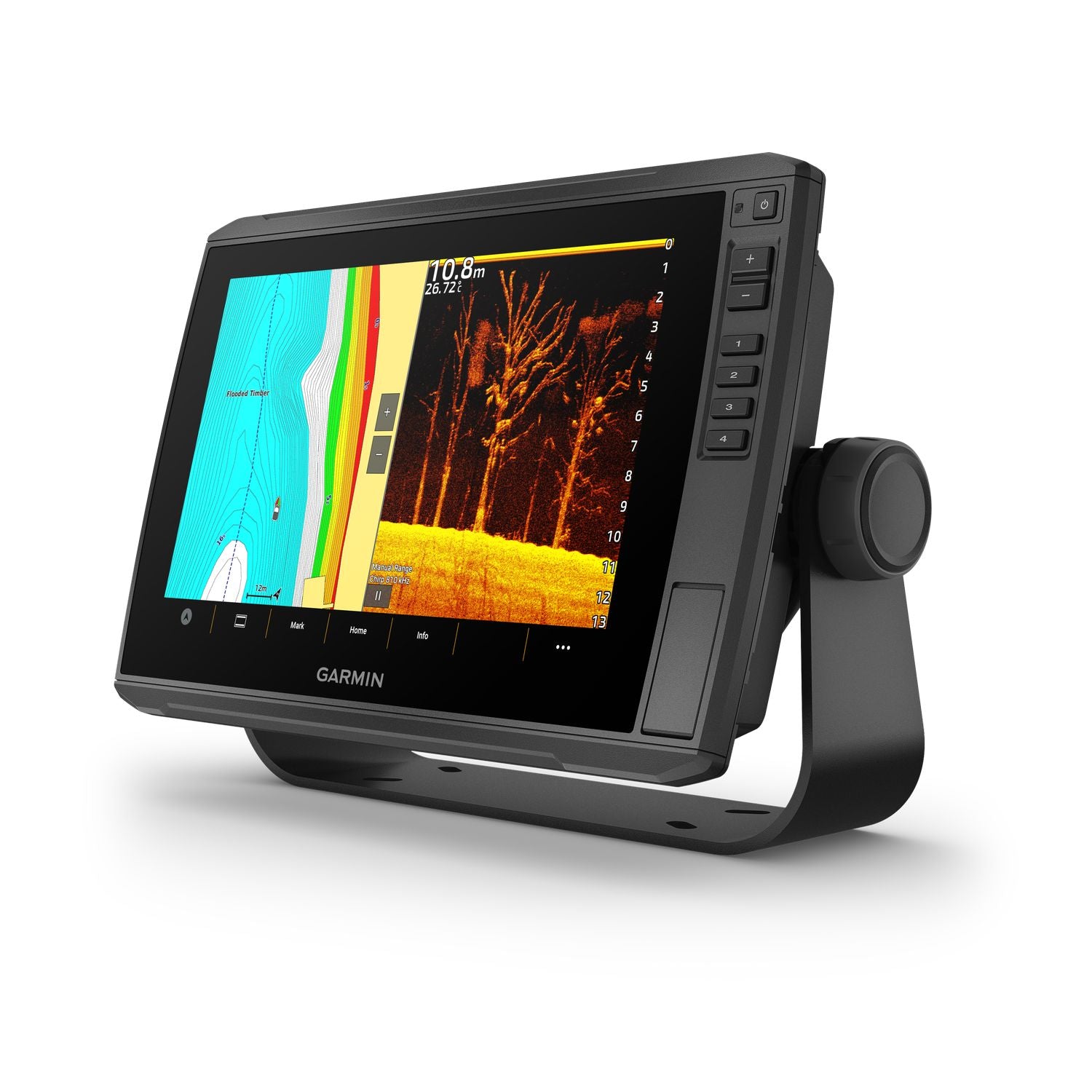

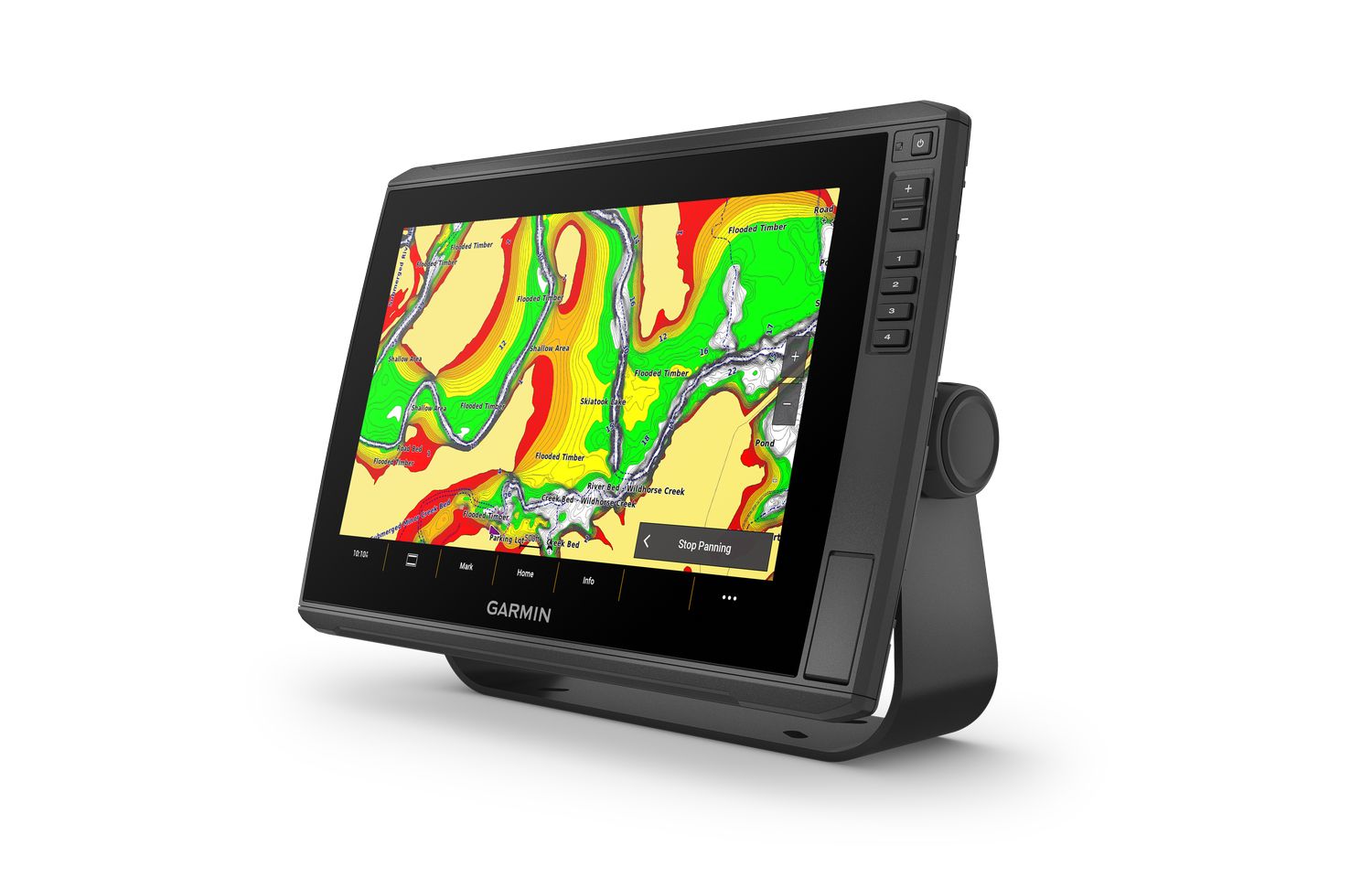

Garmin echoMAP Ultra 2 Fishfinder/Chartplotter
€1.747,90 - €2.759,90
Tax included.

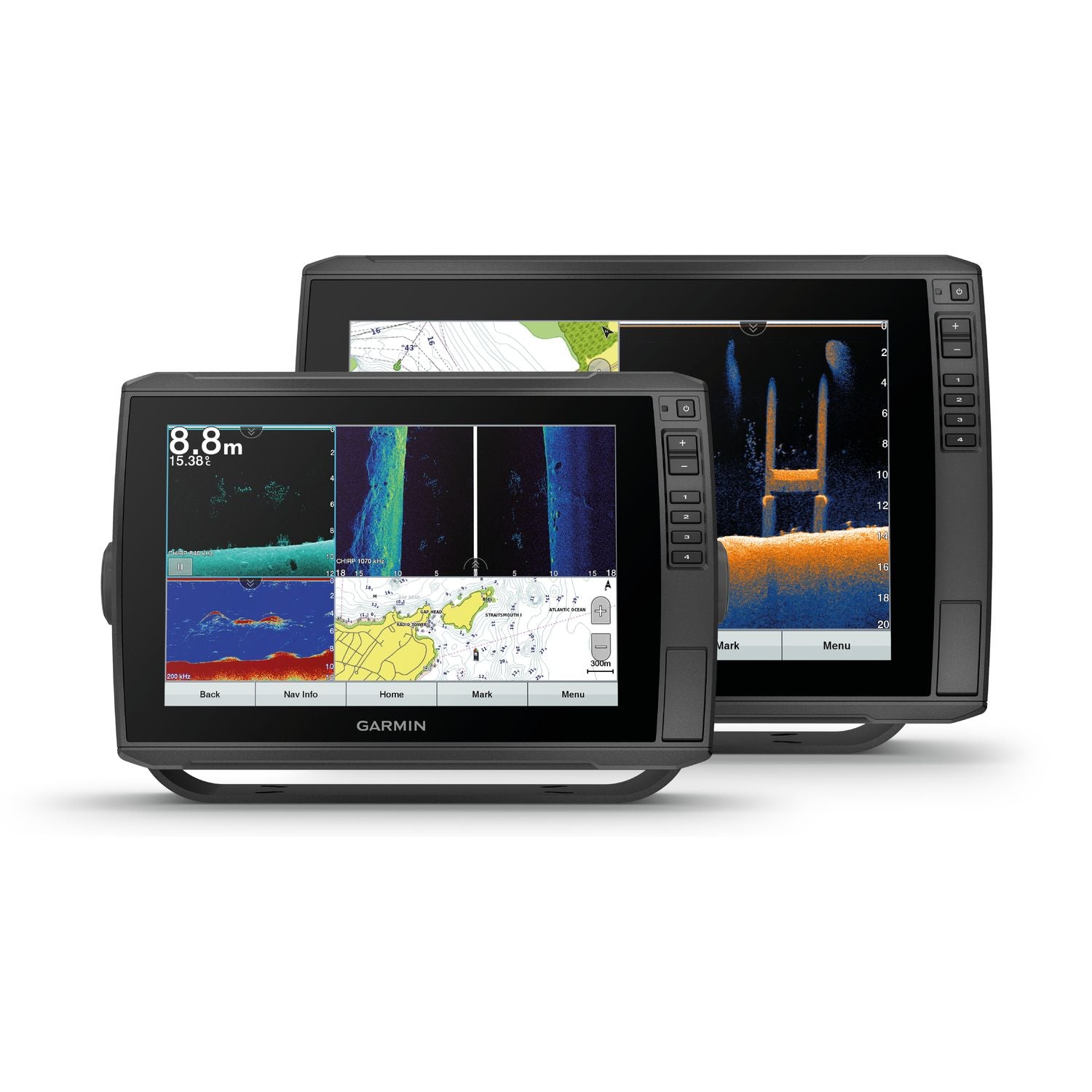

10 and 12 inch chartplotters with IPS touchscreen and keypad operation.
Supported sonar systems: LiveScope, ClearVü, SideVü, and traditional CHIRP. Sonar data, waypoints, and routes can be easily exchanged with compatible Garmin chartplotters via cable or wirelessly over the network. Compatible with Garmin Navionics+ and Garmin Navionics+ Vision charts.
Available with or without GT56 UHD-TM transducer
Scope of delivery:
- Depending on the selection, echoMAP Ultra 102sv or echoMAP Ultra 122sv.
- Depending on the selection, with or without GT56UHD-TM transducer.
- Charging/data cable
- Retaining bracket with quick release
- sunshade
- Hardware
- documentation
Technical data:
| echoMAP Ultra 2 102sv | echoMAP Ultra 2 122sv | |
| Display size, W x H | 21.7 x 13.6cm - 21.7cm diagonal | 26.1 x 16.3cm - 30.7cm diagonal |
| power supply | 9 to 18V | 9 to 18V |
| Typical current draw at 12 V DC | 2.3 A | 2.5 A |
| Maximum power consumption at 10 V DC voltage | 34 W | 36 W |
| Display resolution, W x H | 1280 x 800 pixels | 1280 x 800 pixels |
| GPS | Yes | Yes |
| Dimensions | 29.5 x 19.5 x 9.8 cm | 34.1 x 22.9 x 9.8 cm |
| Receiver | 10Hz | 10Hz |
| Waterproofing | IPX7 | IPX7 |
| Weight | 1.8kg | 2.5kg |
| Mounting options | Mounting with retaining bracket or flush | Mounting with retaining bracket or flush |
| Display type | WXGA, IPS | WXGA, IPS |
Maps & Navigation (echoMAP Ultra 2 102sv & 122sv):
| Garmin Navionics+ (Coastal Waters) | No |
| Garmin Navionics Vision+ | Yes |
| Data card support | 2 microSD memory cards |
| Garmin Navionics+ charts for inland waters and coastline | No |
| Garmin Navionics+ (inland water) | No |
| routes | 100 |
| Garmin Navionics+ | Yes |
Features ( echoMAP Ultra 2 102sv & 122s v):
| Waypoints | 5000 |
| Sailing functions | Yes |
| NMEA 0183 compatible | No |
| Integrated receiver | Yes |
| USB ports | No |
| TOPO 100K | Yes |
| Side View | Integrated, 260/455/800/1000/1200 kHz |
| Supports DSC (display of position data from DSC-enabled VHF radios) | Yes |
| Touchscreen | Yes |
| LakeVü g3 Ultra | No |
| Compatible with NMEA2000 | Yes |
| Compatible with ActiveCaptain | Yes |
| NMEA2000 connectors | 1 |
| Tide tables with optional BlueChart map | No |
| GLONASS | Yes |
| Track points | 50 |
| Panoptic sonar | Yes |
| Garmin marine network connections | 2 (large connectors) |
| LakeVü g3 | No |
| WAAS support | Yes |
| Supports GSD black box fishfinders | No |
| Maximum current draw at 12 V DC voltage | 5:00 AM |
| Compatible with Garmin SmartMode (customizable screen presets) | No |
| Route suggestion | No |
| BlueChart g3 | Yes |
| Standard cards | Yes |
| LakeVü (inland waters) | No |
| Integrated Auto Guidance+ | No |
| Echo sounder display | Yes |
| ANT+ (Connectivity) | Yes |
| Supports GCV black box fishfinders | No |
| BNC connector for external antenna | No |
| Alarm announcements | No |
| BlueChart g3 Vision | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Button operation | Touchscreen with additional button operation |
| BeiDou | Yes |
| Garmin Quickdraw Contours | Yes |
| Calls via Bluetooth® | No |
| Supports AIS (tracking the position of the target boat) | Yes |
| Supports multi-band GPS and multiple satellite systems | Yes |
| Support for raster maps | No |
| OneHelm support | No |
| ClearVü | Integrated, 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Compatible with radio remote controls | No |
| Supports radios compatible with FUSION-Link | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| Performance output | 600 W |
| 12-pin transmitter connectors | 12-pin scan echo sounder |
| BlueChart (coastal charts) | No |
| Traditional echo sounder (dual beam) | Integrated (single-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| Compatible with GRID (Garmin remote input device) | No |
