By 1852

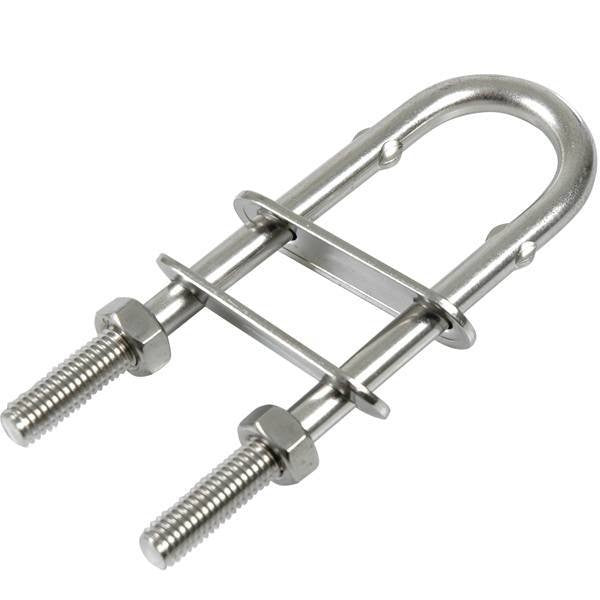

1852 Pütting stainless steel AISI 316
€3,50 - €8,90
Tax included.

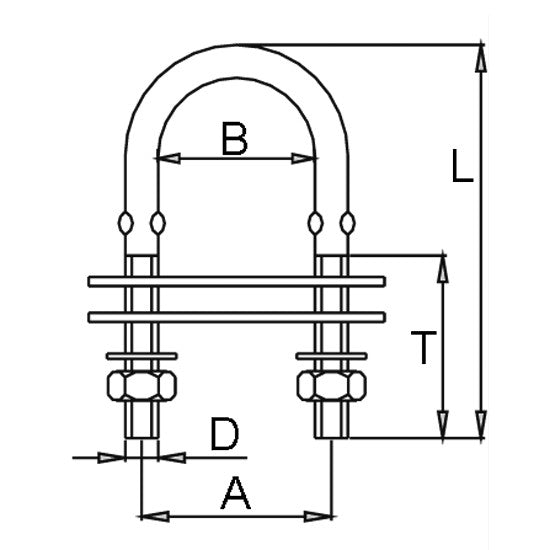

| thread | A | D | B | L | T |
| M5x40mm | 30mm | 5mm | 30mm | 800mm | 40mm |
| M6x40mm | 35mm | 6mm | 30mm | 80mm | 40mm |
| M6x45mm | 35mm | 6mm | 30mm | 90mm | 45mm |
| M8x35mm | 33mm | 8mm | 25mm | 71mm | 35mm |
| M8x50mm | 33mm | 8mm | 28mm | 90mm | 50mm |
| M10x60mm | 50mm | 10mm | 42mm | 132mm | 60mm |
Regular price
€3,50
Regular price
€3,50
Sale price
€3,50
Unit price
per
Couldn't load pickup availability
brand:
1852
Availability:
In stock
SKU:
1326622
Product group:
category:
Rigging & Deck > Deck Suction Cups & Bolts
Regular price
€3,50
Regular price
€3,50
Sale price
€3,50
- Edelstahl AISI 316 – seewasserbeständig und dauerhaft rostfrei
- Mehrere Gewinde- und Längenabmessungen von M5 bis M10 für verschiedene Rigg-Anforderungen
- Präzise gefertigte Abmessungen für sichere, spielfreie Montage
- Klassisches Pütting-Design für Wanten, Stagen und Abweiser
| Material | Edelstahl AISI 316 |
|---|---|
| Gewinde / Länge M5 × 40 mm | A = 30 mm, D = 5 mm, B = 30 mm, L = 800 mm, T = 40 mm |
| Gewinde / Länge M6 × 40 mm | A = 35 mm, D = 6 mm, B = 30 mm, L = 80 mm, T = 40 mm |
| Gewinde / Länge M6 × 45 mm | A = 35 mm, D = 6 mm, B = 30 mm, L = 90 mm, T = 45 mm |
| Gewinde / Länge M8 × 35 mm | A = 33 mm, D = 8 mm, B = 25 mm, L = 71 mm, T = 35 mm |
| Gewinde / Länge M8 × 50 mm | A = 33 mm, D = 8 mm, B = 28 mm, L = 90 mm, T = 50 mm |
| Gewinde / Länge M10 × 60 mm | A = 50 mm, D = 10 mm, B = 42 mm, L = 132 mm, T = 60 mm |
1852
Gewicht (ca.): 0.14 kg
