By Selden

Seldén BBB single-disc horizontal

€12,05 - €41,90
Tax included.

Ball-bearing blocks for dynamic loads.

  • Acetal discs
  • Axles made of high-strength, stainless steel
  • Housing made of composite material
  • Stainless steel balls with acetal spacers to prevent friction between the steel balls.
Designation discs
Ø mm		 workload
kg		 Breaking load
kg		 max. linen-
Ø mm		 screws
BBB20, single-disc with guide block 20 100 200 6 M4*
BBB30, single disc with guide block 30 200 400 8 M5*
BBB40, single disc with guide block 40 250 500 10 M5*
BBB60, single disc with guide block 60 350 1,000 10 M6*

*Screw size, screws are not included.
€41,90
€41,90 €41,90
brand: Selden
Availability: Low stock
SKU: SE-406-601-15R
Product group:
category:
Rig & Deck > Blocks > Ball Bearing Blocks
SeldenSeldén BBB triple disc with clamp and lower bracket
Seldén BBB dreischeibig mit Klemme und Unterbügel

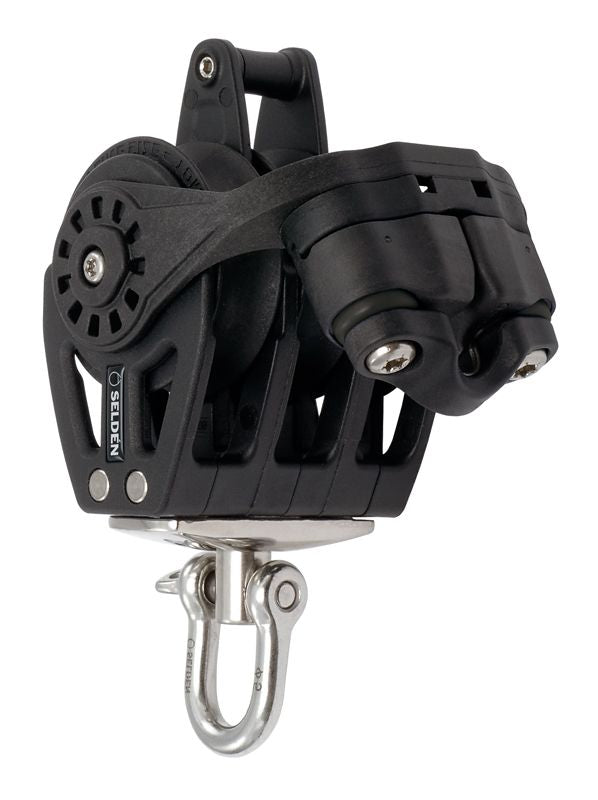

Seldén BBB dreischeibig mit Wirbel
SeldenSeldén BBB three-disc clamp with swivel, clamp and lower bail
Seldén BBB einscheibig liegend
€41,90
€41,90 €41,90

Ball-bearing blocks for dynamic loads.

  • Acetal discs
  • Axles made of high-strength, stainless steel
  • Housing made of composite material
  • Stainless steel balls with acetal spacers to prevent friction between the steel balls.
Designation discs
Ø mm		 workload
kg		 Breaking load
kg		 max. linen-
Ø mm		 screws
BBB20, single-disc with guide block 20 100 200 6 M4*
BBB30, single disc with guide block 30 200 400 8 M5*
BBB40, single disc with guide block 40 250 500 10 M5*
BBB60, single disc with guide block 60 350 1,000 10 M6*

*Screw size, screws are not included.
