By Selden

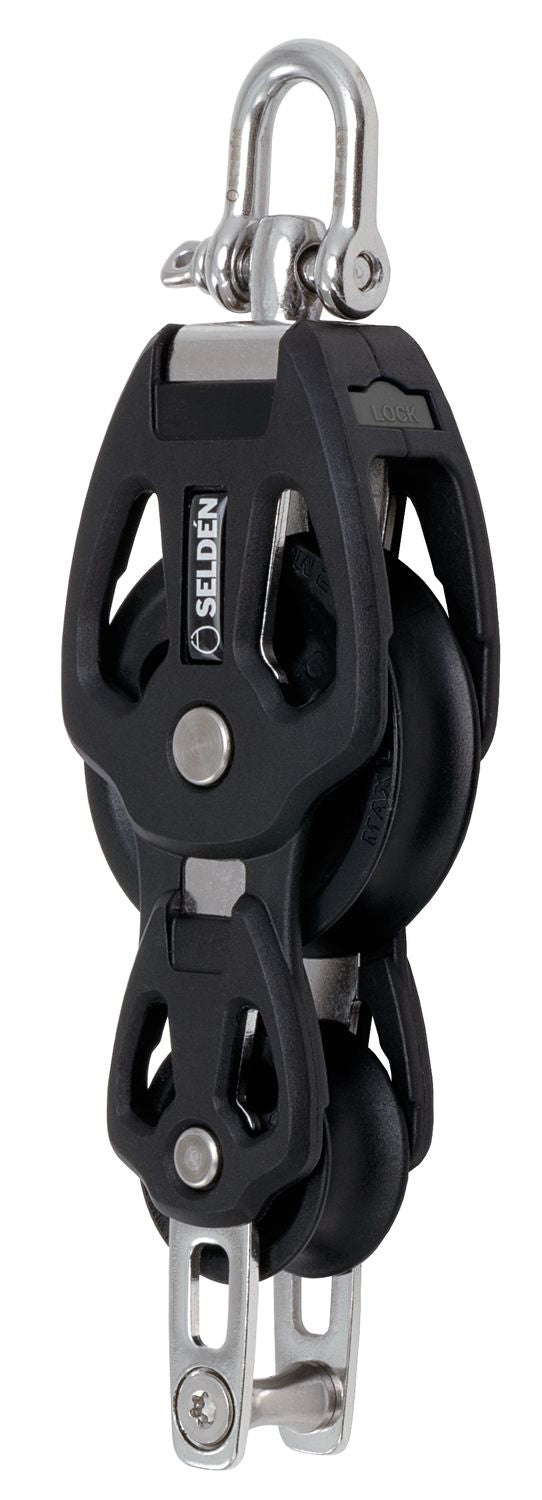

Seldén PBB Violin Block with Underbar

€69,80 - €219,80
Tax included.

Seldén PBB sliding bearing blocks for heavy loads, violin block with underbrace

  • Acetal discs
  • Axles made of high-strength, stainless steel
  • Housing made of composite material
  • Vertebrae can be fixed in a longitudinal or transverse position.
Designation Article number Disc diameter mm Working load kg Breaking load kg max. linen Ø mm Shackle diameter (mm) Pin diameter mm
PBB50 405-001-12 50 650 1300 12 5 5
PBB60 406-001-12 60 1000 2200 14 6 6
PBB70 407-001-12 70 1500 3300 14 6 8
PBB80 408-001-12 80 2000 4000 16 8 10

€69,80
€69,90 €69,80
-€0,10
brand: Selden
Availability: Low stock
SKU: SE-405-001-12
Product group:
category:
Rig & Deck > Blocks > Blocks with sliding bearings
SeldenSeldén Single-Disc Plain Bearing Block PBB100 with Swivel Shackle
Seldén Einscheibiger Gleitlagerblock PBB100 mit Wirbelschäkel
Seldén PBB einscheibig mit Klemme und Unterbügel
SeldenSeldén PBB single disc with clamp and lower bracket
Seldén PBB Violinblock mit Unterbügel
€69,80
€69,90 €69,80

Seldén PBB sliding bearing blocks for heavy loads, violin block with underbrace

  • Acetal discs
  • Axles made of high-strength, stainless steel
  • Housing made of composite material
  • Vertebrae can be fixed in a longitudinal or transverse position.
Designation Article number Disc diameter mm Working load kg Breaking load kg max. linen Ø mm Shackle diameter (mm) Pin diameter mm
PBB50 405-001-12 50 650 1300 12 5 5
PBB60 406-001-12 60 1000 2200 14 6 6
PBB70 407-001-12 70 1500 3300 14 6 8
PBB80 408-001-12 80 2000 4000 16 8 10
